Q30900GPR-S20 图片 11 / 8

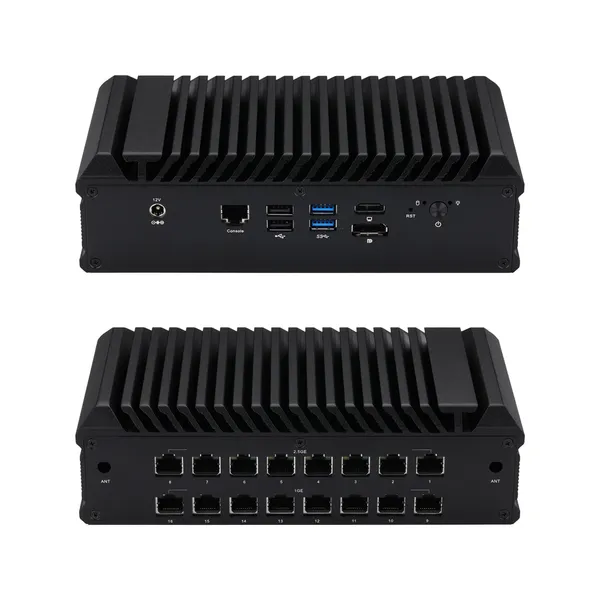

Mini PC Q30900GPR S20 Series

型号: Q30900GPR-S20

网口总数16
网口速率1G RJ45
串口数1

主要规格

CPU
Whiskey Lake / Coffee Lake / Comet lake
内存
DDR4 SO-DIMM · 最大 32GB
网口
16
存储
mSATA, SATA
Q30912GPRQ30921GPRQ30931GPRQ30951GPRQ30971GPRQ30952GPRQ31011GPRQ31012GPRQ31021GPRQ31031GPRQ31051GPRQ31071GPRQ31072GPRQ31073GPRIntelWhiskey LakeCoffee LakeComet lakeCeleronPentiumCore i3Core i5Core i74205U4305U5405U8145U8265U8365U8565U8665U8140U8260U5205U5305U6405U10110U10210U10310U10510U10610U10710U10810U

Main Features

  • Intel 8 th Whiskey Lake-U Processor
  • Intel 8 th Coffee Lake-U Processor
  • Intel 10 th Comet lake-U Processor
  • 1 × Display Port, 1 × HDMI
  • 2 × USB 3.0, 2 × USB 2.0
  • 1 × M.2, 2 × Mini PCIe, 1 × SATA 3.0
  • 1 × RS-232 (RJ-45)
  • 8 × Realtek Gigabit LAN
  • 8 × Realtek RTL8153B Gigabit LAN

Processor System

CPU• Intel 8thWhiskey Lake-U Processor • Intel 8thCoffee Lake-U Processor • Intel 10thComet lake-U Processor
CPU TDPBy CPU
Memory1 ×DDR4SO-DIMM Socket (Up to32G,2133/2400MHz)
ChipsetBy CPU
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset8 × Realtek Gigabit LAN 8 × Realtek RTL8153B Gigabit LAN
Watch DogYes

Front I/O

Power Button1 × Power Button,1 × CMOS Clear Button
LED1 ×Power LED,1 ×HDD LED
USB2 ×USB 3.0,2 ×USB 2.0
Serial Port1 ×RS-232Port(RJ-45)
Power1 ×DC Jack
Video Output1 ×HDMI,1 ×Display Port

Rear I/O

LAN8 × Realtek Gigabit LAN 8 × Realtek RTL8153B Gigabit LAN
Serial PortNo

Storage

Type1 ×2.5-inch HDD/SSD

Expansion

Mini PCIe1 ×Mini PCIe Full-length for 4G Half-length for Wi-Fi (Default Only Support USB Device)
M.21 ×M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot1
AutoStart JumperYes,1 ×3Pin, Pitch 2.0mm
CMOS Clear JumperYes,1 ×3Pin, Pitch 2.0mm
GPIO1,2 ×5Pin, Pitch 2.0mm

Power

Power Adapter12V3A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension221 × 121 ×62mm
Weight1.56kg
MountingVESA Mounting Bracket
Packaging Dimension285 × 260 ×93mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSWindows 10, Linux

标准包装清单

  • Q30900GPR-S20 迷你电脑主机 × 1
  • 电源适配器 × 1
  • 电源线 × 1
  • VESA 挂架 × 1
  • 螺丝包 × 1

* 实际包装内容以出货为准，如有变更恕不另行通知。

订购和规格选型

CPUTDP主频核显缓存订购编码核心/线程规格书
Celeron 4305U 15W 2.2GHz Intel UHD Graphics 2M Q30912GPR-S20 2 / 2
Pentium 5405U 15W 2.3GHz Intel UHD Graphics 2M Q30921GPR-S20 2 / 4
Core i3 8145U 15W 2.1GHz ~ 3.9GHz Intel UHD Graphics 4M Q30931GPR-S20 2 / 4
Core i5 8265U 15W 1.6GHz ~ 3.9GHz Intel UHD Graphics 6M Q30951GPR-S20 4 / 8
Core i7 8565U 15W 1.8GHz ~ 4.6GHz Intel UHD Graphics 8M Q30971GPR-S20 4 / 8
Core i5 8260U 15W 1.6GHz ~ 3.9GHz Intel UHD Graphics 620 6M Q30952GPR-S20 4 / 8
Celeron 5205U 15W 1.9GHz Intel UHD Graphics 2M Q31011GPR-S20 2 / 2
Celeron 5305U 15W 2.3GHz Intel UHD Graphics 2M Q31012GPR-S20 2 / 2
Pentium 6405U 15W 2.4GHz Intel UHD Graphics 2M Q31021GPR-S20 2 / 4
Core i3 10110U 15W 2.1GHz ~ 4.1GHz Intel UHD Graphics 4M Q31031GPR-S20 2 / 4
Core i5 10210U 15W 1.6GHz ~ 4.2GHz Intel UHD Graphics 6M Q31051GPR-S20 4 / 8
Core i7 10610U 15W 1.8GHz ~ 4.9GHz Intel UHD Graphics 8M Q31071GPR-S20 4 / 8
Core i7 10810U 15W 1.1GHz ~ 4.9GHz Intel UHD Graphics 12M Q31072GPR-S20 6 / 12
Core i7 10710U 15W 1.1GHz ~ 4.7GHz Intel UHD Graphics 12M Q31073GPR-S20 6 / 12
Core i7 10510U 15W 1.8GHz ~ 4.9GHz Intel UHD Graphics 8M Q31074GPR-S20 4 / 8
