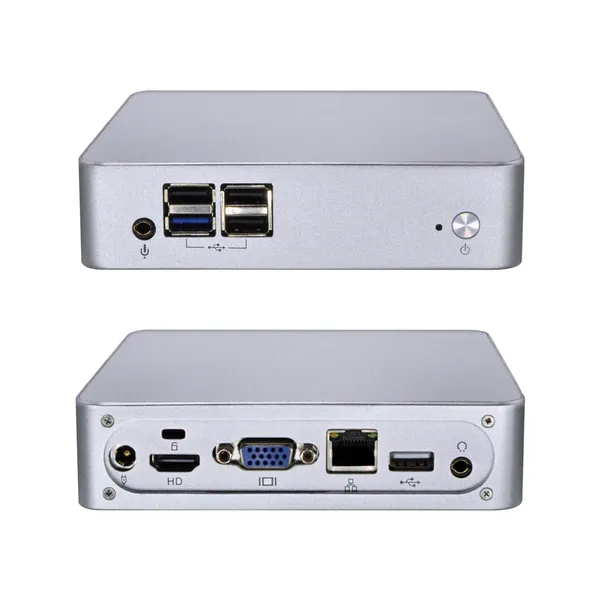

Mini PC Q30300N S03 Series

Name: Mini PC Q30300N S03 Series
Brand: Qotom
SKU: Q30300N-S03

型号: Q30300N-S03

网口总数1

网口速率1G RJ45

串口数1

主要规格

CPU: Ivy Bridge
内存: DDR3L SO-DIMM · 最大 8GB
网口: 1
存储: mSATA, SATA

Q107N Q100N Q210N Q220N Q30311N Q30312N Q30331N Q30351N Intel Ivy Bridge Celeron Pentium Core i3 Core i5 Core i7 1007U 1017U 1037U 3217U 3227U 3317U 3427U 3337U 3537U

Main Features

Intel 3 rd Ivy Bridge Processor
1 × VGA,1 × HDMI
5 × USB 2.0
1 × Mini PCIe,1 × mSATA
1 × Realtek Gigabit LAN

相关产品

Mini PC Q10100N S07 Series

Q10100N-S07

Mini PC Q30600S S12 Series

Q30600S-S12

Mini PC Q10500N S11 Series

Q10500N-S11

Mini PC Q10500S S07 Series

Q10500S-S07

Mini PC Q10500C S11 Series

Q10500C-S11

Mini PC Q30600SN S10 Series

Q30600SN-S10

CPU	Intel 3rdIvy Bridge Processor
CPU TDP	By CPU
Memory	1 ×DDR3 SO-DIMM Socket(Up to 8G, 1333/1600MHz)
Chipset	By CPU
Graphics	By CPU
LAN Chipset	1 ×Realtek Gigabit LAN
Audio	Realtek HD Audio
Watch Dog	No

Power Button	1
LED	1 ×Power LED
USB	4 ×USB 2.0
Serial Port	0
Audio	1 (Mic-in)

Power	1 ×DC Jack
LAN	1 ×Realtek Gigabit LAN
USB	1 ×USB 2.0
Audio	1 (Line-out)
Video 0utput	1 ×HDMI,1 ×VGA
Serial Port	0

mSATA	1 ×Full-length Mini PCIe for SSD
Mini PCIe	1 ×Half-length Mini PCIe for Wi-Fi
SIM Card Slot	0
AutoStart Jumper	0
DC-in	0
VGA	0
GPIO	0

Power Adapter	12V4A
DC Jack	5.5mm, 2.5mm

整机

主板

Mini PC Q30300N S03 Series

主要规格

Main Features

Processor System

Front I/O

Rear I/O

Storage

Expansion

Power

Environmental

Mechanical

OS Support

标准包装清单

订购和规格选型

相关产品

Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%

Material	Aluminium Alloy
Dimension	136 × 131 ×33mm
Weight	0.62kg
Mounting	VESA Mounting Bracket
Packaging Dimension	261 × 218 ×75mm
Kensington Lock	Support
Cooling Mode	Fan

CPU	TDP	主频	核显	缓存	旧型号	订购编码	核心/线程
Celeron 1007U	17W	1.5GHz	Intel HD Graphics	2M	Q107N	Q30311N-S03	2 / 2
Celeron 1037U	17W	1.8GHz	Intel HD Graphics	2M	Q100N	Q30312N-S03	2 / 2
Core i3 3217U	17W	1.8GHz	Intel HD Graphics 4000	3M	Q210N	Q30331N-S03	2 / 4
Core i5 3317U	17W	1.7GHz ~ 2.6GHz	Intel HD Graphics 4000	3M	Q220N	Q30351N-S03	2 / 4
