Q10900XPG-S04 图片 11 / 7

Mini PC Q10900XPG S04 Series

型号: Q10900XPG-S04

网口总数2
网口速率2.5G RJ45
串口数6

主要规格

CPU
Alder lake N / Twin Lake
内存
DDR5 SO-DIMM · 最大 48GB
网口
2
存储
M.2 Mkey, SATA

Main Features

  • Intel Alder Lake-N Processor
  • Intel Twin Lake-N Processor
  • 2 × HDMI
  • 1 × USB 3.0, 7 × USB 2.0, 6 × RS-232
  • 3 × M.2, 1 × SATA 3.0
  • 2 × Realtek 2.5G LAN

Processor System

CPUIntel Alder Lake-N Processor Intel Twin Lake-N Processor
CPU TDPBy CPU
Memory1 ×DDR5 SO-DIMM Socket (Up to 48G)
ChipsetBy CPU
GraphicsBy CPU
AudioRealtek HD Audio
Watch DogYes

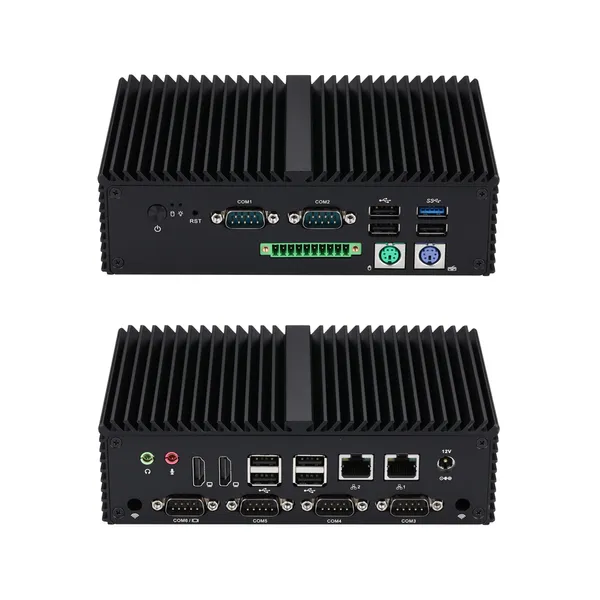

Front I/O

Power Button1 ×Power Button,1 ×Reset Button
LED1 ×Power LED,1 ×HDD LED
USB3 × USB 2.0, 1 × USB 3.0
Serial Port2 × RS-232 (COM1/2 can be set up as RS-485)
PS/22
GPIO4 DIs/4DOs

Rear I/O

Power1 ×DC Jack
LAN2 ×Realtek 2.5G LAN
USB4 ×USB 2.0
Audio1 × Mic-in, 1 × Line-out
Display2 × HDMI
Serial Port4 × RS-232

Storage

Type1 ×2.5-inch HDD/SSD

Expansion

M.21 ×M.2 for SSD (M key, Type:2280,PCIe3.0 ×1)
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.21 ×M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot1
AutoStart JumperYes,1 ×3Pin, Pitch 2.54mm
GPIO1,2 ×5Pin, Pitch 2.0mm
VGA0
Serial Port0
Clear CMOSJumperYes,1 ×3Pin, Pitch 2.54mm
Front Panel Header1, 2 × 5Pin, Pitch 2.0mm

Power

Power Adapter12V3A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension178 × 111 ×52mm
Weight0.86kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 ×75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSUEFI Windows 10, UEFI Linux

标准包装清单

  • Q10900XPG-S04 迷你电脑主机 × 1
  • 电源适配器 × 1
  • 电源线 × 1
  • VESA 挂架 × 1
  • 螺丝包 × 1

* 实际包装内容以出货为准,如有变更恕不另行通知。

订购和规格选型

订购编码代号处理器类型处理器编号核心/线程主频缓存核显TDP规格书
Q10911XPG-S04 Alderlake-N - N50 2 / - 3.4GHz 6M Intel UHD Graphics 6W
Q10921XPG-S04 Alder lake-N - N97 4 / - 3.6GHz 6M Intel UHD Graphics 12W
Q10922XPG-S04 Alder lake-N - N100 4 / 4 3.4GHz 6M Intel UHD Graphics 6W
Q10923XPG-S04 Alder lake-N - N200 4 / 4 3.7GHz 6M Intel UHD Graphics 6W
Q10924XPG-S04 Alder lake-N - X7425E 4 / 4 3.4GHz 6M Intel UHD Graphics 12W
Q10931XPG-S04 Alder lake-N Corei3 N300 8 / 8 3.8GHz 6M Intel UHD Graphics 7W
Q10932XPG-S04 Alder lake-N Core i3 N305 8 / 8 3.8GHz 6M Intel UHD Graphics 15W
Q11022XPG-S04 Twin Lake-N - N150 4 / 4 3.6GHz 6M Intel Graphics 6W
Q11023XPG-S04 Twin Lake-N - N250 4 / 4 3.8GHz 6M Intel Graphics 6W
Q11031XPG-S04 Twin Lake-N Corei3 N350 8 / 8 3.9GHz 6M Intel Graphics 7W
Q11032XPG-S04 Twin Lake-N Core i3 N355 8 / 8 3.9GHz 6M Intel Graphics 15W

暂无文档和驱动下载
