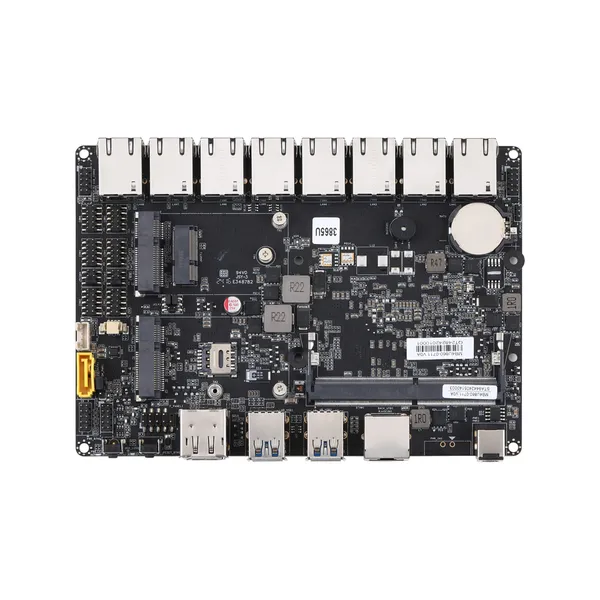

MB4U86R-0600-D3 图片 11 / 6

Motherboard MB4U86R-0600-D3 Series

型号: MB4U86R-0600-D3

网口总数8
网口速率1G RJ45
串口数1

主要规格

CPU
Skylake / Kaby Lake / Kaby Lake-R
内存
DDR3L SO-DIMM · 最大 8GB
网口
8
存储
mSATA, SATA
主板尺寸
165x115
MB4U86R-0712 D3MB4U86R-0731 D3MB4U86R-0751 D3MB4U86R-0771 D3MB4U86R-0811 D3MB4U86R-0821 D3MB4U86R-0831 D3MB4U86R-0851 D3MB4U86R-0871 D37600U3867U4417U8130U8250U8550U8350U8650UIntel3865U3965U4415U6300U6600U6200U6500U7200U7500U7560U7660U7130U7100U6006USkylakeKaby Lake3855U3955U6100U7020UKaby Lake-R4405UCore i3Core i5Core i7PentiumCeleronMB4U86R-0651 D3MB4U86R-0671 D3MB4U86R-0711 D3MB4U86R-0611 D3MB4U86R-0612 D3MB4U86R-0631 D3

Main Features

  • Intel 6 th Skylake-U Processor
  • Intel 7 th Kabylake-U Processor
  • Intel 8 th Kabylake-R-U Processor
  • 1 × Display Port, 1 × HDMI, 1 × VGA (Option)
  • 4 × USB 3.0, 1 × SATA 3.0, 6 × RS-232
  • 1 × M.2, 1 × mSATA,1 × Mini-PCIe
  • 8 × Realtek Gigabit LAN

Processor System

CPU• Intel6thSkylake-U Processor • Intel7thKabylake-U Processor • Intel8thKabylake-R-U Processor
ChipsetBy CPU
Dimension165 × 115mm
Core NumberBy CPU
Max. SpeedBy CPU
L2 CacheBy CPU
BIOSUEFI

Memory

TechnologyDDR3L 1333/1600MHz SDRAM
Max.32GB
Socket1 × SO-DIMM

Graphics

ControllerBy CPU
VRAMShared Memory
Display1 × Display Port 1 × HDMI 1 × VGA(Header)
Multi DisplayYes

Ethernet

Interface10/100/1000Mbps
Controller8 × Realtek Gigabit LAN
Connector8 × RJ-45

Audio

ControllerNo

Front I/O

Power Button1 × Power Button, 1 × Reset Button
LED1 × Power LED, 1 × HDD LED
USB4 × USB 3.0,2 × USB 2.0(Option)
Serial Port6, 2 × 5Pin, Pitch 2.0mm, COM3/4 Support 5V/12V (Option)
Serial Port1 × RS-232 (RJ-45)
VGA Header1, 2 × 5Pin, Pitch 2.0mm (Option)
RS-485COM3/4 can be set up as RS-485 (Option)
SATA1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
Clear CMOS JumperYes, 1 × 3Pin, Pitch 2.0mm
GPIO Header1, 2 × 5Pin, Pitch 2.0mm
USB 2.0 Header2, 2 × 5Pin, Pitch 2.0mm
Front Panel Header1, 2 × 5Pin, Pitch 2.54mm
Power Header1, Phoenix 1 × 2Pin, Pitch 3.5mm (Option)
Display1 × Display Port,1 × HDMI
DC-IN1
OutputFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min
Ethernet8

Storage

Max. Data Transfer RateSATA 3.0 (6.0Gb/S)

Expansion

mSATA1 × Full-length Mini PCIe for SSD
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
Mini-PCIe1 × Mini PCIe, Full-lengthMini PCIefor 4G by Default Half-length Mini PCIe for Wi-Fi(Only for USB Device,Option)

Power

Input PWR12V DC in, 5.5mm/2.5mm
Operating Temperature0-50℃

OS Support

OSWindows 10, Linux Windows 7 (Only for 6th Gen Skylake)
AccessoriesCable for HDD

包装清单

  • Motherboard × 1
  • SATA Combo Cable × 1

* 实际包装内容以出货为准，如有变更恕不另行通知。

订购和规格选型

TDPCPU主频核显缓存旧型号订购编码核心/线程规格书
15W Celeron 3855U 1.6GHz Intel HD 510 2M MB4U86R-0611 D3-0600 D3 2 / 2
15W Celeron 3955U 2.0GHz Intel HD 510 2M MB4U86R-0612 D3-0600 D3 2 / 2
15W Core i3 6100U 2.3GHz Intel HD 520 3M MB4U86R-0631 D3-0600 D3 2 / 4
15W Core i5 6200U 2.3GHz ~ 2.8GHz Intel HD 520 3M MB4U86R-0651 D3-0600 D3 2 / 4
15W Core i7 6500U 2.5GHz ~ 3.1GHz Intel HD 520 4M MB4U86R-0671 D3-0600 D3 2 / 4
15W Celeron 3865U 1.8GHz Intel HD 610 2M MB4U86R-0711 D3-0600 D3 2 / 2
15W Celeron 3965U 2.2GHz Intel HD 610 2M MB4U86R-0712 D3-0600 D3 2 / 2
15W Core i3 7100U 2.4GHz Intel HD 620 3M MB4U86R-0731 D3-0600 D3 2 / 4
15W Core i5 7200U 2.5GHz ~ 3.1GHz Intel HD 620 3M - MB4U86R-0751D3 2 / 4
15W Core i7 7500U 2.7GHz ~ 3.5GHz Intel HD 620 4M MB4U86R-0771 D3-0600 D3 2 / 4
15W Celeron 3867U 1.8GHz Intel HD 610 2M - MB4U86R-0811D3 2 / 2
15W Pentium 4417U 2.3GHz Intel HD 610 2M - MB4U86R-0821D3 2 / 2
15W Core i3 8130U 2.0GHz ~ 3.40GHz Intel UHD 620 4M - MB4U86R-0831D3 2 / 4
15W Core i5 8250U 1.6GHz ~ 3.4GHz Intel UHD 620 6M - MB4U86R-0851D3 4 / 8
15W Core i7 8550U 1.8GHz ~ 4.0GHz Intel UHD 620 8M - MB4U86R-0871D3 4 / 8
