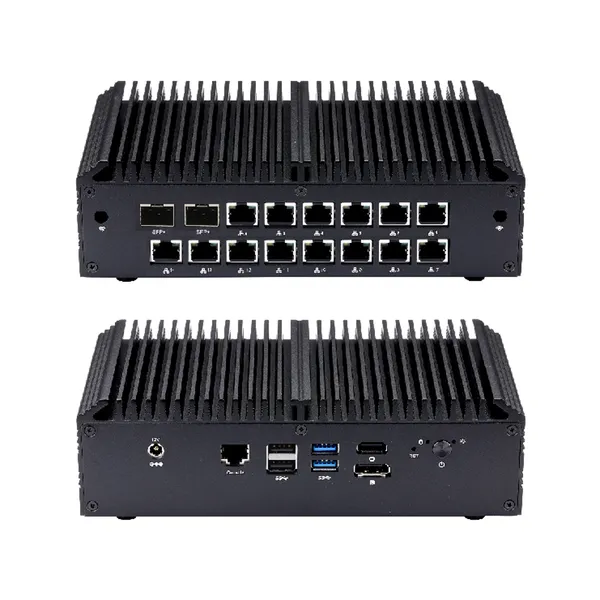

Q30900SP-S10 image 1

Mini PC Q30900SP S10 Series

Model: Q30900SP-S10

Total LAN8
LAN Speed2.5G RJ45 / 10G SFP+
Serial Ports1

Key Specs

CPU
Whiskey Lake / Coffee Lake / Comet lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
8
Storage
M.2 Mkey, SATA
Q30912SPQ30921SPQ30931SPQ30951SPQ30971SPQ30952SPQ31011SPQ31012SPQ31021SPQ31031SPQ31051SPQ31071SPQ31072SPQ31073SPIntelWhiskey LakeCoffee LakeComet lakeCeleronPentiumCore i3Core i5Core i74205U4305U5405U8145U8265U8365U8565U8665U8140U8260U5205U5305U6405U10110U10210U10310U10510U10610U10710U10810U

Main Features

  • Intel 8 th Whiskey Lake-U Processor
  • Intel 8 th Coffee Lake-U Processor
  • Intel 10 th Comet lake-U Processor
  • 1 × Display Port, 1 × HDMI
  • 3 × USB 3.0, 1 × USB 2.0
  • 3 × M.2, 1 × SATA 3.0
  • 1 × RS-232 (RJ-45)
  • 6 × Intel I225-V/I226-V 2.5G LAN
  • 2, Intel 82599ES 10G SFP+
  • 8 × Realtek RTL8153B Gigabit LAN

Processor System

CPU• Intel 8thWhiskey Lake-U Processor • Intel 8thCoffee Lake-U Processor • Intel 10thComet lake-U Processor
CPU TDPBy CPU
Memory1 ×DDR4SO-DIMM Socket (Up to32G,2133/2400MHz)
ChipsetBy CPU
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset6 × Intel I225-V/I226-V 2.5G LAN 2, Intel 82599ES 10G SFP+ (10GbE/1GbE) 8 × Realtek RTL8153B 1G LAN
Watch DogYes

Front I/O

Power Button1 ×Power Button,1 ×Reset Button
LED1 ×Power LED,1 ×HDD LED
USB3 × USB 3.0, 1 × USB 2.0
Serial Port1 ×RS-232Port(RJ-45)
Power1 ×DC Jack
Video Output1 ×HDMI,1 ×Display Port

Rear I/O

LAN/2.5G6 × 2.5G LAN
SFP+2 × 10G SFP+ Both interfaces support up to 12Gbps
LAN/1G8 × 1G LAN

Storage

Type1 ×2.5-inch HDD/SSD

Expansion

M.21 ×M.2 for SSD (M key, Type:2280,PCIe3.0 ×1)
M.21 ×M.2 for 4G/5G (B key, Type: 3042/3052)
M.21 ×M.2 for Wi-Fi (E key, Type: 2230) Only For Core Series
SIM Card Slot1
AutoStart JumperYes,1 ×3Pin, Pitch 2.0mm
CMOS Clear JumperYes,1 ×3Pin, Pitch 2.0mm

Power

Power Adapter12V7A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension217 × 122 × 62mm
Weight1.44kg
MountingVESA Mounting Bracket
Packaging Dimension285 × 260 × 93mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSWindows 10, Linux

Standard Package Includes

  • Q30900SP-S10 Mini PC × 1
  • Power Adapter × 1
  • Power Cable × 1
  • VESA Mount × 1
  • Screw Pack × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

CPUTDPFrequencyIntegrated GraphicsCacheOrdering CodeCores / ThreadsDatasheet
Celeron 4305U 15W 2.2GHz Intel UHD Graphics 2M Q30912SP-S10 2 / 2
Pentium 5405U 15W 2.3GHz Intel UHD Graphics 2M Q30921SP-S10 2 / 4
Core i3 8145U 15W 2.1GHz ~ 3.9GHz Intel UHD Graphics 4M Q30931SP-S10 2 / 4
Core i5 8265U 15W 1.6GHz ~ 3.9GHz Intel UHD Graphics 6M Q30951SP-S10 4 / 8
Core i7 8565U 15W 1.8GHz ~ 4.6GHz Intel UHD Graphics 8M Q30971SP-S10 4 / 8
Core i5 8260U 15W 1.6GHz ~ 3.9GHz Intel UHD Graphics 620 6M Q30952SP-S10 4 / 8
Celeron 5205U 15W 1.9GHz Intel UHD Graphics 2M Q31011SP-S10 2 / 2
Celeron 5305U 15W 2.3GHz Intel UHD Graphics 2M Q31012SP-S10 2 / 2
Pentium 6405U 15W 2.4GHz Intel UHD Graphics 2M Q31021SP-S10 2 / 4
Core i3 10110U 15W 2.1GHz ~ 4.1GHz Intel UHD Graphics 4M Q31031SP-S10 2 / 4
Core i5 10210U 15W 1.6GHz ~ 4.2GHz Intel UHD Graphics 6M Q31051SP-S10 4 / 8
Core i7 10610U 15W 1.8GHz ~ 4.9GHz Intel UHD Graphics 8M Q31071SP-S10 4 / 8
Core i7 10810U 15W 1.1GHz ~ 4.9GHz Intel UHD Graphics 12M Q31072SP-S10 6 / 12
Core i7 10710U 15W 1.1GHz ~ 4.7GHz Intel UHD Graphics 12M Q31073SP-S10 6 / 12
Core i7 10510U 15W 1.8GHz ~ 4.9GHz Intel UHD Graphics 8M Q31074SP-S10 4 / 8
