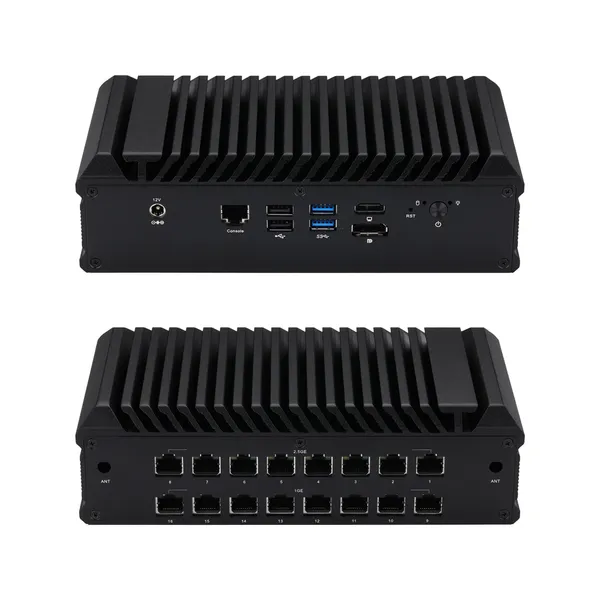

Q30600GPR-S20 image 11 / 8

Mini PC Q30600GPR S20 Series

Model: Q30600GPR-S20

Total LAN16
LAN Speed1G RJ45
Serial Ports1

Key Specs

CPU
Skylake / Kaby Lake / Kaby Lake-R
Memory
DDR4 SO-DIMM · Max 32GB
LAN
16
Storage
mSATA, SATA
Q30611GPRQ30612GPRQ30631GPRQ30651GPRQ30671GPRQ30711GPRQ30712GPRQ30731GPRQ30751GPRQ30771GPRQ30811GPRQ30821GPRQ30831GPRQ30851GPRQ30871GPRIntelSkylakeKaby LakeKaby Lake-RCeleronPentiumCore i3Core i5Core i73855U3955U4405U6006U6100U6200U6300U6500U6600U3865U3965U4415U7020U7100U7130U7200U7500U7560U7660U7600U3867U4417U8130U8250U8350U8550U8650U

Main Features

  • Intel 6 th Skylake-U Processor
  • Intel 7 th Kabylake-U Processor
  • Intel 8 th Kabylake-R-U Processor
  • 1 × Display Port, 1 × HDMI
  • 2 × USB 3.0, 2 × USB 2.0
  • 1 × mSATA, 1 × Mini PCIe, 1 × M.2, 1 × SATA 3.0
  • 1 × RS-232 (RJ-45)
  • 8 × Realtek Gigabit LAN
  • 8 × Realtek RTL8153B Gigabit LAN

Processor System

CPU• Intel6thSkylake-U Processor • Intel7thKabylake-U Processor • Intel8thKabylake-R-U Processor
CPU TDPBy CPU
Memory1 ×DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset16 × Realtek Gigabit LAN
Watch DogYes

Front I/O

Power Button1 ×Power Button,1 ×Reset Button
LED1 ×Power LED,1 ×HDD LED
USB2 ×USB 3.0,2 ×USB 2.0
Serial Port1 ×RS-232Port(RJ-45)
Power1 ×DC Jack
Video Output1 ×HDMI,1 ×Display Port

Rear I/O

LAN8 × Realtek Gigabit LAN 8 × Realtek RTL8153B Gigabit LAN

Storage

Type1 ×2.5-inch HDD/SSD

Expansion

Mini PCIe1 ×Mini PCIe (Only Support USB Device) Full-length for 4G Half-length for Wi-Fi
M.21 ×M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot1
AutoStart JumperYes,1 ×3Pin, Pitch 2.54mm
DC-inNo
CMOS Clear JumperYes,1 ×3Pin, Pitch 2.0mm
GPIO1,2 ×5Pin, Pitch 2.0mm
RS-4850

Power

Power Adapter12V4A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension221 × 121 ×62mm
Weight1.56kg
MountingVESA Mounting Bracket
Packaging Dimension285 × 260 ×93mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSWindows 10, Linux Windows 7 (only for6thGenSkylake)

Standard Package Includes

  • Q30600GPR-S20 Mini PC × 1
  • Power Adapter × 1
  • Power Cable × 1
  • VESA Mount × 1
  • Screw Pack × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

CPUTDPFrequencyIntegrated GraphicsCacheOrdering CodeCores / ThreadsDatasheet
Celeron 3855U 15W 1.6GHz Intel HD 510 2M Q30611GPR-S20 2 / 2
Celeron 3955U 15W 2.0GHz Intel HD 510 2M Q30612GPR-S20 2 / 2
Core i3 6100U 15W 2.3GHz Intel HD 520 3M Q30631GPR-S20 2 / 4
Core i5 6200U 15W 2.3GHz ~ 2.8GHz Intel HD 520 3M Q30651GPR-S20 2 / 4
Core i7 6500U 15W 2.5GHz ~ 3.1GHz Intel HD 520 4M Q30671GPR-S20 2 / 4
Celeron 3865U 15W 1.8GHz Intel HD 610 2M Q30711GPR-S20 2 / 2
Celeron 3965U 15W 2.2GHz Intel HD 610 2M Q30712GPR-S20 2 / 2
Core i3 7100U 15W 2.4GHz Intel HD 620 3M Q30731GPR-S20 2 / 4
Core i5 7200U 15W 2.5GHz ~ 3.1GHz Intel HD 620 3M Q30751GPR-S20 2 / 4
Core i7 7500U 15W 2.7GHz ~ 3.5GHz Intel HD 620 4M Q30771GPR-S20 2 / 4
Celeron 3867U 15W 1.8GHz Intel HD 610 2M Q30811GPR-S20 2 / 2
Pentium 4417U 15W 2.3GHz Intel HD 610 2M Q30821GPR-S20 2 / 2
Core i3 8130U 15W 2.0GHz ~ 3.40GHz Intel UHD 620 4M Q30831GPR-S20 2 / 4
Core i5 8250U 15W 1.6GHz ~ 3.4GHz Intel UHD 620 6M Q30851GPR-S20 4 / 8
Core i7 8550U 15W 1.8GHz ~ 4.0GHz Intel UHD 620 8M Q30871GPR-S20 4 / 8

No documents or drivers available.
