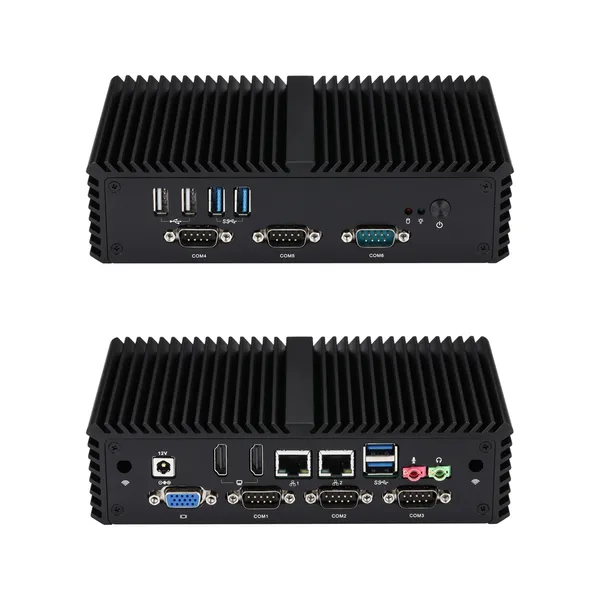

Q30400XV-S05 image 11 / 8

Mini PC Q30400XV S05 Series

Model: Q30400XV-S05

Total LAN2
LAN Speed1G RJ45
Serial Ports6

Key Specs

CPU
Haswell / Broadwell
Memory
DDR3L SO-DIMM · Max 8GB
LAN
2
Storage
mSATA, SATA
Q30411XVQ30431XVQ30451XVQ30471XVQ30432XVQ30452XVQ30472XVQ30511XVQ30512XVQ30521XVQ30531XVQ30551XVQ30571XVIntelHaswellBroadwellCeleronPentiumCore i3Core i5Core i72955U2980U3556U3558U4005U4010U4025U4030U4100U4120U4010Y4020Y4030Y4200Y4202Y4210Y4220Y4300Y4302Y4200U4210U4300U4310U4258U4278U4288U4308U4500U4510U4550U4600U4650U4610Y3205U3215U3805U3825U5005U5010U5015U5020U5200U5300U5250U5500U5600U

Main Features

  • Intel 4 th Haswell –U/Y Processor
  • Intel 5 th Broadwell-U Processor
  • 2 × HDMI, 1 × VGA
  • 6 × RS-232 (1 × RS-485)
  • 4 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
  • 1 × Mini PCIe, 1 × mSATA
  • 2 × Realtek Gigabit LAN

Processor System

CPU• Intel4thHaswell –U/Y Processor • Intel 5thBroadwell-U Processor
CPU TDPBy CPU
Memory1 ×DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset2 × RealtekGigabit LAN
AudioRealtek HD Audio
Watch DogYes

Front I/O

Power Button1
LED1 ×Power LED,1 ×HDD LED
USB2 ×USB 3.0,2 ×USB 2.0
Serial Port3 × RS-232 (COM4, COM5, COM6)

Rear I/O

Power1 ×DC Jack
Video Output2 × HDMI, 1 × VGA
LAN2 × Realtek Gigabit LAN
USB2 ×USB 3.0
Audio1 ×Mic-in,1 ×Line-out
Serial Port3 × RS-232 (COM1, COM2, COM3)

Storage

Type1 ×2.5-inch HDD/SSD 1 ×Mini PCIe for mSATA SSD

Expansion

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
VGA1,2 ×5Pin, Pitch 2.0mm
GPIO1, 2 × 5Pin, Pitch 2.0mm
RS-485COM2 can be set up as RS-485 (Factory Setting)
CMOS Clear JumperYes, 1 × 3Pin, Pitch 2.0mm

Power

Power Adapter12V4A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension187 × 111 ×49mm
Weight1.09kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 ×75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSWindows 7, Windows 8, Windows 10, Linux

Standard Package Includes

  • Q30400XV-S05 Mini PC × 1
  • Power Adapter × 1
  • Power Cable × 1
  • VESA Mount × 1
  • Screw Pack × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

CPUTDPFrequencyIntegrated GraphicsCacheOrdering CodeCores / ThreadsDatasheet
Celeron 2955U 15W 1.4GHz Intel HD Graphics 2M Q30411XV-S05 2 / 2
Core i3 4005U 15W 1.7GHz Intel HD 4400 3M Q30431XV-S05 2 / 4
Core i5 4200U 15W 1.6GHz ~ 2.6GHz Intel HD 4400 3M Q30451XV-S05 2 / 4
Core i7 4500U 15W 1.8GHz ~ 3.0GHz Intel HD 4400 4M Q30471XV-S05 2 / 4
Core i3 4010Y 11.5W 1.3GHz Intel HD 4200 3M Q30432XV-S05 2 / 4
Core i5 4200Y 11.5W 1.4GHz ~ 1.9GHz Intel HD 4200 3M Q30452XV-S05 2 / 4
Celeron 3205U 15W 1.5GHz Intel HD Graphics 2M Q30511XV-S05 2 / 2
Celeron 3215U 15W 1.7GHz Intel HD Graphics 2M Q30512XV-S05 2 / 2
Pentium 3805U 15W 1.9GHz Intel HD Graphics 2M Q30521XV-S05 2 / 2
Core i3 5005U 15W 2.0GHz Intel HD 5500 3M Q30531XV-S05 2 / 4
Core i5 5200U 15W 2.2GHz ~ 2.7GHz Intel HD 5500 3M Q30551XV-S05 2 / 4
Core i7 5500U 15W 2.4GHz ~ 3.0GHz Intel HD 5500 4M Q30571XV-S05 2 / 4
