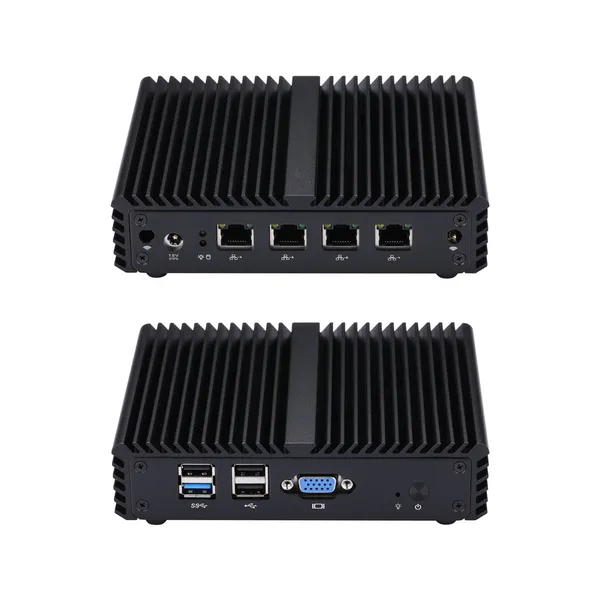

Q10100G4-S07 image 11 / 7

Mini PC Q10100G4 S07 Series

Model: Q10100G4-S07

Total LAN4
LAN Speed1G RJ45

Key Specs

CPU
Bay Trail
Memory
DDR3L SO-DIMM · Max 8GB
LAN
4
Storage
mSATA, SATA

dcddddd

Processor System

CPUIntel Bay Trail Processor
CPU TDPBy CPU
Memory1 ×DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset4 ×Intel I211-AT/I210-AT Gigabit LAN
AudioNo
Watch DogNo

Front I/O

Power Button1
LED1 ×Power LED,1 ×HDD LED
VGA1
USB1 × USB 3.0, 3 × USB 2.0
HDD LED1 ×Power LED
Audio CodecNo

Rear I/O

Power1 ×DC Jack
LAN4 ×Intel I211-AT/I210-AT Gigabit LAN

Storage

Type1 ×Mini PCIe for mSATA SSD

Expansion

mSATA1 ×Full-length Mini PCIe for SSD
Mini PCIe1 ×Mini PCIe Full-length for 4G, Half-length for Wi-Fi (Default Only Support USB Device)
SIM Card Slot1
AutoStart JumperYes,1 ×3Pin, Pitch 2.54mm
DC-inNo

Power

Power Adapter12V3A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension155 × 127 × 36mm
Weight0.82kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 ×75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSWindows 7, Windows 8, Windows 10, Linux

Standard Package Includes

  • Q10100G4-S07 Mini PC × 1
  • Power Adapter × 1
  • Power Cable × 1
  • VESA Mount × 1
  • Screw Pack × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodetdpcachecoresthreadscodeNamelegacyCodebaseFrequencyprocessorTypeprocessorNumbermaxTurboFrequencyprocessorGraphicsDatasheet
Q180X Q10111X-S07 10W1M22Bay trail-2.41GhzCeleronJ18002.58GhzIntel HD Graphics
Q190X Q10121X-S07 10W2M44Bay trail-2.00GhzCeleronJ19002.42GhzIntel HD Graphics
Q192X Q10122X-S07 7.5W2M44Bay trail-1.86GhzCeleronN29202.0GhzIntel HD Graphics
Q193X Q10123X-S07 7.5W2M44Bay trail-1.83GhzCeleronN29302.16GhzIntel HD Graphics

No documents or drivers available.
