Qotom

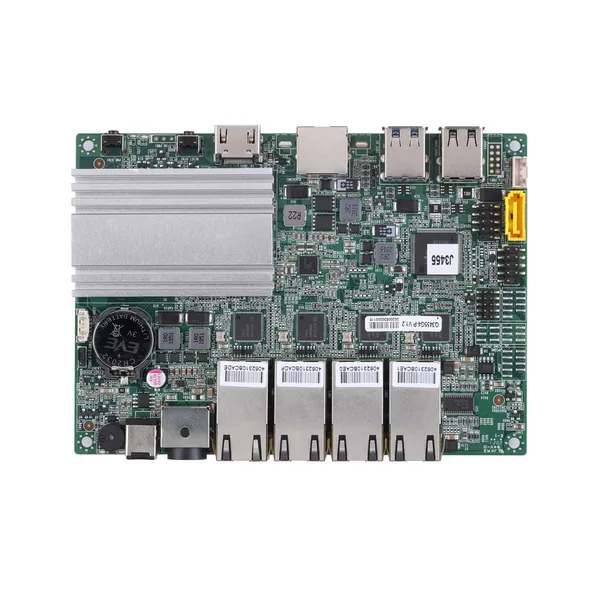

MB3J422-0400 image 11 / 8

Mainboard MB3J422-0400 Serie

Model: MB3J422-0400

Total LAN4
LAN Speed1G RJ45
Serial Ports1

Key Specs

CPU
Apollo Lake
Memory
DDR3L SO-DIMM · Max 8GB
LAN
4
Storage
mSATA, SATA
Board Size
148x104

Products Using This Board (1)

Q10400G4-S05

Q10400G4-S05

Multi-LAN-Serie

Q3355G4-PQ3455G4-PMB3J422-0411MB3J422-0421IntelApollo LakePentiumCeleronATOMJ3355J3455N3350N3450N4200J4205

Main Features

  • Intel Apollo Lake Processor
  • 1 × HDMI
  • 2 × USB 3.0, 2 × USB 2.0
  • 1 × mSATA,1 × Mini-PCIe, 1 × SATA 3.0
  • 4 × Intel WGI211-AT/I210-AT Gigabit LAN
  • 4 × POE Out

Prozessorsystem

CPUIntel Apollo Lake Processor
ChipsatzBy CPU
Abmessungen148 × 104mm
KernanzahlBy CPU
Max. GeschwindigkeitBy CPU
L2-CacheBy CPU
BIOSUEFI

Speicher

TechnologieDDR3 1333/1600MHz SDRAM
Max.8GB
Sockel1 × SO-DIMM

Grafik

ControllerBy CPU
VRAMShared Memory
VGA1 (Option)
HDMI1 (Support HDMI 1.4a)
MehrfachanzeigeYes

Ethernet

Schnittstelle10/100/1000Mbps
Controller4 × Intel I211-AT/I210-AT Gigabit LAN (With POE)
Anschluss4 × RJ-45

Audio

ControllerNo

Front-I/O

Ein-/Ausschalter1 × Power Button, 1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB2 × USB 3.0, 2 × USB 2.0
Schnittstelle1 × Connector,RS-232 (RJ-45) by Default RS-232 (DB9) (Option)
HDMI1

Rückseitige E/A

Ethernet4
DC-Eingang 11, 12V
DC-Eingang 21, 48V Mini Din

Speicher

Max. DatenübertragungsrateSATA 3.0 (6.0Gb/S)

Erweiterung

mSATA1 × Full-length Mini PCIe for SSD
Mini-PCIe1 × Full-length Mini PCIe for 4G

Interner Anschluss

VGA-Stiftleiste1, 2 × 5Pin, Pitch 2.0mm (Option)
Schnittstelle3, 2 × 5Pin, Pitch 2.0mm (Option)
RS-4850
SATA1, SATA 3.0 (6.0Gb/S)
SATA-Stromanschluss1, 1 × 4Pin, Pitch PH2.0mm
SIM-Steckplatz1
AutoStart-JumperNo
CMOS-LöschjumperYes, 1 × 3Pin, Pitch 2.0mm
GPIO-Header1, 2 × 5Pin, Pitch 2.0mm
USB 2.0-Stiftleiste2, 2 × 5Pin, Pitch 2.54mm
Frontblenden-Header1, 2 × 5Pin, Pitch 2.54mm
Stromstecker1, 12V, 1 × 2Pin, Pitch 5.08mm (Option)
Stromstecker1, 48V, 1 × 2Pin, Pitch 5.08mm (Option)

Watchdog-Timer

AusgangFrom Super I/O to Drag RESETCON#
Intervall256 Segments,0,1,2,3,,,255 sec/min

Stromversorgung

Eingangsleistung12V DC in, 5.5mm/2.5mm
Eingangsleistung48V Mini Din DC in

Umgebungsbedingungen

Betriebstemperatur0-50℃

Zubehör

ZubehörCable for HDD

OS-Unterstützung

BetriebssystemWindows 10, Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB3J422-0411 Q3355G4-P Apollo Lake Celeron J3355 2 / 2 2.00Ghz ~ 2.50Ghz 2M Intel HD 500 10W
MB3J422-0421 Q3455G4-P Apollo Lake Celeron J3455 4 / 4 1.50Ghz ~ 2.50Ghz 2M Intel HD 500 10W
