MB7UT1X-1500 image 11 / 6

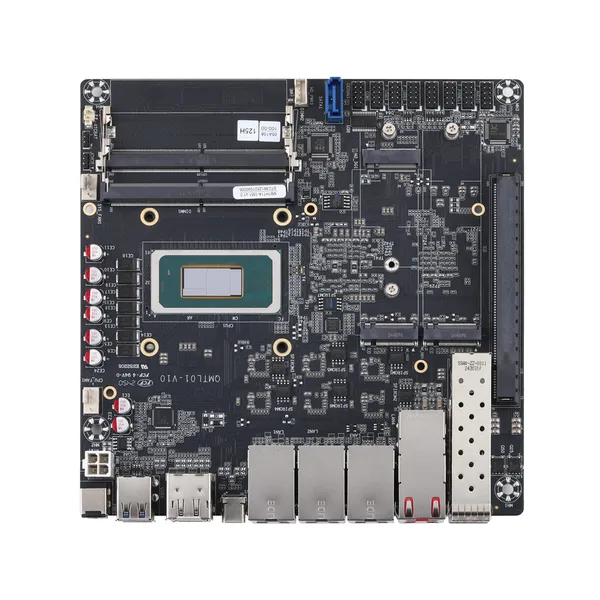

Mainboard MB7UT1X-1500 Serie

Model: MB7UT1X-1500

Total LAN10
LAN Speed2.5G RJ45 / 10G RJ45 / 10G SFP+
Serial Ports1

Key Specs

CPU
Meteor Lake / Arrow Lake
Memory
DDR5 SO-DIMM · Max 96GB
LAN
10
Storage
M.2 Mkey, SATA
Board Size
170x170

Products Using This Board (2)

Q31500ST-1U14

Q31500ST-1U14

Multi-LAN-Serie

Q31500ST-S18

Q31500ST-S18

Multi-LAN-Serie

MB7UT1X-1551MB7UT1X-1571MB7HT1X-1551MB7HT1X-1571IntelMeteor LakeArrow LakeUltra 3Ultra 5Ultra 7Ultra 9125U134U135U155U164U165U125H135H155H165H185H

Main Features

  • Intel Meteor Lake U/H Ultra Processor(Series 1)
  • Intel Arrow Lake U/H Ultra Processor(Series 2)
  • 1 × Display Port, 1 × HDMI
  • 3 × USB 3.0, 1 × Type C
  • 3 × M.2, 1 × SATA 3.0, 1 × RS-232
  • 6 × Intel I225-V/I226-V 2.5G LAN
  • 2,Intel X540 10G LAN
  • 2,Intel 82599ES 10G SFP+
  • 1 × PCIe 5.0 × 8 Slot

Prozessorsystem

CPU• Intel Meteor Lake U/H Ultra Processor(Series 1) • Intel Arrow Lake U/H Ultra Processor(Series 2)
ChipsatzBy CPU
Abmessungen170× 170mm
KernanzahlBy CPU
Max. GeschwindigkeitBy CPU
L2-CacheBy CPU
BIOSUEFI

Speicher

TechnologieDDR5 4800MHz SDRAM
Max.96GB
Sockel2× SO-DIMMs

Grafik

ControllerBy CPU
VRAMShared Memory
DisplayPort1
HDMI1 (Support HDMI 1.4a)
MehrfachanzeigeYes

Ethernet

RJ45/2.5G6, Intel I225-V/I226-V 2.5G LAN
RJ45/10G2,Intel X540 10G LAN (10GbE/1GbE) Both interfaces support up to 12Gbps
SFP+/10G2,Intel 82599ES 10G SFP+ (10GbE/1GbE) Both interfaces support up to 12Gbps

Audio

ControllerRealtek HD Audio

Rückseitige E/A

DC-Eingang1
USB 3.02× USB 3.0 (Type A)
Display1× Display Port,1× HDMI
Typ C1, USB 3.0
Ethernet6× 2.5G
Ethernet2× 10G
SFP+2 × 10G SFP+

Speicher

Max. DatenübertragungsrateSATA 3.0 (6.0Gb/S)

Erweiterung

M.21 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4)
M.21× M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 1)
M.21× M.2 for 4G/5G (B key, Type: 3042/3052)

Interner Anschluss

PCIe-Steckplatz1, PCIe slot (Type: X16, PCIe 5.0 × 8)
Stromstecker1, 2 × 2Pin, Pitch 5.5mm/4.2mm
CPU-Lüfteranschluss1, 1 × 4Pin, Pitch 2.54mm
SYS-Lüfteranschluss1, 1 × 4Pin, Pitch 2.54mm
Audio-Header1, 2 × 5Pin, Pitch 2.0mm
Frontblenden-Header1, 2 × 5Pin, Pitch 2.0mm
USB 2.0-Stiftleiste4, 2 × 5Pin, Pitch 2.0mm
USB 3.0-Stiftleiste1, 2 × 5Pin, Pitch 2.0mm
Schnittstelle1, 2 × 5Pin,Pitch 2.0mm
SATA1, SATA 3.0 (6.0Gb/S)
SATA-Stromanschluss1, 1 × 4Pin, Pitch PH2.0mm
AutoStart-JumperYes, 1 × 3Pin, Pitch 2.0mm
CMOS-LöschjumperYes, 1 × 3Pin, Pitch 2.0mm
GPIO-Header1, 2 × 5Pin, Pitch 2.0mm

Watchdog-Timer

AusgangFrom Super I/O to Drag RESETCON#
Intervall256 Segments,0,1,2,3,,,255 sec/min

Stromversorgung

Eingangsleistung12V/19V DC in, 5.5mm/2.5mm

Umgebungsbedingungen

Betriebstemperatur0-50℃

Zubehör

ZubehörCable for HDD, Cable for Serial Port

OS-Unterstützung

BetriebssystemUEFI Windows 10, UEFI Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPP-CoresE-CoresDatasheet
MB7UT1X-1551 Meteor Lake Core Ultra 5 125U 12 / 14 1.30 GHz ~ 4.30 GHz 12M Intel Graphics 15-57W 2 8
MB7UT1X-1571 Meteor Lake Core Ultra 7 155U 12 / 14 1.70 GHz ~ 4.80 GHz 12M Intel Graphics 15-57W 2 8
MB7HT1X-1551 Meteor Lake Core Ultra 5 125H 14 / 18 1.20 GHz ~ 4.50 GHz 18M I ntel Arc graphics 28-115W 4 8
MB7HT1X-1571 Meteor Lake Core Ultra 7 155H 16 / 22 1.40 GHz ~ 4.80 GHz 24M Intel Arc graphics 28-115W 6 8
