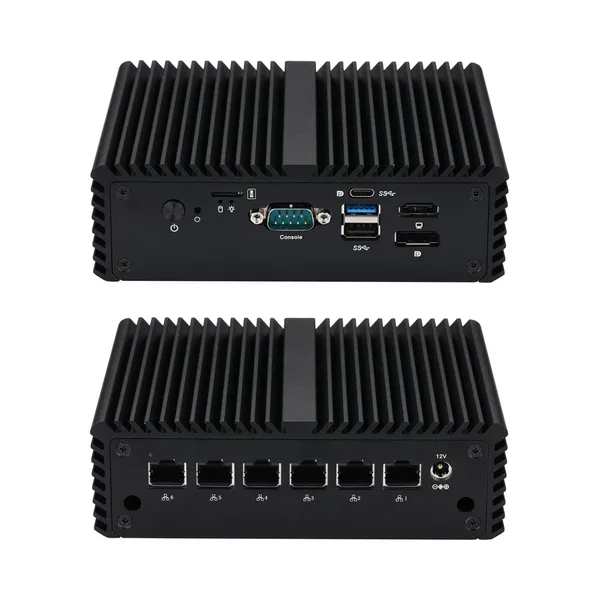

Mini-rekenaar Q10900G6 S08-reeks

Model: Q10900G6-S08

Total LAN6
LAN Speed2.5G RJ45
Serial Ports1

Key Specs

CPU
Alder lake N / Twin Lake
Memory
DDR5 SO-DIMM · Max 48GB
LAN
6
Storage
M.2 Mkey, SATA

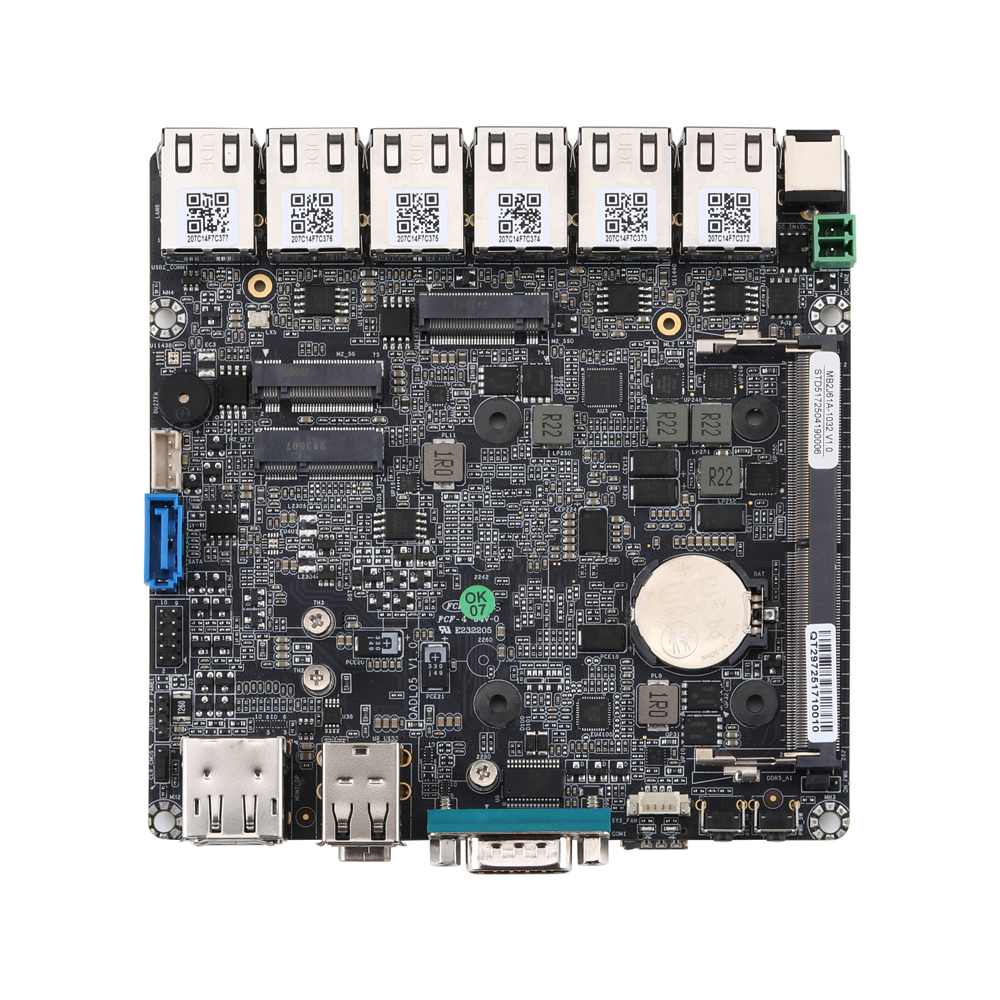

Based on Motherboard

MB2J61A-0900

MB2J61A-0900

View motherboard →

Q10911G6Q10921G6Q10922G6Q10923G6Q10924G6Q10931G6Q10932G6Q11022G6Q11023G6Q11031G6Q11032G6IntelAlder Lake-NTwin LakePentiumCeleronATOMX7425EN50N97N100N200N300N305N150N250N350N355

Main Features

  • Intel Alder Lake-N Processor
  • Intel Twin Lake-N Processor
  • 1 × HDMI, 2 × Display Port
  • 1 × Type C, 1 × USB 3.0 , 1 × USB 2.0
  • 3 × M.2, 1 × SATA3.0
  • 1 × RS-232 (DB9)
  • 6 × Intel I226-V 2.5G LAN

Verwerkerstelsel

SVEIntel Alder Lake-N Processor Intel Twin Lake-N Processor
SVE-TDPBy CPU
Geheue1 × DDR5 SO-DIMM Socket (Up to 48G)
Skyfie-stelBy CPU
GrafikaBy CPU
LAN-skyfiestel6 × Intel I226-V 2.5G LAN
Watch DogYes

Voorste I/O

Kragknoppie1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB1 × USB 3.0,1 × USB 2.0
Seriëlepoort1 × RS-232 Port (DB9)
SIM-gleuf1 × Nano SIM Slot
Tipe C1 × Type C (USB 3.0, Display Port)
Video-uitset1 × HDMI,1 × Display Port

Agterste I/O

Krag1 × DC Jack
LAN6 × Intel I226-V 2.5G LAN

Berging

Tipe1 × 2.5-inch HDD/SSD
Tipe1 × M.2 for SSD (M key, Type:2280,PCIe 3.0 × 1)

Uitbreiding

M.21 × M.2 for 4G/5G (B key, Type: 3042/3052) 5G Mode Requires Customization
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
M.21 × M.2 for SSD (M key, Type:2280,PCIe 3.0 × 1)
SIM-kaartsleuf1
Outostart-jumperYes,1 × 3Pin, Pitch 2.0mm
eMMCNo
CMOS-skoonmaakjumperYes,1 × 3Pin, Pitch 2.0mm
Kragpenkop1,1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin

Krag

Kragaansluiting12V5A
GS-aansluiting5.5mm, 2.5mm

Omgewings

Werktemperatuur0°C~50°C
Nie-werkingstemp-20°C~80°C
Humiditeit10%~90%

Megaanies

MateriaalAluminium Alloy
Afmeting155 × 127 × 48mm
Gewig0.86kg
MonteringVESA Mounting Bracket
Verpakkingsafmetings261 × 218 × 75mm
Kensington-sluitingNo
VerkoelingsmodusFanless Design

OS Ondersteuning

OSUEFI Windows, UEFI Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPLegacy ModelDatasheet
Q10911G6-S08 Alder lake-N - N50 2 / - 3.4GHz 6M Intel UHD Graphics 6W -
6-S08 Alder lake-N - N97 4 / - 3.6GHz 6M Intel UHD Graphics 12W Q10921G
Q10922G6-S08 Alder lake-N - N100 4 / 4 3.4GHz 6M Intel UHD Graphics 6W -
Q10923G6-S08 Alder lake-N - N200 4 / 4 3.7GHz 6M Intel UHD Graphics 6W -
Q10924G6-S08 Alder lake-N Atom X7425E 4 / 4 3.4GHz 6M Intel UHD Graphics 12W -
Q10931G6-S08 Alder lake-N Core i3 N300 8 / 8 3.8GHz 6M Intel UHD Graphics 7W -
Q10932G6-S08 Alder lake-N Core i3 N305 8 / 8 3.8GHz 6M Intel UHD Graphics 15W -
Q11022G6-S08 Twin Lake-N - N150 4 / 4 3.6GHz 6M Intel Graphics 6W -
Q11023G6-S08 Twin Lake-N - N250 4 / 4 3.8GHz 6M Intel Graphics 6W -
Q11031G6-S08 Twin Lake-N Core i3 N350 8 / 8 3.9GHz 6M Intel Graphics 7W -
Q11032G6-S08 Twin Lake-N Core i3 N355 8 / 8 3.9GHz 6M Intel Graphics 15W -
