Moederbord MB2J61A-0900-reeks

Model: MB2J61A-0900

Total LAN6
LAN Speed2.5G RJ45
Serial Ports1

Key Specs

CPU
Alder lake N / Twin Lake
Memory
DDR5 SO-DIMM · Max 48GB
LAN
6
Storage
M.2 Mkey, SATA
Board Size
120x120

Products Using This Board (2)

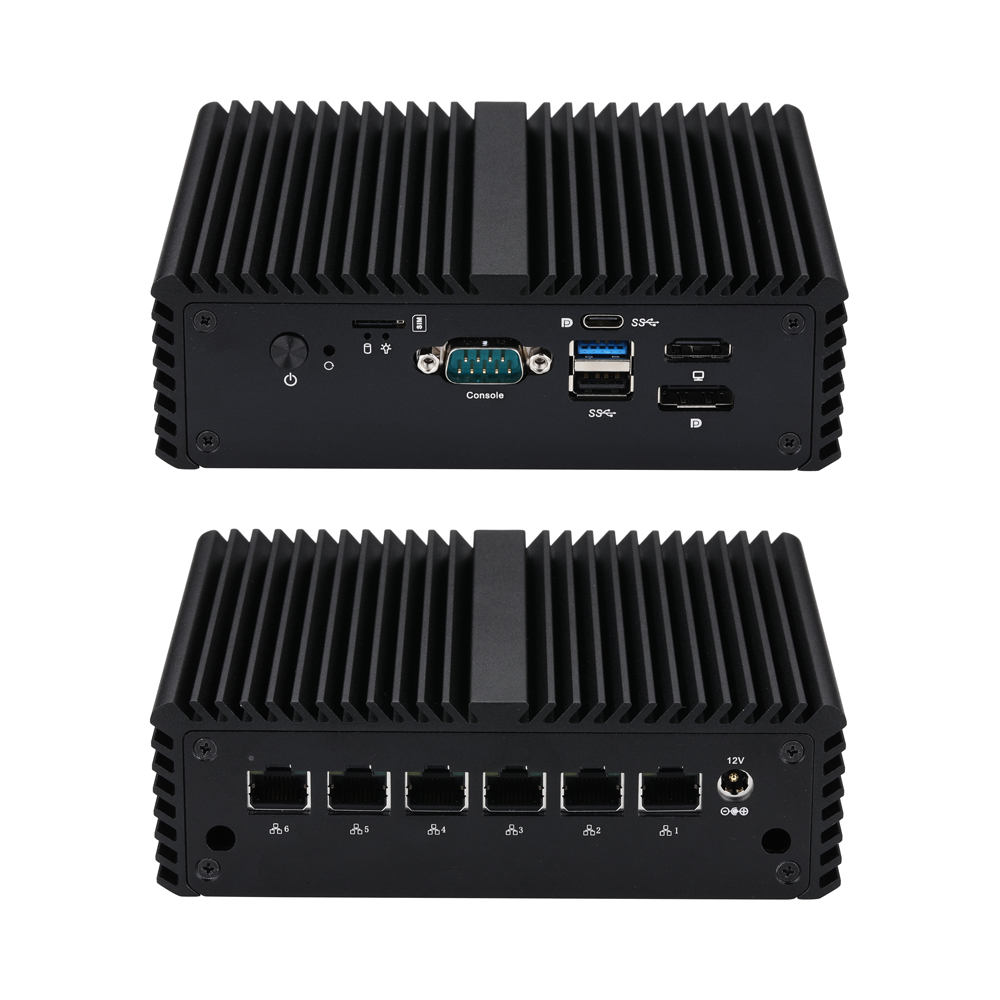

Q10900G6-1U12

Q10900G6-1U12

Multi-LAN-reeks

Q10900G6-S08

Q10900G6-S08

Multi-LAN-reeks

MB2J61A-0911MB2J61A-0921MB2J61A-0922MB2J61A-0923MB2J61A-0924MB2J61A-0931MB2J61A-0932MB2J61A-1022MB2J61A-1023MB2J61A-1031MB2J61A-1032IntelAlder Lake-NTwin LakePentiumCeleronATOMX7425EN50N97N100N200N300N305N150N250N350N355

Main Features

  • Intel Alder Lake-N Processor
  • Intel Twin Lake-N Processor
  • 1 × HDMI, 2 × Display Port
  • 1 × Type C,1 × USB 3.0 ,1 × USB 2.0
  • 3 × M.2, 1 × SATA3.0
  • 1 × RS-232 (DB9)
  • 6× Intel I226-V 2.5G LAN

Verwerkerstelsel

SVEIntel Alder Lake-N Processor Intel Twin Lake-N Processor
Skyfie-stelBy CPU
Afmeting120 × 120mm
Aantal kerneBy CPU
SpoedBy CPU
L2-kasBy CPU
BIOSUEFI

Geheue

TegnologieDDR5 4800MHz SDRAM
Maks.48GB
Sok1 × SO-DIMM

Grafika

BeheerderBy CPU
VRAMShared Memory
Tipe C1× Display Port
HDMI1 (Support HDMI 1.4a)
Vertoonpoort1
Multi-vertoningYes

Eternet

Koppelvlak100/1000/2500Mbps
Beheerder6 × I226-V 2.5G LAN
Aansluiting6 × RJ-45

Klank

BeheerderNo

Voorste I/O

Kragknoppie1 × Power Button, 1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB1 × USB 3.0, 1 × USB 2.0
Seriëlepoort1 × Connector, RS-232 (DB9)
GS-in1
Eternet6
SIM-gleuf1 × Nano Sim Slot
Tipe C1, USB 3.0 and Display Port
Vertoning1× HDMI,1× Display Port

Berging

Maks. data-oordragspoedSATA 3.0 (6.0Gb/S)

Uitbreiding

M.21× M.2 for SSD (M key, Type:2280,PCIe 3.0 × 1)
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052) (Option)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)

Interne aansluiting

SATA1, SATA 3.0 (6.0Gb/S)
SATA-kragaansluiting1, 1 × 4Pin, Pitch PH2.0mm
Outostart-jumperYes, 1 × 3Pin, Pitch 2.0mm
CMOS-skoonmaakjumperYes, 1 × 3Pin, Pitch 2.0mm
Voorpaneel-koppelaar1, 2 × 5Pin, Pitch 2.0mm
USB 2.0-penkop1, 1 × 4Pin, Pitch 2.0mm
Kragpenkop1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin

Watchdog-tydteller

UitsetFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min

Krag

Insetkrag12V DC in, 5.5mm/2.5mm

Omgewings

Werktemperatuur0-50℃

Toebehore

ToebehoreCable for HDD

OS Ondersteuning

OSUEFI Windows 10, UEFI Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB2J61A-0911 A lder lake-N - N50 2 / - 3.4GHz 6M Intel UHD Graphics 6W
MB2J61A-0921 Alder lake-N - N97 4 / - 3.6GHz 6M Intel UHD Graphics 12W
MB2J61A-0922 Alder lake-N - N100 4 / 4 3.4GHz 6M Intel UHD Graphics 6W
MB2J61A-0923 Alder lake-N - N200 4 / 4 3.7GHz 6M Intel UHD Graphics 6W
MB2J61A-0924 Alder lake-N Atom X7425E 4 / 4 3.4GHz 6M Intel UHD Graphics 12W
MB2J61A-0931 Alder lake-N Core i3 N300 8 / 8 3.8GHz 6M Intel UHD Graphics 7W
MB2J61A-0932 Alder lake-N Core i3 N305 8 / 8 3.8GHz 6M Intel UHD Graphics 15W
MB2J61A-1022 Twin Lake-N - N150 4 / 4 3.6GHz 6M Intel Graphics 6W
MB2J61A-1023 Twin Lake-N - N250 4 / 4 3.8GHz 6M Intel Graphics 6W
MB2J61A-1031 Twin Lake-N Core i3 N350 8 / 8 3.9GHz 6M Intel Graphics 7W
MB2J61A-1032 Twin Lake-N Core i3 N355 8 / 8 3.9GHz 6M Intel Graphics 15W
