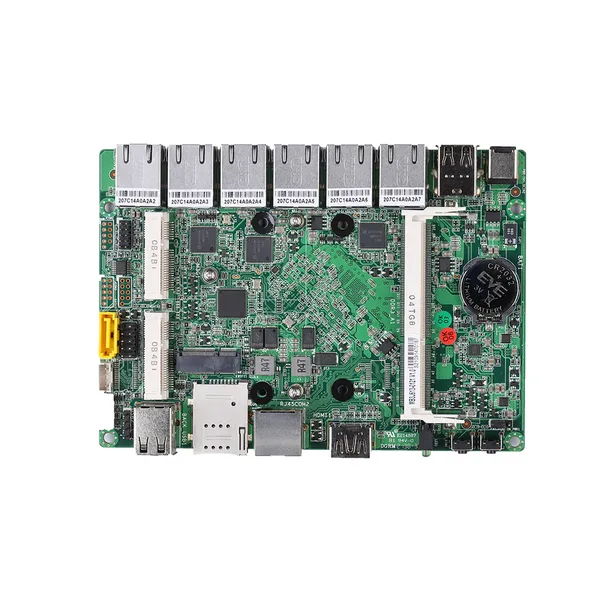

Moderkort MB3J613-0100-serien

Name: Moderkort MB3J613-0100-serien
Brand: Qotom
SKU: MB3J613-0100

Model: MB3J613-0100

Total LAN6

LAN Speed1G RJ45

Serial Ports1

Key Specs

CPU: Bay Trail
Memory: DDR3L SO-DIMM · Max 8GB
LAN: 6
Storage: mSATA, SATA
Board Size: 148x104

Products Using This Board (2)

Q10100G6-S04

Multi-LAN-serie

Q10100G6-1U10

Multi-LAN-serie

MB3J613-0111 MB3J613-0121 Intel Bay Trail Pentium Celeron ATOM N2840 J1800 J1900 N2920 N2930 N3540

Main Features

Intel Bay Trail Processor
1 × HDMI, 1x RS-232 (RJ-45)
1 × USB 3.0, 3 × USB 2.0, 1 × SATA 3.0
1 × Mini-PCIe, 1 × mSATA
6 × Intel I211-AT/I210-AT Gigabit LAN
