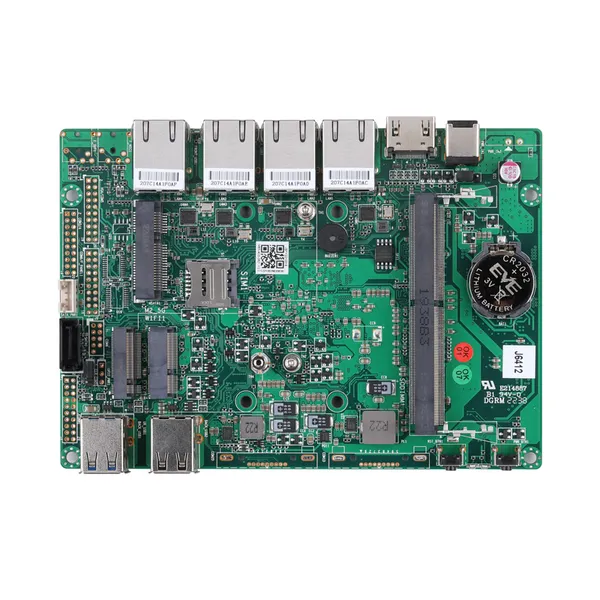

MB3J403-0800 image 11 / 6

Moderkort MB3J403-0800-serien

Model: MB3J403-0800

Total LAN4
LAN Speed1G RJ45

Key Specs

CPU
Elkhart Lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
4
Storage
mSATA, SATA
Board Size
148x104

Products Using This Board (1)

Q10800G4-S04

Q10800G4-S04

Multi-LAN-serie

MB3J403-0811MB3J403-0821IntelElkhart LakePentiumCeleronATOMN6210N6211J6412J6413J6415J6426

Main Features

  • Intel Elkhart Lake Processor
  • 1 × HDMI
  • 2 × USB 3.0, 2 × USB 2.0
  • 2 × M.2, 1 × mSATA, 1 × SATA 3.0
  • 4 × Realtek Gigabit LAN

Processorsystem

CPUIntel Elkhart Lake Processor
ChipsetBy CPU
Dimension148 × 104mm
Antal kärnorBy CPU
HastighetBy CPU
L2-cacheBy CPU
BIOSUEFI

Minne

TeknikDDR4 2133/2400MHz SDRAM
Max.32GB
Sockel1 × SO-DIMM

Grafik

StyrenhetBy CPU
VRAMShared Memory
VGA0
HDMI1 (Support HDMI 1.4a)
Multi DisplayN o

Ethernet

Gränssnitt10/100/1000Mbps
Styrenhet4 × Realtek Gigabit LAN
Kontakt4 × RJ-45

Ljud

StyrenhetNo

Front I/O

Strömknapp1 × Power Button, 1 × Reset Button
LED1 × Power LED, 1 × HDD LED
USB0
USB2 × USB 3.0, 2 × USB 2.0
Seriell port0
DC-IN1
Phoenix 2-stift0
HDMI1
Ethernet4
Ljud0

Lagring

Max. dataöverföringshastighetSATA 3.0 (6.0Gb/S)

Expansion

mSATA1 × Full-length Mini PCIe for SSD
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052), 5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization
M.21 × M.2 for Wi-Fi (E key, Type: 2230)

Intern kontakt

VGA-stiftlist0
Seriell port0
RS-4850
PS/20
SATA1, SATA 3.0 (6.0Gb/S)
SATA-strömkontakt1, 1 × 4Pin, Pitch PH2.0mm
SIM-plats1
AutoStart-jumperYes, 1 × 3Pin, Pitch 2.54mm
Rensa CMOS-jumperYes, 1 × 3Pin, Pitch 2.54mm
GPIO-header0
GPIO-strömväljare0
Frontpanel-header0
Strömstiftlist1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option)

Watchdog-timer

UtgångFrom Super I/O to Drag RESETCON#
Intervall256 Segments,0,1,2,3,,,255 sec/min

Ström

Ingångsström12V DC in, 5.5mm/2.5mm

Miljö

Driftstemperaturområde0-50 ℃

Tillbehör

TillbehörCable for HDD

OS-stöd

OperativsystemUEFI Windows 10, UEFI Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB3J403-0811 Elkhart Lake Celeron N6210 2 / 2 1.20Ghz ~ 2.6Ghz 1.5M Intel UHD Graphics 6.5W
MB3J403-0821 Elkhart Lake Celeron J6412 4 / 4 2.00Ghz ~ 2.60Ghz 1.5M Intel UHD Graphics 10W
