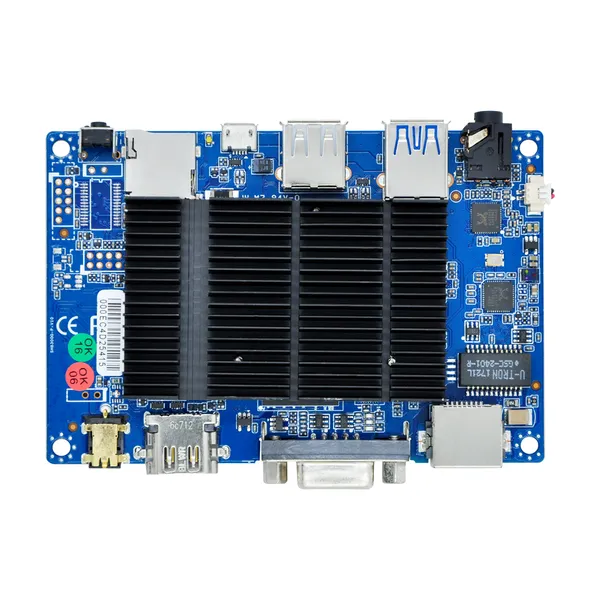

Q8350G-P image 11 / 7

Матична плоча серија Q8350G-P

Model: Q8350G-P

Total LAN1
LAN Speed1G RJ45

Key Specs

CPU
Cherry Trail
Memory
Integrated · Max Integrated
LAN
1
Board Size
105x70

Main Features

  • Intel Atom X5-Z8350 Cherry Trail Processor
  • Intel HD Graphics
  • 1 × VGA, 1 × HDMI
  • 1 × Micro USB, 1x USB 2.0, 1 × USB 3.0
  • 1 × Integrated Wi-Fi & Bluetooth
  • 1 × Realtek RTL8111F LAN

Procesorski sistem

CPUIntel Cherry T rail Processor Atom Z8350 Processor, 2W
ČipsetBy CPU
Dimenzija105 × 70mm
Broj jezgara4
Maks. Brzina1.44GHz, up to 1.92GHz
L2 Keš2M
BIOSUEFI

Memorija

TehnologijaDDR3L 1333/1600MHz SDRAM
Maks.2GB, Integrated,4GB (Option)
Utičnica0

Grafika

KontrolerIntel HD Graphics
VRAMShared Memory
VGA1
LVDS0
HDMI1
Višestruki PrikazYes

Ethernet

Interfejs10/100/1000Mbps
Kontroler1 × Realtek RTL8111F LAN
Konektor1 × RJ-45
Wi-FiRealtek RTL8723BS
Bluetooth1, Bluetooth 4.0

Audio

KontrolerRealtek ALC5645 HD Audio

Prednji I/O

Dugme za uključivanje1
LED1
USB1 × USB 2.0,1 × USB 3.0, 1 × Micro USB
Slot za TF karticu1
Audio1 (Mic-in, Line-out)

Zadnji I/O

DC-IN1
HDMI1
VGA1
Ethernet1

Skladištenje

eMMC32GB/64GB,Integrated

Interni Konektor

VGA0
Serijski port0
SATA0
SATA PWR konektor0
m-SATA0
Mini-PCIe0
SIM slot0
AutoStart Jumper0
GPIO Header0
USB Header0
Header za zvučnike0
Prednji Panel Header0
Header za napajanje0
Ulazna Snaga5V3A DC in, 3.5mm/1.35mm

Uslovi okoline

Radna temperatura0-50℃

Pribor

PriborNo

Podrška za OS

OSUEFI Windows 8 x86, Windows 10 x86, UEFI Linux x86

Package Contents

  • Motherboard × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q8350G-P CurrentCherry Trail Atom Z8350 4 / 4 1.44GHz ~ 1.92GHz 2M Intel HD Graphics 2W
