Qotom
Q30300S-S08 image 11 / 7

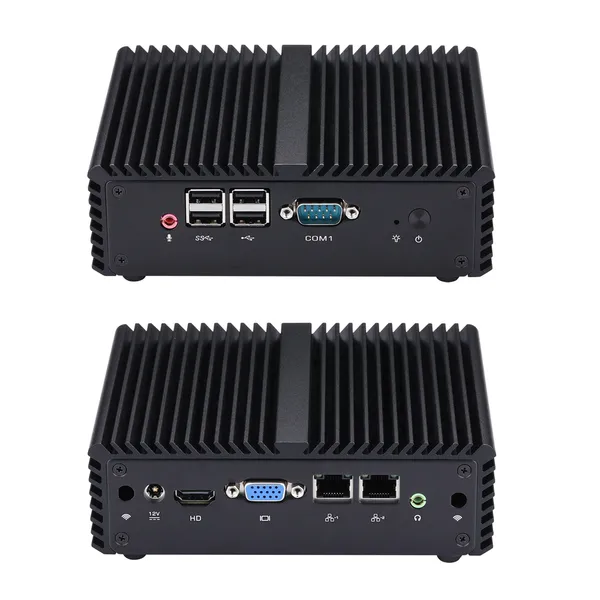

Mini PC Q30300S S08 Series

Model: Q30300S-S08

Total LAN2
LAN Speed1G RJ45
Serial Ports1

Key Specs

CPU
Ivy Bridge
Memory
DDR3L SO-DIMM · Max 8GB
LAN
2
Storage
mSATA, SATA

Based on Motherboard

MB2U213-0300

MB2U213-0300

View motherboard →

Q107SQ100SQ210SQ220SQ30311SQ30312SQ30331SQ30351SIntelIvy BridgeCeleronPentiumCore i3Core i5Core i71007U1017U1037U3217U3227U3317U3427U3337U3537U

Main Features

  • Intel 3 rd Ivy Bridge Processor
  • 1 × VGA,1 × HDMI,1 × RS-232
  • 4 × USB 2.0,1 × SATA 3.0
  • 1 × Mini PCIe,1 × mSATA
  • 2 × Realtek Gigabit LAN

Procesorski sistem

CPUIntel 3 rd Ivy Bridge Processor
CPU TDPBy CPU
Memorija1 × DDR3 SO-DIMM Socket (Up to 8G, 1333/1600MHz)
ČipsetBy CPU
GrafikaBy CPU
LAN Čipset2 × Realtek Gigabit LAN
AudioRealtek HD Audio
Watch DogNo

Prednji I/O

Dugme za uključivanje1
LED1 × Power LED
USB4 × USB 2.0
Serijski port1 × RS-232
Audio1 (Mic-in)

Zadnji I/O

Napajanje1 × DC Jack
Video izlaz1 × HDMI,1 × VGA
LAN2 × Realtek Gigabit LAN
USB0
Audio1 (Line-out)
Serijski port0

Skladištenje

Tip1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD

Proširenje

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Half-length Mini PCIe for Wi-Fi
Slot za SIM karticu0
AutoStart JumperNo
DC-inNo
VGA0
GPIONo

Napajanje

Adapter za napajanje12V4A
DC Priključak5.5mm, 2.5mm

Uslovi okoline

Radna temperatura0°C~50°C
Temperatura van rada-20°C~80°C
Vlažnost10%~90%

Mehanički

MaterijalAluminium Alloy
Dimenzija155 × 127 × 48mm
Težina0.85kg
MontažaVESA Mounting Bracket
Dimenzije pakovanja261 × 218 × 75mm
Kensington BravaNo
Način hlađenjaFanless

Podrška za OS

OSWindows XP, Windows 7, Windows 8, Windows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q30311S-S08 Q107S Ivy Bridge Celeron 1007U 2 / 2 1.5GHz 2M Intel HD Graphics 17W
Q30312S-S08 Q100S Ivy Bridge Celeron 1037U 2 / 2 1.8GHz 2M Intel HD Graphics 17W
Q30331S-S08 Q210S Ivy Bridge Core i3 3217U 2 / 4 1.8GHz 3M Intel HD Graphics 4000 17W
Q30351S-S08 Q220S Ivy Bridge Core i5 3317U 2 / 4 1.7GHz ~ 2.6GHz 3M Intel HD Graphics 4000 17W
