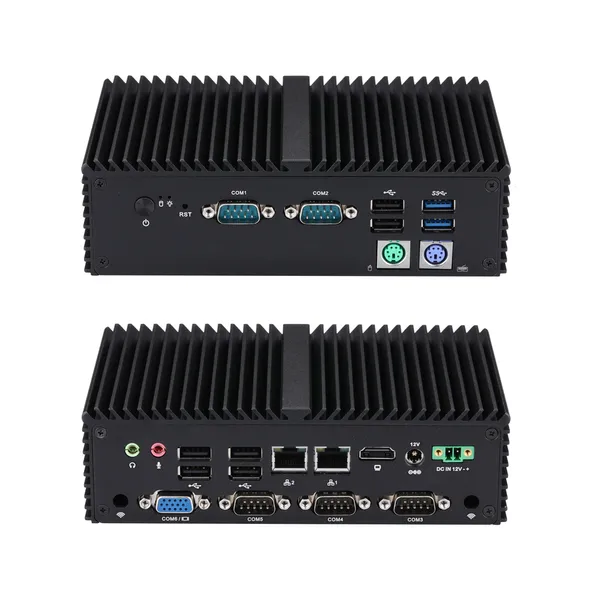

Q10800XPV-S04 image 11 / 5

Mini PC Q10800XPV S04 Series

Model: Q10800XPV-S04

Total LAN2
LAN Speed1G RJ45
Serial Ports5

Key Specs

CPU
Elkhart Lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
2
Storage
mSATA, SATA

Based on Motherboard

MB3J263-0800

MB3J263-0800

View motherboard →

Q780XPVQ790XPVQ10811XPVQ10821XPVIntelElkhart LakePentiumCeleronATOMN6210N6211J6412J6413J6415J6426

Main Features

  • Intel Elkhart Lake Processor
  • 1 × HDMI,1 × VGA
  • 2 × USB 3.0,6 × USB 2.0,5 × RS-232
  • 2 × M.2,1 × mSATA,1 × SATA 3.0
  • 2 × Realtek Gigabit LAN

Procesorski sistem

CPUIntel Elkhart Lake Processor
CPU TDPBy CPU
Memorija1 × DDR4 SO-DIMM Socket (Up to 32G)
ČipsetBy CPU
GrafikaBy CPU
AudioRealtek HD Audio
Watch DogYes

Prednji I/O

Dugme za uključivanje1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB2 × USB 2.0,2 × USB 3.0
Serijski port2 × RS-232 (COM1/2 can be set up as RS-485)
PS/22
GPIO0

Zadnji I/O

Napajanje1 × DC Jack
LAN2 × Realtek Gigabit LAN
USB4 × USB 2.0
Audio1 × Mic-in,1 × Line-out
Phoenix1 × 2Pin
Prikaz1 × HDMI,1 × VGA
Serijski port3 × RS-232

Skladištenje

Tip1 × 2.5-inch HDD/SSD
Tip1 × Mini PCIe for mSATA SSD

Proširenje

mSATA1 × mSATA for SSD
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052) 5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
Slot za SIM karticu1
AutoStart JumperYes,1 × 3Pin, Pitch 2.54mm
GPIO1,2 × 5Pin, Pitch 2.0mm
VGA0
Serijski port0
Obriši CMOS JumperYes,1 × 3Pin, Pitch 2.54mm
Prednji Panel Header1,2 × 5Pin, Pitch 2.0mm

Napajanje

Adapter za napajanje12V3A
DC Priključak5.5mm, 2.5mm

Uslovi okoline

Radna temperatura0°C~50°C
Temperatura van rada-20°C~80°C
Vlažnost10%~90%

Mehanički

MaterijalAluminium Alloy
Dimenzija178 × 111 × 52mm
Težina0.85kg
MontažaVESA Mounting Bracket
Dimenzije pakovanja261 × 218 × 75mm
Kensington BravaNo
Način hlađenjaFanless Design

Podrška za OS

OSUEFI Windows 10, UEFI Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q10811XPV-S04 Q780XPV Elkhart Lake Celeron N6210 2 / 2 1.20Ghz ~ 2.6Ghz 1.5M Intel UHD Graphics 6.5W
Q10821XPV-S04 Q790XPV Elkhart Lake Celeron J6412 4 / 4 2.00Ghz ~ 2.60Ghz 1.5M Intel UHD Graphics 10W
