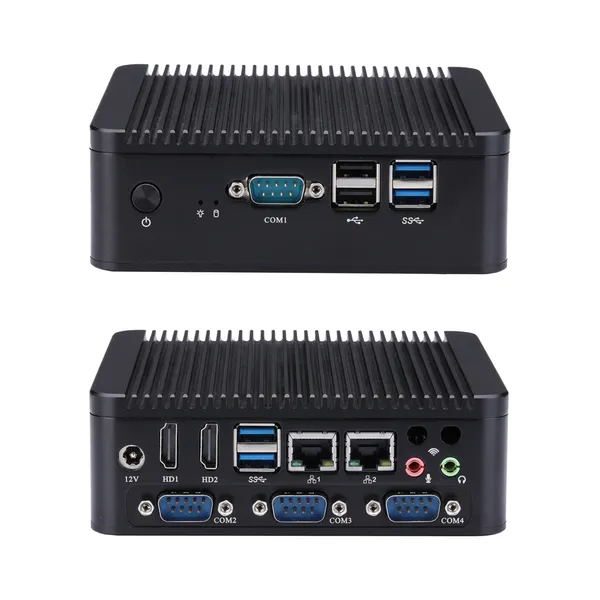

Q30600P-S02 image 11 / 8

Mini PC Q30600P Serie S02

Model: Q30600P-S02

Total LAN2
LAN Speed1G RJ45
Serial Ports4

Key Specs

CPU
Skylake / Kaby Lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
2
Storage
M.2 Mkey, SATA

Based on Motherboard

MB2U247-0600

MB2U247-0600

View motherboard →

Q510PQ520PQ530PQ550PQ570PQ515PQ525PQ535PQ555PQ575PQ30611PQ30612PQ30631PQ30651PQ30671PQ30711PQ30712PQ30731PQ30751PQ30771PIntelSkylakeKaby LakeKaby Lake-RCeleronPentiumCore i3Core i5Core i73855U3955U4405U6006U6100U6200U6300U6500U6600U3865U3965U4415U7020U7100U7130U7200U7500U7560U7660U7600U

Main Features

  • Intel 6 th Skylake-U Processor
  • Intel 7 th Kabylake-U Processor
  • 2 × HDMI,4 × RS-232
  • 4 × USB 3.0,2 × USB 2.0,1 × SATA 3.0
  • 2 × M.2 Slot
  • 2 × Realtek Gigabit LAN

Processador

CPU• Intel 6 th Skylake-U Processor • Intel 7 th Kabylake-U Processor
TDP da CPUBy CPU
Memória1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
ChipsetBy CPU
GráficosBy CPU
Chipset LAN2 × Realtek Gigabit LAN
ÁudioRealtek HD Audio
Watch DogYes

I/O Frontal

Botão Liga/Desliga1
LED1 × Power LED,1 × HDD LED
USB2 × USB 3.0,2 × USB 2.0
Porta Serial1 × RS-232 (COM1)
Áudio0

I/O Traseiro

Fonte1 × DC Jack
Saída de Vídeo2 × HDMI
LAN2 × Realtek Gigabit LAN
USB2 × USB 3.0
Áudio1 × Mic-in,1 × Line-out
Porta Serial3 × RS-232 (COM2, COM3, COM4)

Armazenamento

Tipo1 × 2.5-inch HDD/SSD 1 × M.2 S lot for SSD (M key, Type:2280)

Expansão

M.21 × M.2 for SSD (M key, Type:2280)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
Slot Cartão SIM0
Jumper AutoStartYes,1 × 3Pin, Pitch 2.54mm
Jumper de Limpeza CMOSYes,1 × 3Pin, Pitch 2.0mm
VGA0
GPIO1,2 × 5Pin, Pitch 2.0mm
RS-4850

Fonte

Fonte de Alimentação12V4A
Conector DC5.5mm, 2.5mm

Ambiental

Temp. de Operação0°C~50°C
Temperatura de Não Operação-20°C~80°C
Humidade10%~90%

Mecânico

MaterialAluminium Alloy
Dimensão134 × 127 × 46mm
Peso0.72kg
MontagemVESA Mounting Bracket
Dimensões da Embalagem261 × 218 × 75mm
Bloqueio KensingtonSupport
Modo de ArrefecimentoWith Fan

Suporte a SO

Sistema OperacionalWindows 10, Linux Windows 7 (O nly for 6th Gen Skylake)

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q30611P-S02 Q510P Skylake Celeron 3855U 2 / 2 1.6GHz 2M Intel HD 510 15W
Q30612P-S02 Q520P Skylake Celeron 3955U 2 / 2 2.0GHz 2M Intel HD 510 15W
Q30631P-S02 Q530P Skylake Core i3 6100U 2 / 4 2.3GHz 3M Intel HD 520 15W
Q30651P-S02 Q550P Skylake Core i5 6200U 2 / 4 2.3GHz ~ 2.8GHz 3M Intel HD 520 15W
Q30671P-S02 Q570P Skylake Core i7 6500U 2 / 4 2.5GHz ~ 3.1GHz 4M Intel HD 520 15W
Q30711P-S02 Q515P Kaby Lake Celeron 3865U 2 / 2 1.8GHz 2M Intel HD 610 15W
Q30712P-S02 Q525P Kaby Lake Celeron 3965U 2 / 2 2.2GHz 2M Intel HD 610 15W
Q30731P-S02 Q535P Kaby Lake Core i3 7100U 2 / 4 2.4GHz 3M Intel HD 620 15W
Q30751P-S02 Q555P Kaby Lake Core i5 7200U 2 / 4 2.5GHz ~ 3.1GHz 3M Intel HD 620 15W
Q30771P-S02 Q575P Kaby Lake Core i7 7500U 2 / 4 2.7GHz ~ 3.5GHz 4M Intel HD 620 15W
