Qotom

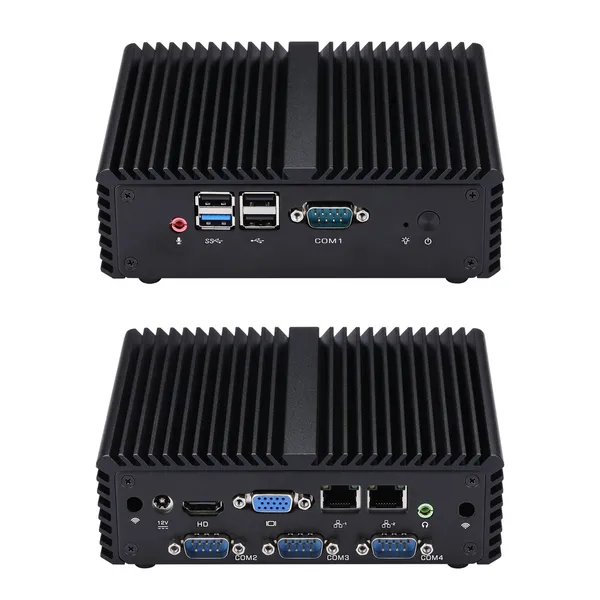

Q10100P-S02 image 11 / 7

Mini PC Q10100P Serie S02

Model: Q10100P-S02

Total LAN2
LAN Speed1G RJ45
Serial Ports4

Key Specs

CPU
Bay Trail
Memory
DDR3L SO-DIMM · Max 8GB
LAN
2
Storage
mSATA, SATA

Based on Motherboard

MB2J243-0100

MB2J243-0100

View motherboard →

Q180PQ190PQ192PQ193PQ195PQ10111PQ10121PQ10122PQ10123PQ10134PIntelBay TrailPentiumCeleronATOMN2840J1800J1900N2920N2930N3540

Main Features

  • Intel Bay Trail Processor
  • 1 × VGA,1 × HDMI,4 × RS-232
  • 1 × USB 3.0,3 × USB 2.0,1 × SATA 3.0
  • 1 × Mini PCIe,1 × mSATA
  • 2 × Realtek Gigabit LAN

Processador

CPUIntel Bay Trail Processor
TDP da CPUBy CPU
Memória1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
ChipsetBy CPU
GráficosBy CPU
Chipset LAN2 × Realtek Gigabit LAN
ÁudioRealtek HD Audio
Watch DogNo

I/O Frontal

Botão Liga/Desliga1
LED1 × Power LED
USB1 × USB 3.0,3 × USB 2.0
Porta Serial1 × RS-232 (COM1)
Áudio1 (Mic-in)

I/O Traseiro

Fonte1 × DC Jack
Saída de Vídeo1 × HDMI,1 × VGA
LAN2 × Realtek Gigabit LAN
USB0
Áudio1 (Line-out)
Porta Serial3 × RS-232 (COM2, COM3, COM4)

Armazenamento

Tipo1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD

Expansão

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Half-length Mini PCIe for Wi-Fi
Slot Cartão SIM0
Jumper AutoStartNo
Entrada CCNo
VGA0
GPIONo

Fonte

Fonte de Alimentação12V3A
Conector DC5.5mm, 2.5mm

Ambiental

Temp. de Operação0°C~50°C
Temperatura de Não Operação-20°C~80°C
Humidade10%~90%

Mecânico

MaterialAluminium Alloy
Dimensão134 × 127 × 46mm
Peso0.75kg
MontagemVESA Mounting Bracket
Dimensões da Embalagem261 × 218 × 75mm
Bloqueio KensingtonSupport
Modo de ArrefecimentoFanless Design

Suporte a SO

Sistema OperacionalWindows 7, Windows 8, Windows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q10111P-S02 Q180P Bay trail Celeron J1800 2 / 2 2.41Ghz ~ 2.58Ghz 1M Intel HD Graphics 10W
Q10121P-S02 Q190P Bay trail Celeron J1900 4 / 4 2.00Ghz ~ 2.42Ghz 2M Intel HD Graphics 10W
Q10122P-S02 Q192P Bay trail Celeron N2920 4 / 4 1.86Ghz ~ 2.0Ghz 2M Intel HD Graphics 7.5W
Q10123P-S02 Q193P Bay trail Celeron N2930 4 / 4 1.83Ghz ~ 2.16Ghz 2M Intel HD Graphics 7.5W
Q10134P-S02 Q195P Bay trail Pentium N3540 4 / 4 2.16Ghz ~ 2.66Ghz 2M Intel HD Graphics 7.5W
