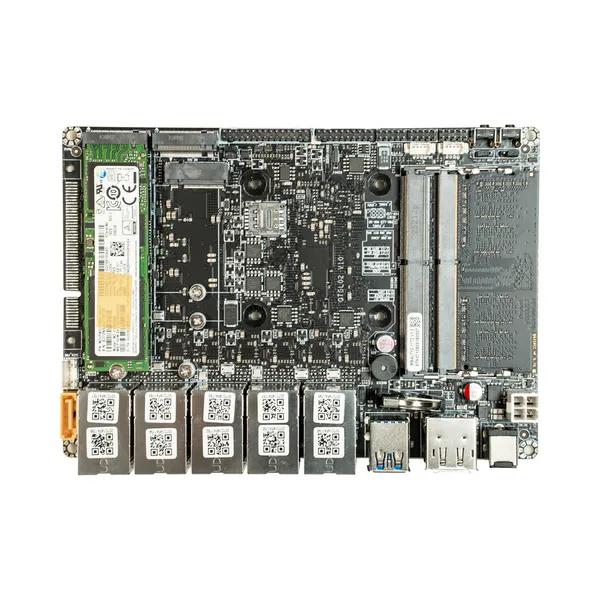

Placa-mãe Série MB4HT1C-1100

Name: Placa-mãe Série MB4HT1C-1100
Brand: Qotom
SKU: MB4HT1C-1100

Model: MB4HT1C-1100

Total LAN10

LAN Speed2.5G RJ45

Key Specs

CPU: Tiger Lake
Memory: DDR4 SO-DIMM · Max 64GB
LAN: 10
Storage: M.2 Mkey, SATA
Board Size: 165x115

Products Using This Board (2)

Q31100GT-1U18

Série Multi-LAN

Q31100GT-S23

Série Multi-LAN

Main Features

Intel 11 th Tiger Lake Processor
1 × Display Port, 1 × HDMI
2 × USB 3.0, 4 × USB 2.0
4 × M.2
10 × Intel I226-V 2.5G LAN
1 × PCIe Slot

Related Products

Placa-mãe Série MB7UT1X-150U

MB7UT1X-150U

Placa-mãe Série MB4J61Z-0900

MB4J61Z-0900

Placa-mãe Série MB7UT1X-1500

MB7UT1X-1500

Placa-mãe Série MB3U422-0400

MB3U422-0400

Placa-mãe Série MB2J400-0700

MB2J400-0700

Placa-mãe Série MB2J61A-0900

MB2J61A-0900

CPU	Intel 11 th Tiger Lake Processor
Chipset	By CPU
Dimensão	148 × 104mm
Número de Núcleos	By CPU
Velocidade Máx.	By CPU
Cache L2	By CPU
BIOS	UEFI

Tecnologia	DDR4 3200MHz SDRAM
Máx.	64GB
Soquete	2 × SO-DIMMs

Controlador	By CPU
VRAM	Shared Memory
DisplayPort	Display Port
HDMI	1 (Support HDMI 1.4a)
Display Múltiplo	Yes

Interface	100/1000/2500Mbps
Controlador	10 × Intel I226-V 2.5G LAN
Conector	10 × RJ-45

Botão Liga/Desliga	1× Power Button,1× CMOS Clear Button
LED	1× Power LED, 1× HDD LED
Entrada CC	1
Display	1× Display Port,1× HDMI
USB 3.0	2× USB 3.0 (Type A)
Ethernet	10

Série Mini PC

Série Placa-mãe

Série Armazenamento NAS

Série OPS

Série PC Painel

Acessórios

Placa-mãe Série MB4HT1C-1100

Key Specs

Products Using This Board (2)

Main Features

Processador

Memória

Gráficos

Ethernet

Áudio

I/O Frontal

Armazenamento

Expansão

Conector Interno

Temporizador Watchdog

Fonte

Ambiental

Acessórios

Suporte a SO

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

M.2	1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4)
M.2	1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1) (Option 2, Preferred)

M.2	1 × M.2 for Wi-Fi (E key, Type: 2230) (Option 1, Preferred)
Slot PCIe	1, PCIe slot (Type:X16, PCIe 3.0 × 1) (Custom only)
Jumper AutoStart	1, 1 × 3Pin, Pitch 2.0mm
Jumper de Limpeza CMOS	1, 1 × 3Pin, Pitch 2.0mm
Painel Frontal	1, 2 × 5Pin, Pitch 2.0mm
Conector USB 2.0	4, 2 × 5Pin, Pitch 2.0mm
Porta Serial	1 × RS-232,1, 2 × 5Pin, Pitch 2.0mm
eDP	1, 2 × 15Pin, Pitch 2.0mm
Conector de Alimentação (Header)	1, 2 × 2Pin, Pitch 5.5mm/4.2mm ((Custom only))

Saída	From Super I/O to Drag RESETCON#
Intervalo	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
MB4HT1C-1111	Tiger Lake	Celeron	6305	2 / 2	1.80 GHz	4M	Intel UHD Graphics	15W
MB4HT1C-1121	Tiger Lake	Pentium	7505	2 / 4	2.00 GHz ~ 3.50 GHz	4M	Intel UHD Graphics	15W
MB4HT1C-1131	Tiger Lake	Core i3	1115G4	2 / 4	3.00 GHz ~ 4.10 GHz	6M	Intel UHD Graphics	12-28W
MB4HT1C-1132	Tiger Lake	Core i3	1125G4	4 / 8	2.00 GHz ~ 3.70 GHz	8M	Intel UHD Graphics	12-28W
MB4HT1C-1151	Tiger Lake	Core i5	1135G7	4 / 8	2.40 GHz ~ 4.20 GHz	8M	Intel Iris Xe Graphics	12-28W
MB4HT1C-1152	Tiger Lake	Core i5	1145G7	4 / 8	2.60 GHz ~ 4.40 GHz	8M	Intel Iris Xe Graphics	12-28W
MB4HT1C-1153	Tiger Lake	Core i5	1155G7	4 / 8	2.50 GHz ~ 4.50 GHz	8M	Intel Iris Xe Graphics eligible	12-28W
MB4HT1C-1171	Tiger Lake	Core i7	1165G7	4 / 8	2.80 GHz ~ 4.70 GHz	12M	Intel Iris Xe Graphics	12-28W
MB4HT1C-1172	Tiger Lake	Core i7	1185G7	4 / 8	3.00 GHz ~ 4.80 GHz	12M	Intel Iris Xe Graphics	12-28W
MB4HT1C-1173	Tiger Lake	Core i7	1195G7	4 / 8	2.90 GHz ~ 5.00 GHz	12M	Intel Iris Xe Graphics eligible	12-28W
MB4HT1C-1151	Tiger Lake	Core i5	11300H	4 / 8	2.60 GHz ~ 4.40 GHz	8M	Intel Iris Xe Graphics	28-35W
MB4HT1C-1152	Tiger Lake	Core i5	11320H	4 / 8	2.50 GHz ~ 4.50 GHz	8M	Intel Iris Xe Graphics eligible	28-35W
MB4HT1C-1171	Tiger Lake	Core i7	11370H	4 / 8	3.00 GHz ~ 4.80 GHz	12M	Intel Iris Xe Graphics	28-35W
MB4HT1C-1172	Tiger Lake	Core i7	11375H	4 / 8	3.00 GHz ~ 5.00 GHz	12M	Intel Iris Xe Graphics	28-35W
MB4HT1C-1173	Tiger Lake	Core i7	11390H	4 / 8	2.90 GHz ~ 5.00 GHz	12M	Intel Iris Xe Graphics eligible	28-35W
