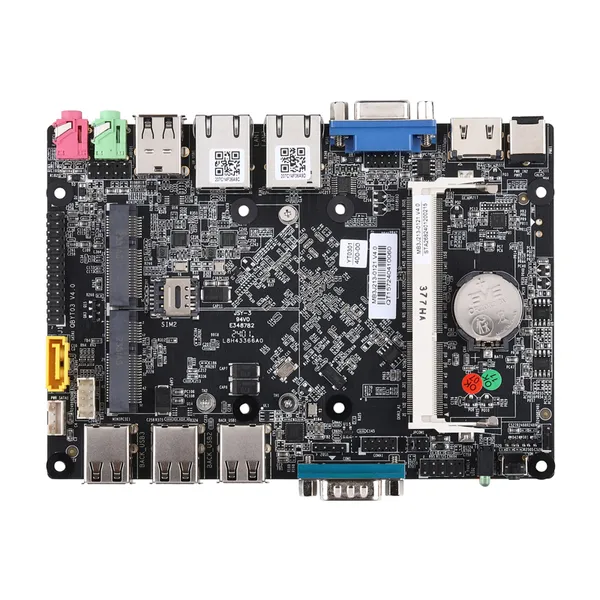

Placa-mãe Série MB3J213-0100

Name: Placa-mãe Série MB3J213-0100
Brand: Qotom
SKU: MB3J213-0100

Model: MB3J213-0100

Total LAN2

LAN Speed1G RJ45

Serial Ports7

Key Specs

CPU: Bay Trail
Memory: DDR3L SO-DIMM · Max 8GB
LAN: 2
Storage: mSATA, SATA
