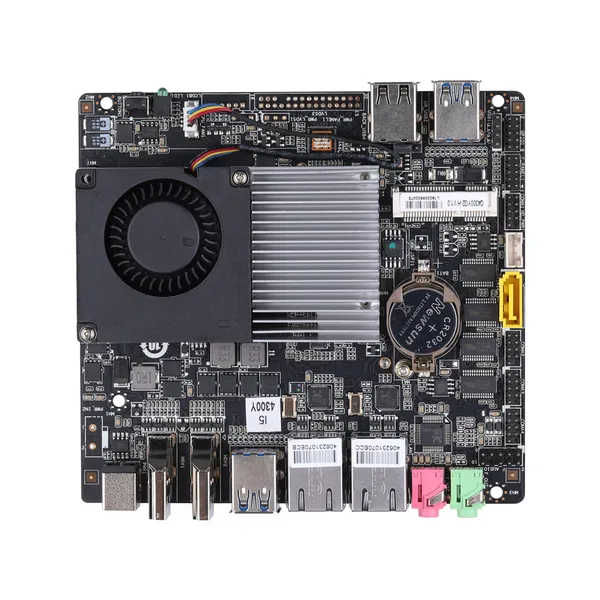

Placa-mãe Série MB2U246-0400

Model: MB2U246-0400

Total LAN2
LAN Speed1G RJ45
Serial Ports4

Key Specs

CPU
Haswell / Broadwell
Memory
DDR3L SO-DIMM · Max 8GB
LAN
2
Storage
mSATA, SATA
Board Size
120x120

Products Using This Board (3)

Q400P-S08

Q400P-S08

Série Multi-COM

Q400S-S08

Q400S-S08

Série Básica

Q400S-S03

Q400S-S03

Série Básica

5015U5020U5200U5300U5250U5500U5600UQ2955UG2-HQ4005UG2-HQ4200UG2-HQ4500UG2-HQ4010YG2-HQ4200YG2-HQ3205UG2-HQ3215UG2-HQ3805UG2-HQ5005UG2-HQ5200UG2-HQ5500UG2-HIntelHaswellBroadwellCeleronPentiumCore i3Core i5Core i72955U2980U3556U3558U4005U4010U4025U4030U4100U4120U4010Y4020Y4030Y4200Y4202Y4210Y4220Y4300Y4302Y4200U4210U4300U4310U4258U4278U4288U4308U4500U4510U4550U4600U4650U4610Y3205U3215U3805U3825U5005U5010U

Main Features

  • Intel 4 th Haswell –U/Y Processor
  • Intel 5 th Broadwell-U Processor
  • 2 × HDMI, 4 × RS-232
  • 4 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
  • 2 × Mini-PCIe, 1 × mSATA
  • 2 × Realtek Gigabit LAN

Processador

CPU• Intel 4 th Haswell –U/Y Processor • Intel 5 th Broadwell-U Processor
ChipsetBy CPU
Dimensão120 × 130mm
Número de NúcleosBy CPU
Velocidade Máx.By CPU
Cache L2By CPU
BIOSUEFI

Memória

TecnologiaDDR3L 1333/1600MHz SDRAM
Máx.8GB
Soquete1 × SO-DIMM

Gráficos

ControladorBy CPU
VRAMShared Memory
LVDS1 (Option)
HDMI2 (Support HDMI 1.4a)
Display MúltiploYes

Ethernet

Interface10/100/1000Mbps
Controlador2 × Realtek Gigabit LAN
Conector2 × RJ-45

Áudio

ControladorRealtek HD Audio

I/O Frontal

Botão Liga/Desliga1
LED1 × Power LED
USB2 × USB 3.0, 2 × USB 2.0

I/O Traseiro

USB2 × USB 3.0
Áudio2 (Mic-in, Line-out)
Entrada CC1
HDMI2
Ethernet2

Armazenamento

Taxa Máx. de Transferência de DadosSATA 3.0 (6.0Gb/S)

Expansão

mSATA1 × Full-length Mini PCIe for SSD
Mini-PCIe1× Full-length Mini PCIe for 4G
Mini-PCIe1× Half-length Mini PCIe for Wi-Fi Module

Conector Interno

LVDS1, 2 × 10Pin, Pitch 1.0mm (Option)
Conector VGA0
Porta Serial4, 2 × 5Pin, Pitch 2.0mm
RS-4850
SATA1, SATA 3.0 (6.0Gb/S)
Conector SATA PWR1, 1 × 4Pin, Pitch PH2.0mm
Slot SIM1
Jumper AutoStartYes, 1 × 3Pin, Pitch 2.54mm
Jumper de Limpeza CMOS0
Conector GPIO1, 2 × 5Pin, Pitch 2.0mm
Conector USB 2.01, 1 × 4Pin, Pitch 2.54mm
Conector do Painel Frontal1, 2 × 5Pin, Pitch 2.0mm
Conector de Caixas de Som1, 2 × 5Pin, Pitch 2.54mm
Conector de Alimentação (Header)1, 1 × 2Pin, Pitch 5.5mm (Option)

Temporizador Watchdog

SaídaFrom Super I/O to Drag RESETCON#
Intervalo256 Segments,0,1,2,3,,,255 sec/min

Fonte

Alimentação de Entrada12V DC in, 5.5mm/2.5mm

Ambiental

Temperatura de Operação0-50℃

Acessórios

AcessóriosCable for HDD, Cable for Serial Port

Suporte a SO

Sistema OperacionalWindows 7, Windows 10, Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1
  • COM Extension Cable × 3

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q2955UG2-H Haswell Celeron 2955U 2 / 2 1.4GHz 2M Intel HD Graphics 15W
Q4005UG2-H Haswell Core i3 4005U 2 / 4 1.7GHz 3M Intel HD 4400 15W
Q4200UG2-H Haswell Core i5 4200U 2 / 4 1.6GHz ~ 2.6GHz 3M Intel HD 4400 15W
Q4500UG2-H Haswell Core i7 4500U 2 / 4 1.8GHz ~ 3.0GHz 4M Intel HD 4400 15W
Q4010YG2-H Haswell Core i3 4010Y 2 / 4 1.3GHz 3M Intel HD 4200 11.5W
Q4200YG2-H Haswell Core i5 4200Y 2 / 4 1.4GHz ~ 1.9GHz 3M Intel HD 4200 11.5W
Q4258UG2-H Haswell Core i5 4258U 2 / 4 2.4GHz ~ 2.9GHz 3M Intel I ris Graphics 5100 28W
Q3205UG2-H Broadwell Celeron 3205U 2 / 2 1.5GHz 2M Intel HD Graphics 15W
Q3215UG2-H Broadwell Celeron 3215U 2 / 2 1.7GHz 2M Intel HD Graphics 15W
Q3805UG2-H Broadwell Pentium 3805U 2 / 2 1.9GHz 2M Intel HD Graphics 15W
Q5005UG2-H Broadwell Core i3 5005U 2 / 4 2.0GHz 3M Intel HD 5500 15W
Q5200UG2-H Broadwell Core i5 5200U 2 / 4 2.2GHz ~ 2.7GHz 3M Intel HD 5500 15W
Q5500UG2-H Broadwell Core i7 5500U 2 / 4 2.4GHz ~ 3.0GHz 4M Intel HD 5500 15W
