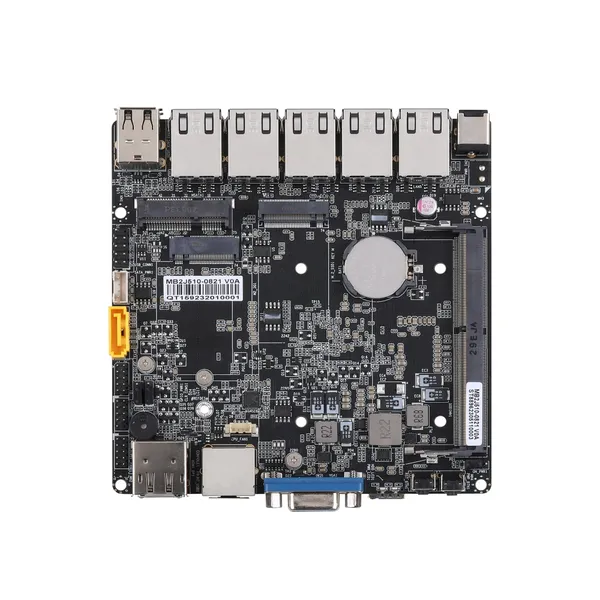

Placa-mãe Série MB2J510-0800

Name: Placa-mãe Série MB2J510-0800
Brand: Qotom
SKU: MB2J510-0800

Model: MB2J510-0800

Total LAN5

LAN Speed2.5G RJ45

Serial Ports1

Key Specs

CPU: Elkhart Lake
Memory: DDR4 SO-DIMM · Max 32GB
LAN: 5
Storage: M.2 Mkey, mSATA, SATA
Board Size: 120x120

Products Using This Board (2)

Q10800G5-S08

Série Multi-LAN

Q10800G5-1U08

Série Multi-LAN

MB2J510-0811 MB2J510-0821 Intel Elkhart Lake Pentium Celeron ATOM N6210 N6211 J6412 J6413 J6415 J6426

Main Features

Intel Elkhart Lake Processor
1 × HDMI, 1 × Display Port, 1 × VGA
1 × USB 3.0,1x USB 2.0
2 × M.2, 1 × mSATA, 1 × SATA3.0
1 × RS-232 (RJ-45)
5 × Intel I225-V/I226-V 2.5G LAN

Related Products

Placa-mãe Série MB7UT1X-150U

MB7UT1X-150U

Placa-mãe Série MB4J61Z-0900

MB4J61Z-0900

Placa-mãe Série MB7UT1X-1500

MB7UT1X-1500

Placa-mãe Série MB3U422-0400

MB3U422-0400

Placa-mãe Série MB2J400-0700

MB2J400-0700

Placa-mãe Série MB2J61A-0900

MB2J61A-0900

CPU	Intel Elkhart Lake Processor
Chipset	By CPU
Dimensão	120 × 120mm
Número de Núcleos	By CPU
Velocidade	By CPU
Cache L2	By CPU
BIOS	UEFI

Tecnologia	DDR4 2133/2400MHz SDRAM
Máx.	32GB
Soquete	1 × SO-DIMM

Controlador	By CPU
VRAM	Shared Memory
VGA	1
HDMI	1 (Support HDMI 1.4a)
DisplayPort	1
Display Múltiplo	Yes

Interface	100/1000/2500Mbps
Controlador	5 × Intel I225-V/I226-V 2.5G LAN
Conector	5 × RJ-45

Botão Liga/Desliga	1 × Power Button, 1 × Reset Button
LED	1 × Power LED,1 × HDD LED
USB	1 × USB 3.0, 1x USB 2.0
Entrada CC	1
Ethernet	5
Display	1× VGA,1× HDMI,1× Display Port
Serial/USB	1 × Connector, RS-232 (RJ-45) by Default,2 × USB 2.0 (Option)
Slot SIM	1

Série Mini PC

Série Placa-mãe

Série Armazenamento NAS

Série OPS

Série PC Painel

Acessórios

Placa-mãe Série MB2J510-0800

Key Specs

Products Using This Board (2)

Main Features

Processador

Memória

Gráficos

Ethernet

Áudio

I/O Frontal

Armazenamento

Expansão

Conector Interno

Temporizador Watchdog

Fonte

Ambiental

Acessórios

Suporte a SO

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

mSATA	1 × Full-length Mini PCIe for SSD
M.2	1 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.2	1× M.2 for SSD (M key, Type: 2280,PCIe 3.0 × 2) Wi-Fi support via a Converter Card

Porta Serial	1, 2 × 5Pin, Pitch 2.0mm
SATA	1, SATA 3.0 (6.0Gb/S)
Conector SATA PWR	1, 1 × 4Pin, Pitch PH2.0mm
Jumper AutoStart	Yes, 1 × 3Pin, Pitch 2.54mm
Jumper de Limpeza CMOS	Yes, 1 × 3Pin, Pitch 2.54mm
Conector GPIO	1, 2 × 5Pin, Pitch 2.0mm
Seleção de Alimentação GPIO	Yes, 1 × 3Pin, Pitch 2.54mm
Conector USB 2.0	2, 2 × 5Pin, Pitch 2.54mm
Conector do Painel Frontal	1, 2 × 5Pin, Pitch 2.0mm
Conector de Alimentação (Header)	1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option)

Saída	From Super I/O to Drag RESETCON#
Intervalo	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP	Datasheet
MB2J510-0811	Elkhart Lake	Celeron	N6210	2 / 2	1.20Ghz ~ 2.6Ghz	1.5M	Intel UHD Graphics	6.5W
MB2J510-0821	Elkhart Lake	Celeron	J6412	4 / 4	2.00Ghz ~ 2.60Ghz	1.5M	Intel UHD Graphics	10W
