Płyta główna MB6U419-0900 Series

Model: MB6U419-0900

Total LAN4
LAN Speed2.5G RJ45

Key Specs

CPU
Whiskey Lake / Coffee Lake / Comet lake
Memory
DDR4 SO-DIMM · Max 64GB
LAN
4
Storage
M.2 Mkey, SATA
Board Size
120x200

Products Using This Board (1)

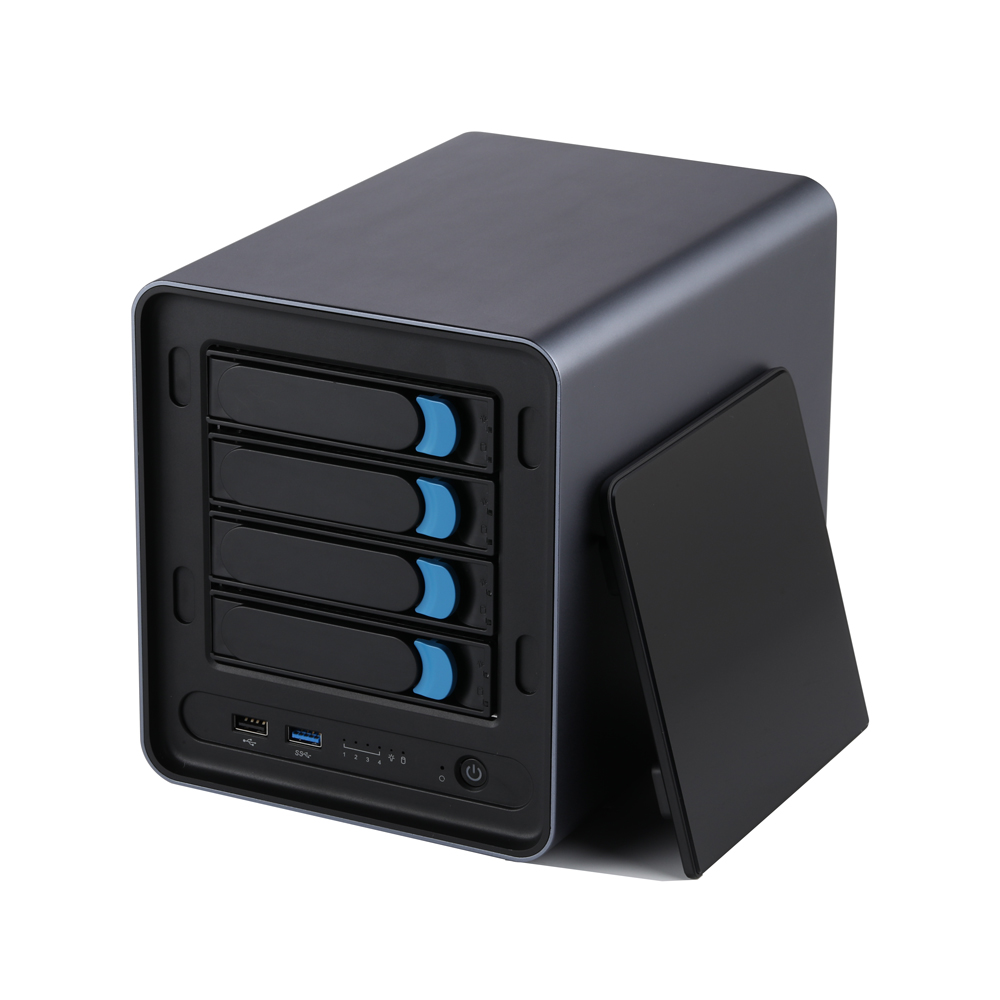

Q30900DS-S14

Q30900DS-S14

Seria NAS do Przechowywania

8365U8565U8665U8140U8260U5205U5305U6405U10110U10210U10310UMB6U419-0912MB6U419-0921MB6U419-0931MB6U419-0951MB6U419-0971MB6U419-0952MB6U419-1011MB6U419-1012MB6U419-1021MB6U419-1031MB6U419-1051MB6U419-1071MB6U419-1072MB6U419-1073IntelWhiskey LakeCoffee LakeComet lakeCeleronPentiumCore i3Core i5Core i74205U4305U5405U8145U8265U10510U10610U10710U10810U

Main Features

  • Intel 8 th Whiskey Lake-U Processor
  • Intel 8 th Coffee Lake-U Processor
  • Intel 10 th Comet lake-U Processor
  • 2 × HDMI
  • 3 × USB 3.0, 1 × USB 2.0, 1 × Type C
  • 2 × M.2
  • 4 × Intel I225-V/I226-V 2.5G LAN

System procesora

CPU• Intel 8 th Whiskey Lake-U Processor • Intel 8 th Coffee Lake-U Processor • Intel 10 th Comet lake-U Processor
ChipsetBy CPU
Wymiary120 × 200mm
Liczba rdzeniBy CPU
Maks. prędkośćBy CPU
Pamięć L2By CPU
BIOSUEFI

Pamięć

TechnologiaDDR4 2133/2400MHz SDRAM
Maks.64GB
Gniazdo (Socket)2 × SO-DIMMs

Grafika

KontrolerBy CPU
Pamięć VRAMShared Memory
DisplayPort0
HDMI2 (Support HDMI 1.4a)
Wiele wyświetlaczyYes

Ethernet

Interfejs100/1000/2500Mbps
Kontroler4 × Intel I225-V/I226-V 2.5G LAN
Złącze4 × RJ-45

Audio

KontrolerNo

Przednie I/O

Przycisk zasilania1 × Power Button, 1 × Reset Button
LED1 × Power LED, 1 × HDD LED
LED1 × LAN LED
USB2 × USB 3.0
USB1 × USB 3.0, 1 × USB 2.0
DC-IN1
Type C1, USB 3.0 and Display Port
HDMI2
Ethernet4

Pamięć masowa

Maks. szybkość transferu danychSATA 3.0 (6.0Gb/S)

Rozszerzenia

M.21 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 4)
M.21 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1)

Złącze wewnętrzne

TPM1 (Option)
PCIe1, PCIe slot (Type: X4,PCIe 3.0 × 1, SATA 3.0 × 2)
Port szeregowy1, 2 × 5Pin, Pitch 2.0mm (Option)
Zworka AutoStartYes, 1 × 3Pin, Pitch 2.54mm
Zworka Clear CMOSYes, 1 × 3Pin, Pitch 2.0mm
Header GPIO1, 2 × 5Pin, Pitch 2.0mm
Wybór zasilania GPIOYes, 1 × 3Pin, Pitch 2.0mm
Złącze USB 2.0 (header)2, 2 × 5Pin, Pitch 2.0mm
Header panelu przedniego1, 2 × 5Pin, Pitch 2.0mm
Złącze zasilania (header)1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option)

Timer Watchdog

WyjścieFrom Super I/O to Drag RESETCON#
Interwał256 Segments,0,1,2,3,,,255 sec/min

Zasilanie

Zasilanie wejściowe12V/19V DC in, 5.5mm/2.5mm

Środowiskowy

Temperatura pracy0-50℃

Akcesoria

AkcesoriaNo

Obsługa systemów operacyjnych

System operacyjnyWindows 10, Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
6-0900 MB Whiskey Lake Celeron 4305U 2 / 2 2.2GHz 2M Intel UHD Graphics 15W
6-0900 MB Whiskey Lake Pentium 5405U 2 / 4 2.3GHz 2M Intel UHD Graphics 15W
6-0900 MB Whiskey Lake Core i3 8145U 2 / 4 2.1GHz ~ 3.9GHz 4M Intel UHD Graphics 15W
6-0900 MB Whiskey Lake Core i5 8265U 4 / 8 1.6GHz ~ 3.9GHz 6M Intel UHD Graphics 15W
6-0900 MB Whiskey Lake Core i7 8565U 4 / 8 1.8GHz ~ 4.6GHz 8M Intel UHD Graphics 15W
6-0900 MB Coffee Lake Core i5 8260U 4 / 8 1.6GHz ~ 3.9GHz 6M Intel UHD Graphics 620 15W
6-0900 MB Comet Lake Celeron 5205U 2 / 2 1.9GHz 2M Intel UHD Graphics 15W
6-0900 MB Comet Lake Celeron 5305U 2 / 2 2.3GHz 2M Intel UHD Graphics 15W
6-0900 MB Comet Lake Pentium 6405U 2 / 4 2.4GHz 2M Intel UHD Graphics 15W
6-0900 MB Comet Lake Core i3 10110U 2 / 4 2.1GHz ~ 4.1GHz 4M Intel UHD Graphics 15W
6-0900 MB Comet Lake Core i5 10210U 4 / 8 1.6GHz ~ 4.2GHz 6M Intel UHD Graphics 15W
6-0900 MB Comet Lake Core i7 10610U 4 / 8 1.8GHz ~ 4.9GHz 8M Intel UHD Graphics 15W
6-0900 MB Comet Lake Core i7 10810U 6 / 12 1.1GHz ~ 4.9GHz 12M Intel UHD Graphics 15W
6U419-1073 MB Comet Lake Core i7 10710U 6 / 12 1.1GHz ~ 4.7GHz 12M Intel UHD Graphics 15W
2U419-1074 MB Comet Lake Core i7 10510U 4 / 8 1.8GHz ~ 4.9GHz 8M Intel UHD Graphics 15W
