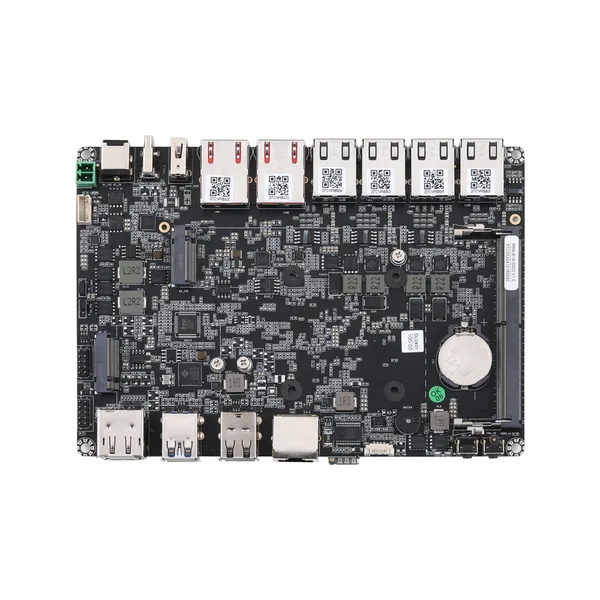

Płyta główna MB4J61Z-0900 Series

Model: MB4J61Z-0900

Total LAN6
LAN Speed2.5G RJ45 / 10G RJ45
Serial Ports1

Key Specs

CPU
Alder lake N / Twin Lake
Memory
DDR5 SO-DIMM · Max 48GB
LAN
6
Storage
M.2 Mkey
Board Size
165x115

Products Using This Board (3)

Q10900H6-S23

Q10900H6-S23

Seria Multi-LAN

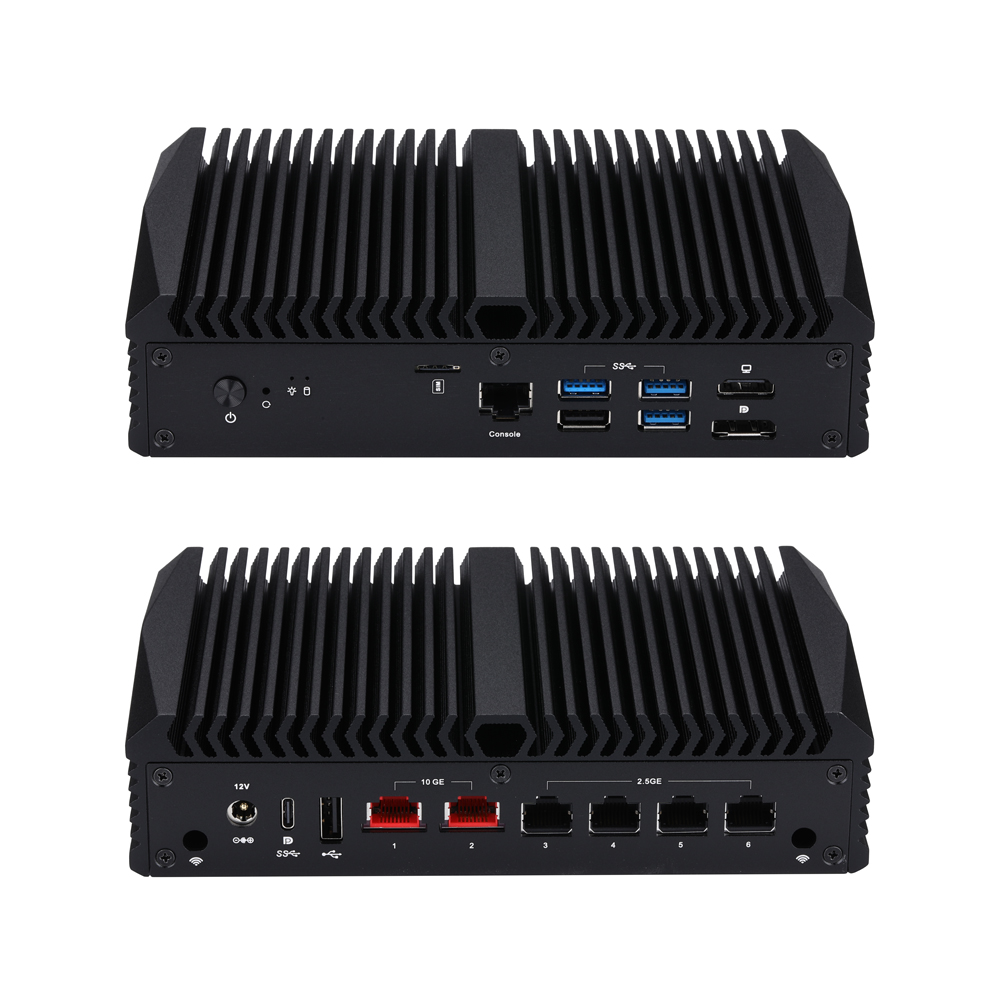

Q10900H6-S13

Q10900H6-S13

Seria Multi-LAN

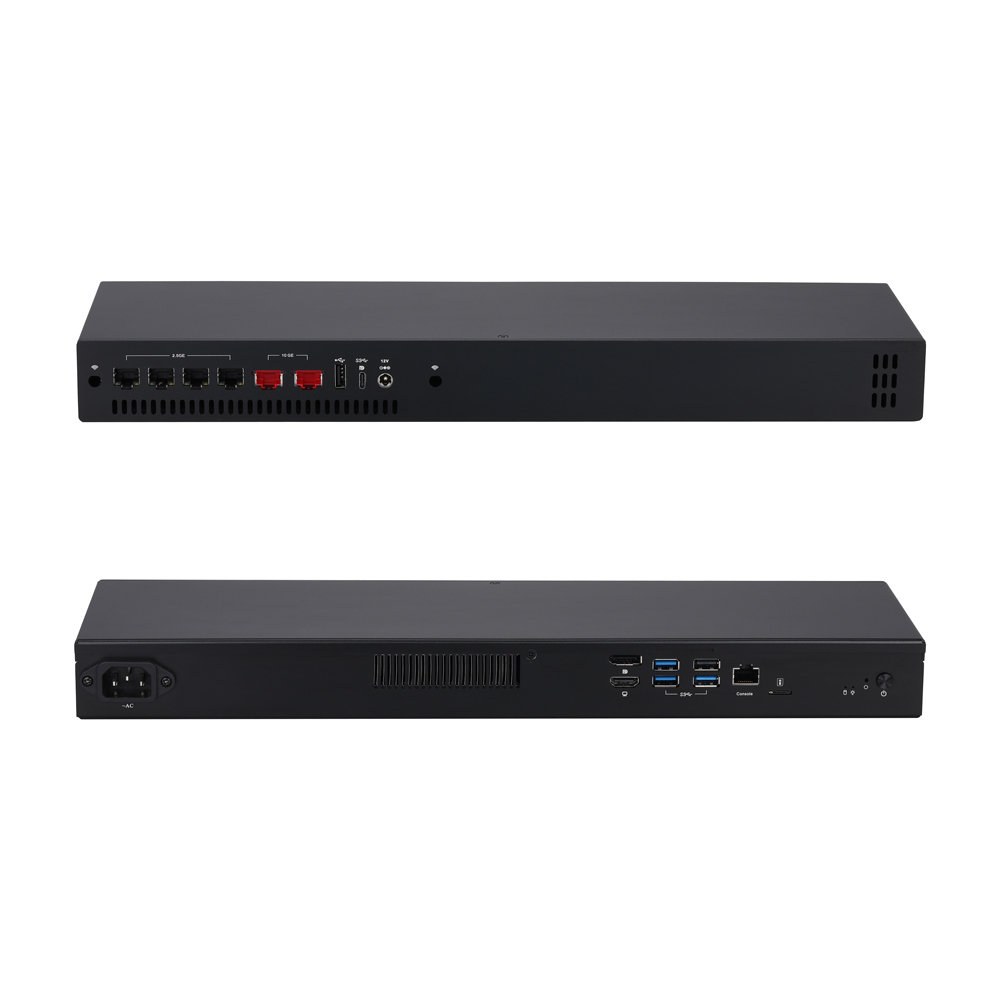

Q10900H6-1U16

Q10900H6-1U16

Seria Multi-LAN

MB4J61Z-0911MB4J61Z-0921MB4J61Z-0922MB4J61Z-0923MB4J61Z-0924MB4J61Z-0931MB4J61Z-0932MB4J61Z-1022MB4J61Z-1023MB4J61Z-1031MB4J61Z-1032IntelAlder Lake-NTwin LakePentiumCeleronATOMX7425EN50N97N100N200N300N305N150N250N350N355

Main Features

  • Intel Alder Lake-N Processor
  • Intel Twin Lake-N Processor
  • 1 × HDMI, 2 × Display Port
  • 1 × Type C,3 × USB 3.0 ,2 × USB 2.0
  • 2 × M.2 ,1 × RS-232 (RJ45)
  • 4× Intel I226-V 2.5G LAN
  • 2× Marvell AQC113C 10G LAN

System procesora

CPUIntel Alder Lake-N Processor Intel Twin Lake-N Processor
ChipsetBy CPU
Wymiary165 × 115mm
Liczba rdzeniBy CPU
PrędkośćBy CPU
Pamięć L2By CPU
BIOSUEFI

Pamięć

TechnologiaDDR5 4800MHz SDRAM
Maks.48GB
Gniazdo (Socket)1 × SO-DIMM

Grafika

KontrolerBy CPU
Pamięć VRAMShared Memory
Type C1× Display Port
HDMI1 (Support HDMI 1.4a)
DisplayPort1
Wiele wyświetlaczyYes

Ethernet

Kontroler4 × I226-V 2.5G LAN
Kontroler2 × Marvell AQC113 10G LAN (10GbE/5GbE/2.5GbE/1GbE)
Złącze6× RJ-45

Audio

KontrolerNo

Przednie I/O

Przycisk zasilania1 × Power Button, 1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB1 × USB 2.0
USB3 × USB 3.0, 1 × USB 2.0
Port szeregowy1 × Connector, RS-232 (RJ-45)
DC-IN1
Type C1, USB 3.0 and Display Port
Ethernet2 × 10G, 4 × 2.5G
Gniazdo SIM1 × Nano Sim Card
Wyświetlacz1× HDMI,1× Display Port

Pamięć masowa

Maks. szybkość transferu danychNo

Rozszerzenia

M.21× M.2 for SSD (M key, Type:2280,PCIe 3.0 × 1)
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052)

Złącze wewnętrzne

SATASATA support via a Converter Card
Złącze zasilania SATA1, 1 × 4Pin, Pitch PH2.0mm
Zworka AutoStartYes, 1 × 3Pin, Pitch 2.0mm
Zworka Clear CMOSYes, 1 × 3Pin, Pitch 2.0mm
Header panelu przedniego1, 2 × 5Pin, Pitch 2.0mm
Złącze USB 2.0 (header)2, 2 × 5Pin, Pitch 2.0mm
Złącze zasilania (header)1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin

Timer Watchdog

WyjścieFrom Super I/O to Drag RESETCON#
Interwał256 Segments,0,1,2,3,,,255 sec/min

Zasilanie

Zasilanie wejściowe12V DC in, 5.5mm/2.5mm

Środowiskowy

Temperatura pracy0-50℃

Akcesoria

AkcesoriaCable for HDD

Obsługa systemów operacyjnych

System operacyjnyUEFI Windows 10, UEFI Linux

Package Contents

  • Motherboard × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB4J61Z-0911 A lder lake-N - N50 2 / - 3.4GHz 6M Intel UHD Graphics 6W
MB4J61Z-0921 Alder lake-N - N97 4 / - 3.6GHz 6M Intel UHD Graphics 12W
MB4J61Z-0922 Alder lake-N - N100 4 / 4 3.4GHz 6M Intel UHD Graphics 6W
MB4J61Z-0923 Alder lake-N - N200 4 / 4 3.7GHz 6M Intel UHD Graphics 6W
MB4J61Z-0924 Alder lake-N Atom X7425E 4 / 4 3.4GHz 6M Intel UHD Graphics 12W
MB4J61Z-0931 Alder lake-N Core i3 N300 8 / 8 3.8GHz 6M Intel UHD Graphics 7W
MB4J61Z-0932 Alder lake-N Core i3 N305 8 / 8 3.8GHz 6M Intel UHD Graphics 15W
MB4J61Z-1022 Twin Lake-N - N150 4 / 4 3.6GHz 6M Intel Graphics 6W
MB4J61Z-1023 Twin Lake-N - N250 4 / 4 3.8GHz 6M Intel Graphics 6W
MB4J61Z-1031 Twin Lake-N Core i3 N350 8 / 8 3.9GHz 6M Intel Graphics 7W
MB4J61Z-1032 Twin Lake-N Core i3 N355 8 / 8 3.9GHz 6M Intel Graphics 15W
