마더보드 MB4J61X-090A 시리즈

Model: MB4J61X-090A

Total LAN6
LAN Speed2.5G RJ45 / 10G RJ45 / 10G SFP+
Serial Ports1

Key Specs

CPU
Alder lake N / Twin Lake
Memory
DDR5 SO-DIMM · Max 48GB
LAN
6
Storage
M.2 Mkey
Board Size
165x115

Products Using This Board (3)

Q10900U6-S23

Q10900U6-S23

멀티 LAN 시리즈

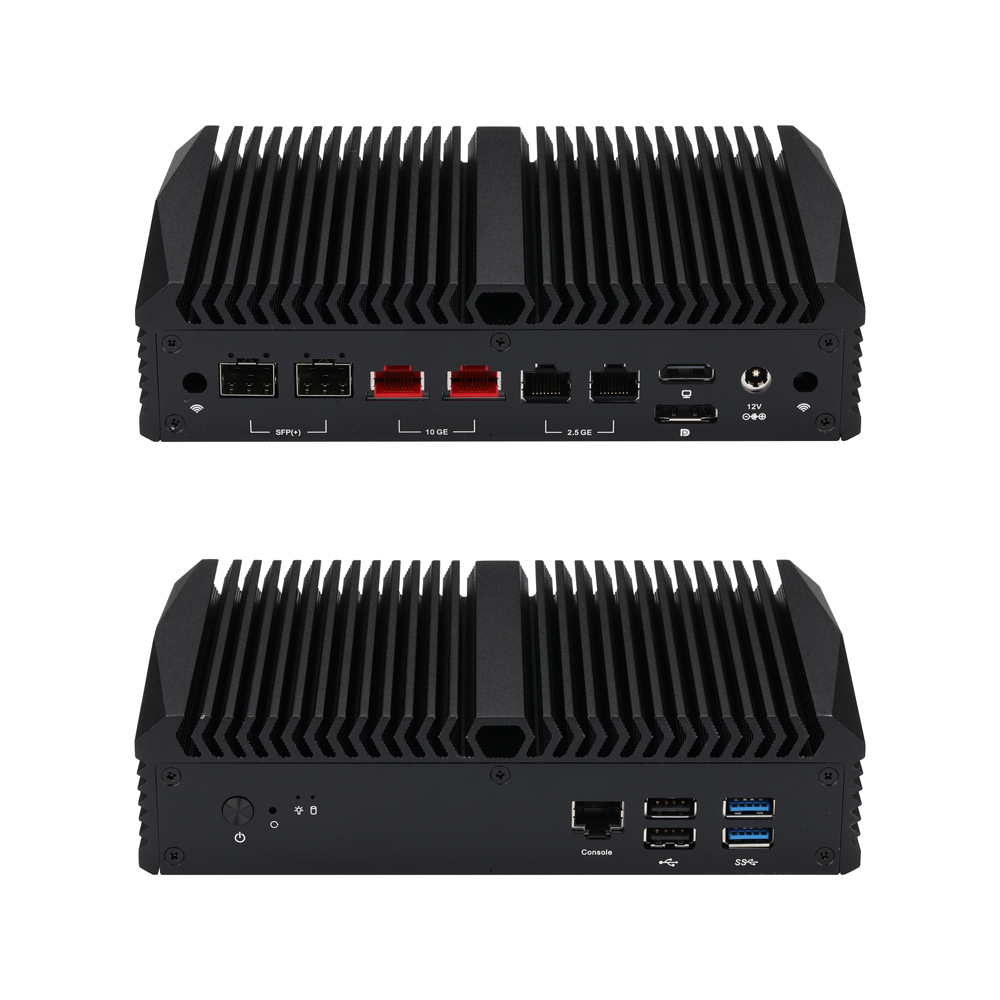

Q10900U6-S13

Q10900U6-S13

멀티 LAN 시리즈

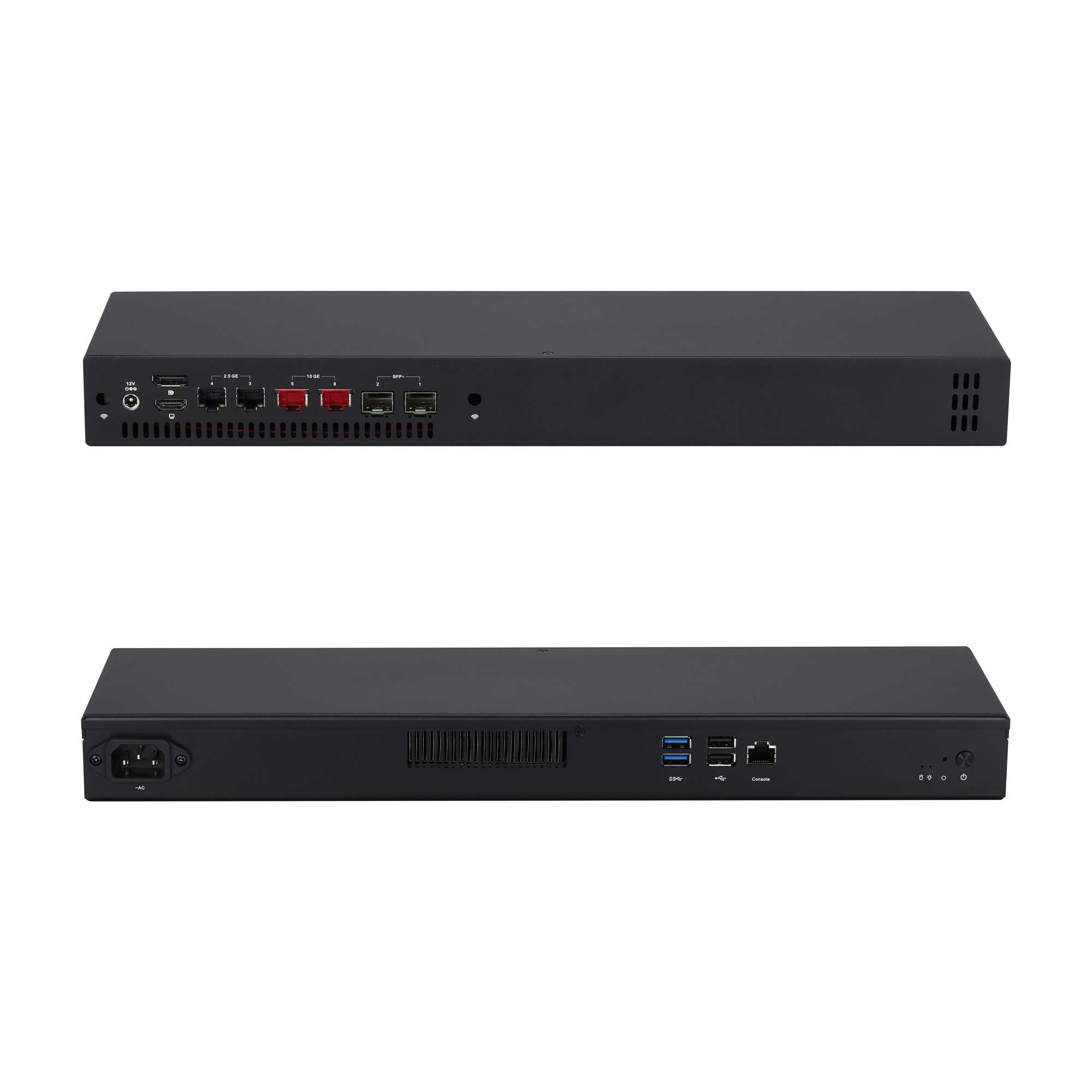

Q10900U6-1U13

Q10900U6-1U13

멀티 LAN 시리즈

MB4J61X-091AMB4J61X-092AMB4J61X-092BMB4J61X-092CMB4J61X-092DMB4J61X-093AMB4J61X-093BMB4J61X-102BMB4J61X-102CMB4J61X-103AMB4J61X-103BIntelAlder Lake-NTwin LakePentiumCeleronATOMX7425EN50N97N100N200N300N305N150N250N350N355

Main Features

  • Intel Alder Lake-N Processor
  • Intel Twin Lake-N Processor
  • 1 × HDMI, 1 × Display Port
  • 2 × USB 3.0 ,2 × USB 2.0
  • 2 × M.2 ,1 × RS-232 (RJ45)
  • 2× Intel I226-V 2.5G LAN
  • 2, Intel X540 10G LAN
  • 2, Intel X710-BM2 10G SFP+

프로세서 시스템

CPUIntel Alder Lake-N Processor Intel Twin Lake-N Processor
칩셋By CPU
크기165 × 115mm
코어 수By CPU
속도By CPU
L2 캐시By CPU
BIOSUEFI

메모리

기술DDR5 4800MHz SDRAM
최대48GB
소켓1 × SO-DIMM

그래픽

컨트롤러By CPU
VRAMShared Memory
HDMI1 (Support HDMI 1.4a)
디스플레이 포트1
멀티 디스플레이Yes

이더넷

RJ45/2.5G2 × Intel I226-V 2.5G LAN
RJ45/10G2, Intel X540 10G LAN (10GbE/1GbE) Both interfaces support up to 12Gbps
SFP+ / 10G2, Intel X710-BM2 10G SFP+ (10GbE/1GbE)

오디오

컨트롤러No

전면 I/O

전원 버튼1 × Power Button, 1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB2 × USB 3.0, 2 × USB 2.0
시리얼 포트1 × Connector, RS-232 (RJ-45)
DC-IN1
디스플레이1× HDMI,1× Display Port
SFP+2 × 10G SFP+
이더넷2 × 10G
이더넷2 × 2.5G

스토리지

최대 데이터 전송률No

확장

M.21× M.2 for SSD (M key, Type:2280,PCIe 3.0 × 1)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)

내부 커넥터

SATASATA support via a Converter Card
SATA 전원 커넥터1, 1 × 4Pin, Pitch PH2.0mm
자동 시작 점퍼Yes, 1 × 3Pin, Pitch 2.0mm
CMOS 클리어 점퍼Yes, 1 × 3Pin, Pitch 2.0mm
전면 패널 헤더1, 2 × 5Pin, Pitch 2.0mm
USB 2.0 헤더2, 2 × 5Pin, Pitch 2.0mm
USB 3.0 헤더1, 2 × 5Pin, Pitch 2.0mm (Option)
전원 헤더1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin

Watchdog 타이머

출력From Super I/O to Drag RESETCON#
간격256 Segments,0,1,2,3,,,255 sec/min

전원

입력 전원12V DC in, 5.5mm/2.5mm

환경

작동 온도0-50℃

액세서리

액세서리Cable for HDD

OS 지원

OSUEFI Windows 10, UEFI Linux

Package Contents

  • Motherboard × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB4J61X-091A A lder lake-N - N50 2 / - 3.4GHz 6M Intel UHD Graphics 6W
MB4J61X-092A Alder lake-N - N97 4 / - 3.6GHz 6M Intel UHD Graphics 12W
MB4J61X-092B Alder lake-N - N100 4 / 4 3.4GHz 6M Intel UHD Graphics 6W
MB4J61X-092C Alder lake-N - N200 4 / 4 3.7GHz 6M Intel UHD Graphics 6W
MB4J61X-092D Alder lake-N Atom X7425E 4 / 4 3.4GHz 6M Intel UHD Graphics 12W
MB4J61X-093A Alder lake-N Core i3 N300 8 / 8 3.8GHz 6M Intel UHD Graphics 7W
MB4J61X-093B Alder lake-N Core i3 N305 8 / 8 3.8GHz 6M Intel UHD Graphics 15W
MB4J61X-102B Twin Lake-N - N150 4 / 4 3.6GHz 6M Intel Graphics 6W
MB4J61X-102C Twin Lake-N - N250 4 / 4 3.8GHz 6M Intel Graphics 6W
MB4J61X-103A Twin Lake-N Core i3 N350 8 / 8 3.9GHz 6M Intel Graphics 7W
MB4J61X-103B Twin Lake-N Core i3 N355 8 / 8 3.9GHz 6M Intel Graphics 15W
