Q10531-S19 image 11 / 8

Mini PC Seri Q10531 S19

Model: Q10531-S19

Total LAN1
LAN Speed1G RJ45

Key Specs

CPU
Gemini Lake / Gemini Lake-R
Memory
DDR4 SO-DIMM · Max 16GB
LAN
1
Storage
SATA

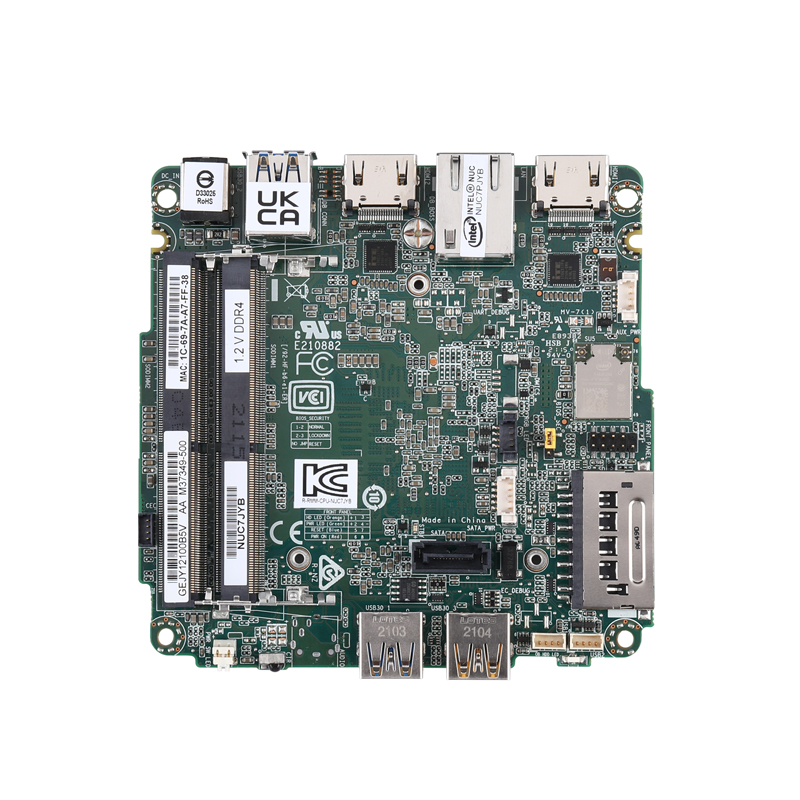

Based on Motherboard

NUC7JYB

NUC7JYB

View motherboard →

Q10531NQ10531IntelGemini LakeGemini Lake-RPentiumCeleronATOMN4000N4100J4005J4105N5000J5005N4020N4120J4025J4125N5030J5040

Main Features

  • Intel Pentium J5005 Gemini Lake Processor
  • Intel UHD Graphics 605
  • 2 × HDMI
  • 4 × USB 3.0
  • 1 × SATA
  • 1 × Realtek Gigabit LAN

Sistem Prosesor

CPUIntel Gemini Lake Processor Default Pentium J5005 Quad Cores Processor 1.5GHz, up to 2.8GHz, 4M Cache
TDP CPU10W
Memori2 × DDR4 SO-DIMM Sockets (Up to 16G) Only Supports a Single 1G Memory Chip
ChipsetBy CPU
GrafisIntel UHD Graphics 605
Chipset LAN1 × R ealtek Gigabit LAN
AudioNo
Watch DogNo

I/O Depan

USB2 × USB 3.0
DC-IN1
Tampilan2 × HDMI 2.0a
Ethernet1

I/O Belakang

USB2 × USB 3.0
Tombol Daya1
LED1 × Power LED,1 × HDD LED
IRConsumer Infrared (CIR) sensor

I/O Samping

Kartu SDXC1 × SDXC card reader slot

Penyimpanan

Tipe1 × 2.5-inch HDD/SSD

Ekspansi

Wi-FiIntel Wireless-AC 9462-D2W wireless LAN module，Integrated
SATA1, SATA 3.0 (6.0Gb/S)
Konektor Daya SATA1,1 × 4Pin, Pitch 1.25mm
Jumper Hapus CMOSYes,1 × 3Pin, Pitch 1.25mm
Header USB 2.02,1 × 4Pin, Pitch 1.25mm
Header Panel Depan1, 2 × 5Pin, Pitch 1.25mm
Konektor Kipas CPU1, 1 × 4Pin, Pitch 1.25mm

Daya

Adaptor Daya19V2.1A
DC Jack5.5mm, 2.5mm

Lingkungan

Suhu Operasi0°C~50°C
Suhu Non-Operasi-20°C~80°C
Kelembaban10%~90%

Mekanis

BahanAluminium Alloy
Dimensi115 × 111 × 46mm
Berat0.44kg
PemasanganVESA Mounting Bracket
Dimensi Kemasan261 × 218 × 75mm
Kunci KensingtonY es
Mode PendinginFan

Dukungan OS

Sistem OperasiWindows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q10531-S19 CurrentGemini Lake Pentium J5005 4 / 4 1.5GHz ~ 2.8GHz 4M Intel UHD Graphics 605 10W
