MB4C911-0300 image 11 / 6

Motherboard Seri MB4C911-0300

Model: MB4C911-0300

Total LAN9
LAN Speed2.5G RJ45 / 10G SFP+
Serial Ports1

Key Specs

CPU
Denverton
Memory
DDR4 SO-DIMM · Max 64GB
LAN
9
Storage
M.2 Mkey, SATA, Mini SAS
Board Size
165x115

Products Using This Board (3)

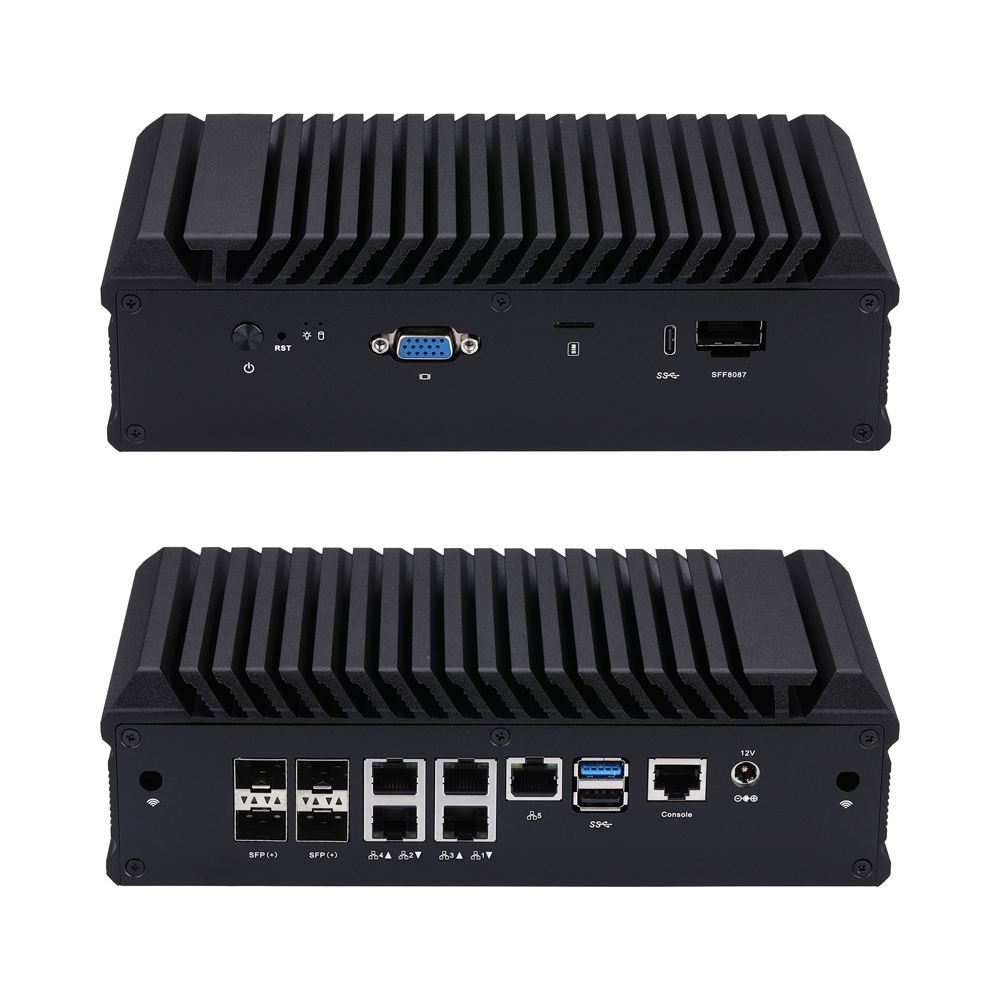

Q20300S9-S20

Q20300S9-S20

Seri Multi-LAN

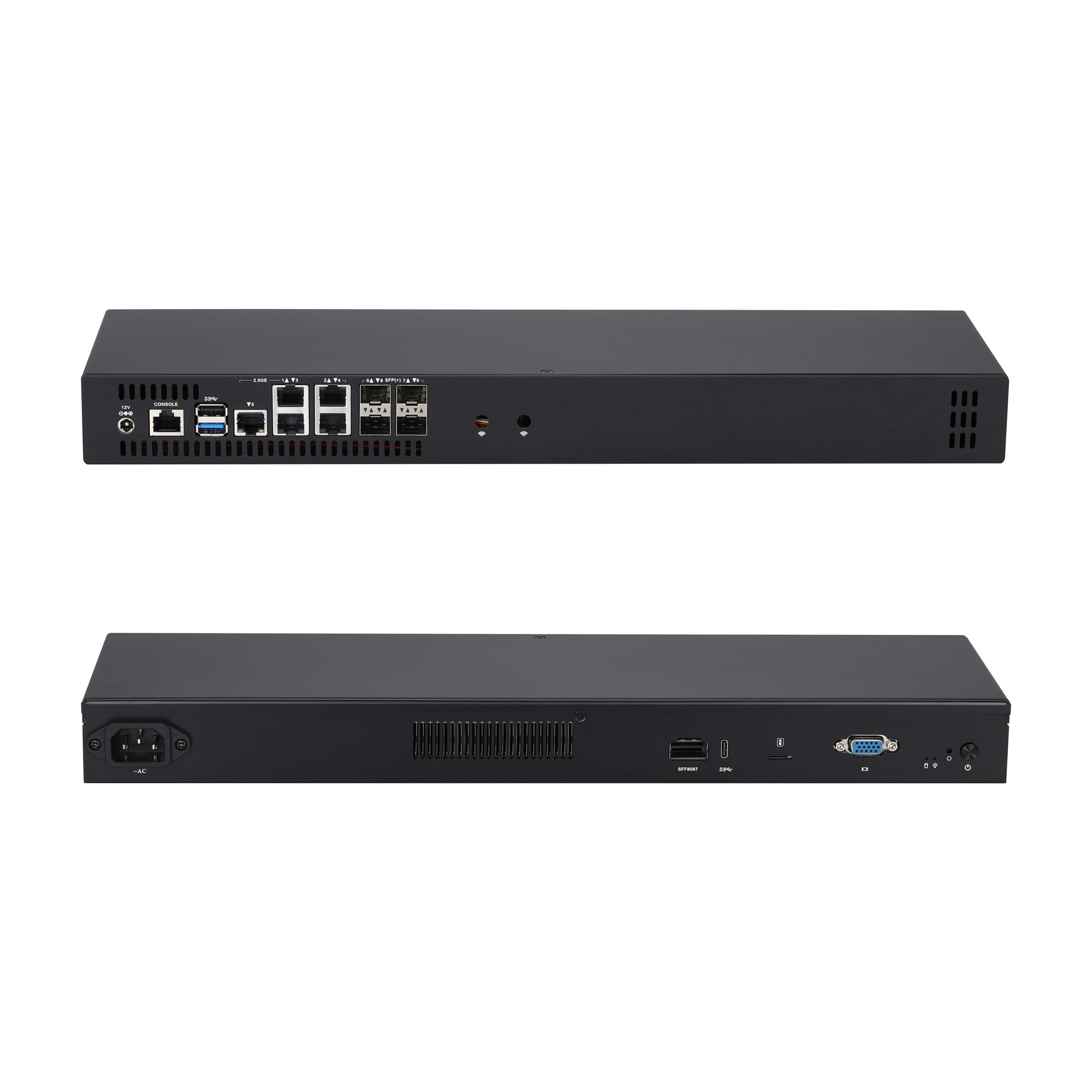

Q20300S9-1U11

Q20300S9-1U11

Seri Multi-LAN

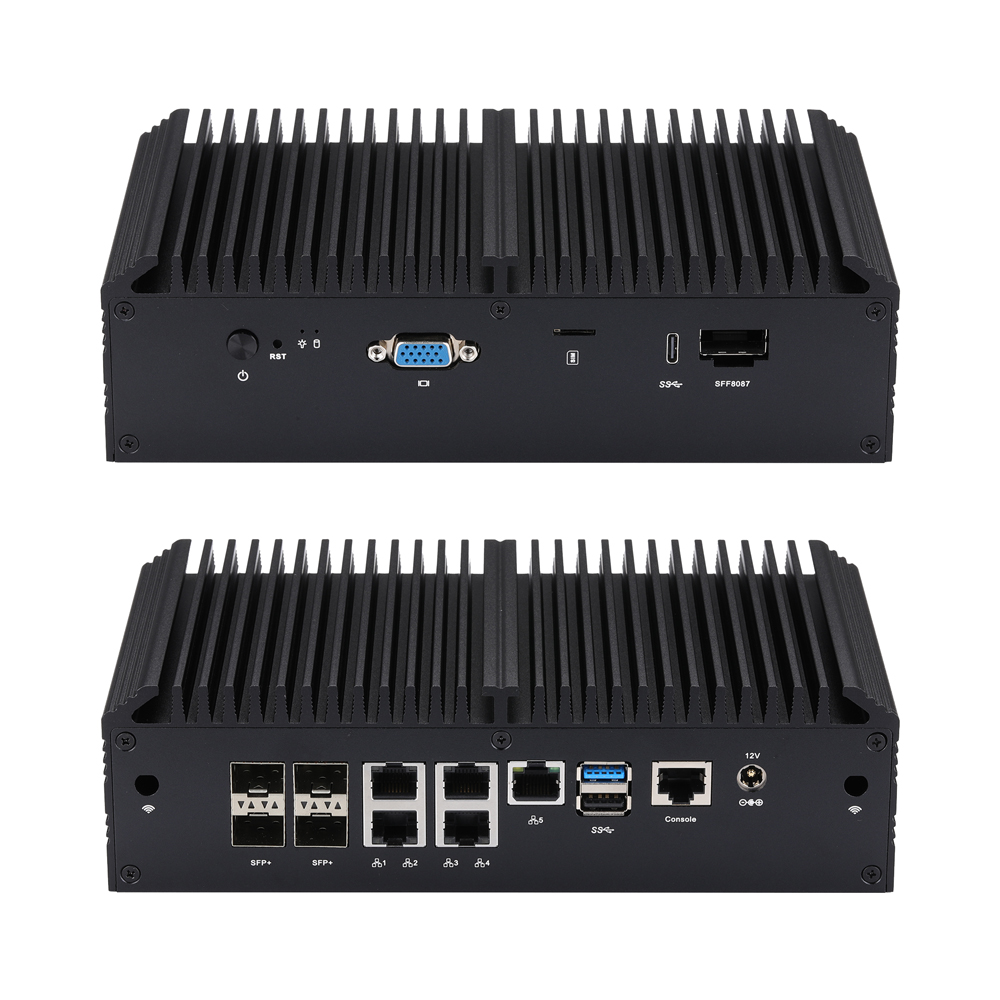

Q20300S9-S10

Q20300S9-S10

Seri Multi-LAN

IntelATOMDenvertonC3338RC3558C3558RC3758C3758RC3808C3908C3958MB4C911-0311MB4C911-0321MB4C911-0322MB4C911-0331MB4C911-0332MB4C911-0342MB4C911-0351MB4C911-0352

Main Features

  • Intel Denverton Processor
  • 1 × VGA, 1 × RS-232 (RJ-45)
  • 1 × USB 3.0, 1 × USB 2.0, 1 × Type C (USB 3.0)
  • 2 × M.2 (PCIe 3.0 × 2)
  • 1 × Mini SAS, 2 × SATA 3.0
  • 4 × 10G SFP(+) (1G SFP)
  • 5 × Intel I225-V/I226-V 2.5G LAN

Sistem Prosesor

CPUIntel Denverton Processor
ChipsetBy CPU
Dimensi165 × 115mm
Jumlah IntiBy CPU
Kecepatan Maks.By CPU
Cache L2By CPU
BIOSUEFI

Memori

TeknologiDDR4 2133MHz SDRAM
Maks.64GB
Soket2 × SO-DIMMs

Grafis

Kontroler-
VRAM-
VGA1

Ethernet

Antarmuka100/1000/2500Mbps
Kontroler5 × Intel I225-V/I226-V 2.5G LAN
Konektor5 × RJ-45
Antarmuka1Gbps/10Gbps
Kontroler4, Intel X553 SFP(+) (10GbE/1GbE)
Konektor4 × SFP(+)

Audio

KontrolerNo

I/O Depan

Tombol Daya1 × Power Button, 1 × Reset Button
LED1 × Power LED, 1 × HDD LED
VGA1
Slot Kartu SIM1
Tipe C1 × Type C (USB 3.0)
Mini SAS1 × Mini SAS (SFF8087)

I/O Belakang

USB1 × USB 3.0, 1 × USB 2.0
DC-IN1
Port Serial1 × RS-232 (RJ-45)
Ethernet5
SFP+4 × 10G SFP+(1G SFP)

Penyimpanan

Kecepatan Transfer Data Maks.SATA 3.0 (6.0Gb/S)

Ekspansi

M.22 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 2)
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052),

Konektor Internal

TPM1 (Option)
Header VGA1, 2 × 5Pin, Pitch 2.0mm
SATA2, SATA 3.0 (6.0Gb/S)
Konektor Daya SATA2, 1 × 4Pin, Pitch PH2.0mm
Slot Kartu SIM1
Jumper AutoStart0
Jumper Hapus CMOS0
Header USB 2.02, 2 × 5Pin, Pitch 2.0mm (Option)
Header Panel Depan1, 2 × 5Pin, Pitch 2.0mm
Header Daya1, 1 × 2Pin, Pitch 5.0mm (Option)

Timer Watchdog

KeluaranFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min

Daya

Input Daya12V DC in, 5.5mm/2.5mm

Lingkungan

Suhu Operasi0-50℃

Aksesori

AksesoriCable for HDD

Dukungan OS

Sistem OperasiWindows 10, Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB4C911-0311 Denverton Atom C3338R 2 / 2 1.80Ghz ~ 2.20Ghz 4M - 10.5W
MB4C911-0321 Denverton Atom C3558R 4 / 4 2.40Ghz 8M - 17W
MB4C911-0322 Denverton Atom C3558 4 / 4 2.20Ghz 8M - 16W
MB4C911-0331 Denverton Atom C3758R 8 / 8 2.40Ghz 16M - 26W
MB4C911-0332 Denverton Atom C3758 8 / 8 2.2Ghz 16M - 25W
MB4C911-0342 Denverton Atom C3808 12 / 12 2.0Ghz 12M - 25W
MB4C911-0351 Denverton Atom C3958 16 / 16 2.00Ghz 16M - 31W
MB4C911-0352 Denverton Atom C3908 16 / 16 2.0Ghz 16M - 31W
MB4C911-0311 - - - - - - - -
MB4C911-0321 - - - - - - - -
MB4C911-0322 - - - - - - - -
MB4C911-0331 - - - - - - - -
MB4C911-0332 - - - - - - - -
MB4C911-0342 - - - - - - - -
MB4C911-0351 - - - - - - - -
MB4C911-0352 - - - - - - - -
