MB3U623-0600 image 11 / 9

Motherboard Seri MB3U623-0600

Model: MB3U623-0600

Total LAN6
LAN Speed1G RJ45
Serial Ports1

Key Specs

CPU
Skylake / Kaby Lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
6
Storage
mSATA, SATA
Board Size
148x104

Products Using This Board (2)

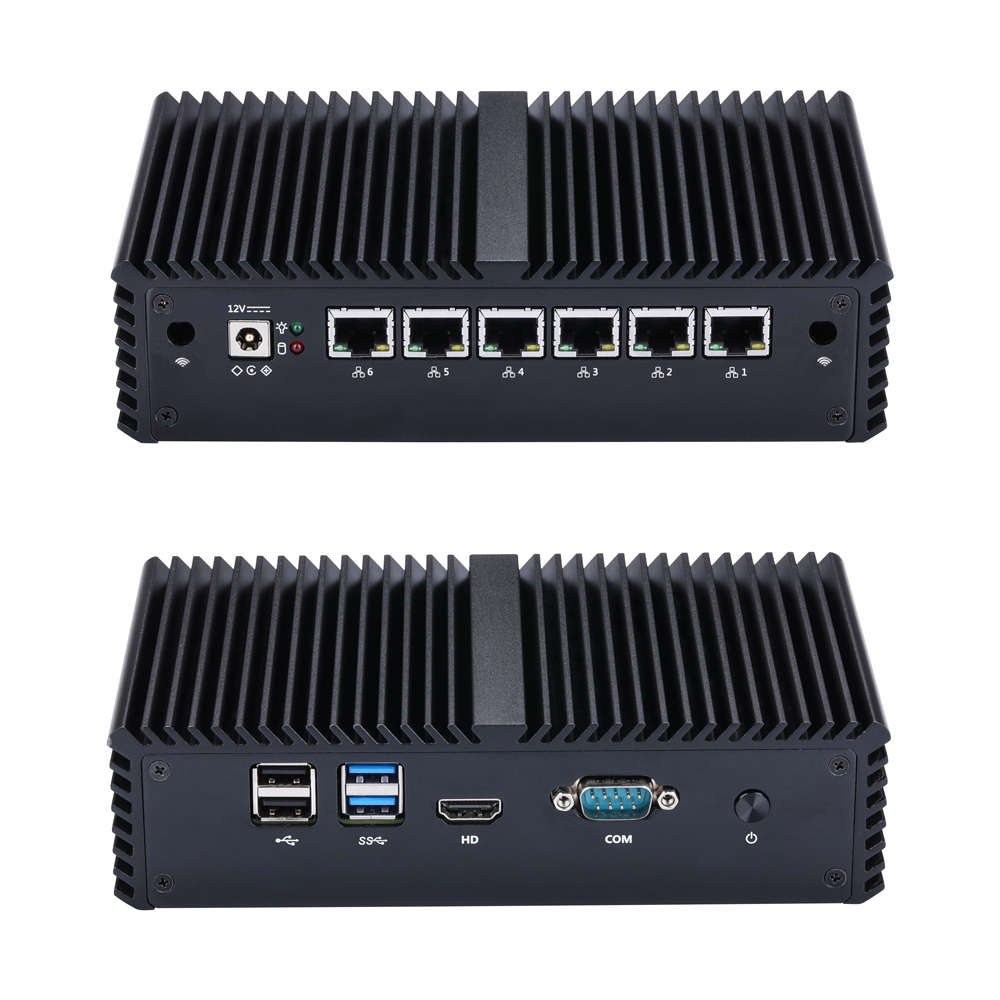

Q30600G6-S05

Q30600G6-S05

Seri Multi-LAN

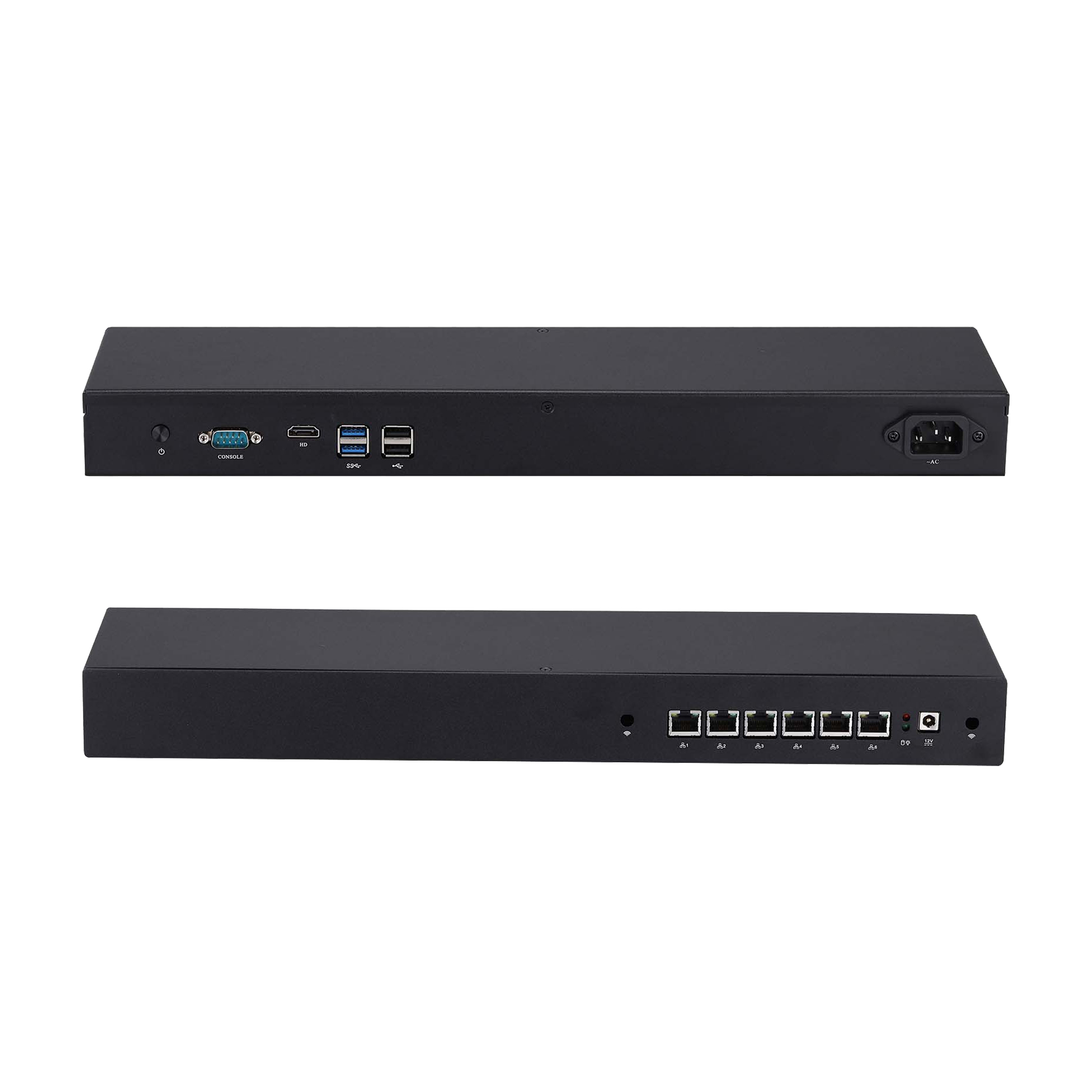

Q30600G6-1U03

Q30600G6-1U03

Seri Multi-LAN

Q3855UG6-PQ3955UG6-PQ6100UG6-PQ6200UG6-PQ6500UG6-PQ3865UG6-PQ3965UG6-PQ7100UG6-PQ7200UG6-PQ7500UG6-PMB3U623-0611MB3U623-0612MB3U623-0631MB3U623-0651MB3U623-0671MB3U623-0711MB3U623-0712MB3U623-0731MB3U623-0751MB3U623-0771IntelSkylakeKaby LakeKaby Lake-RCeleronPentiumCore i3Core i5Core i73855U3955U4405U6006U6100U6200U6300U6500U6600U3865U3965U4415U7020U7100U7130U7200U7500U7560U7660U7600U

Main Features

  • Intel 6 th Skylake-U Processor
  • Intel 7 th Kabylake-U Processor
  • 1 × HDMI, 1 × RS-232
  • 2 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
  • 1 × Mini-PCIe, 1 × mSATA
  • 6 × Intel I211-AT/I210-AT Gigabit LAN

Sistem Prosesor

CPU• Intel 6 th Skylake-U Processor • Intel 7 th Kabylake-U Processor
ChipsetBy CPU
Dimensi148 × 104mm
Jumlah IntiBy CPU
Kecepatan Maks.By CPU
Cache L2By CPU
BIOSUEFI

Memori

TeknologiDDR4 2133MHz SDRAM
Maks.32GB
Soket1 × SO-DIMM

Grafis

KontrolerBy CPU
VRAMShared Memory
VGA1 (Option)
HDMI1 (Support HDMI 1.4a)
Multi TampilanNo

Ethernet

Antarmuka10/100/1000Mbps
Kontroler6 × Intel I211-AT/I210-AT Gigabit LAN
Konektor6 × RJ-45

Audio

KontrolerNo

I/O Depan

Tombol Daya1
USB2 × USB 3.0, 2 × USB 2.0
Port Serial1 × RS-232
HDMI1

I/O Belakang

DC-IN1
LED1 × Power LED,1 × HDD LED
Ethernet6

Penyimpanan

Kecepatan Transfer Data Maks.SATA 3.0 (6.0Gb/S)

Ekspansi

mSATA1 × Full-length Mini PCIe for SSD
Mini-PCIe1 × Mini PCIe Full-length Mini PCIe for 4G Half-length Mini PCIe for Wi-Fi by Default

Konektor Internal

Header VGA1, 2 × 5Pin, Pitch 2.0mm (Option)
Port Serial2, 2 × 5Pin, Pitch 2.0mm, COM1/2 Support 5V/12V (Option)
RS-485COM1/2 can be set up as RS-485 (Option)
SATA1, SATA 3.0 (6.0Gb/S)
Konektor Daya SATA1, 1 × 4Pin, Pitch PH2.0mm
Slot SIM1
Jumper AutoStartYes, 1 × 3Pin, Pitch 2.54mm
Jumper Hapus CMOSYes, 1 × 3Pin, Pitch 2.0mm
Header GPIO1, 2 × 5Pin, Pitch 2.0mm
Header USB 2.02, 2 × 5Pin, Pitch 2.54mm
Header Panel Depan1, 2 × 5Pin, Pitch 2.54mm
Header Daya1, 1 × 2Pin, Pitch 5.5mm (Option)

Timer Watchdog

KeluaranFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min

Daya

Input Daya12V DC in, 5.5mm/2.5mm

Lingkungan

Suhu Operasi0-50℃

Aksesori

AksesoriCable for HDD

Dukungan OS

Sistem OperasiWindows 10, Linux Windows 7 (Only for 6th Gen Skylake)

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB3U623-0611 Q3855UG6-P Skylake Celeron 3855U 2 / 2 1.6GHz 2M Intel HD 510 15W
MB3U623-0612 Q3955UG6-P Skylake Celeron 3955U 2 / 2 2.0GHz 2M Intel HD 510 15W
MB3U623-0631 Q6100UG6-P Skylake Core i3 6100U 2 / 4 2.3GHz 3M Intel HD 520 15W
MB3U623-0651 Q6200UG6-P Skylake Core i5 6200U 2 / 4 2.3GHz ~ 2.8GHz 3M Intel HD 520 15W
MB3U623-0671 Q6500UG6-P Skylake Core i7 6500U 2 / 4 2.5GHz ~ 3.1GHz 4M Intel HD 520 15W
MB3U623-0711 Q3865UG6-P Kaby Lake Celeron 3865U 2 / 2 1.8GHz 2M Intel HD 610 15W
MB3U623-0712 Q3965UG6-P Kaby Lake Celeron 3965U 2 / 2 2.2GHz 2M Intel HD 610 15W
MB3U623-0731 Q7100UG6-P Kaby Lake Core i3 7100U 2 / 4 2.4GHz 3M Intel HD 620 15W
MB3U623-0751 Q7200UG6-P Kaby Lake Core i5 7200U 2 / 4 2.5GHz ~ 3.1GHz 3M Intel HD 620 15W
MB3U623-0771 Q7500UG6-P Kaby Lake Core i7 7500U 2 / 4 2.7GHz ~ 3.5GHz 4M Intel HD 620 15W
