MB2J217-0300 image 11 / 8

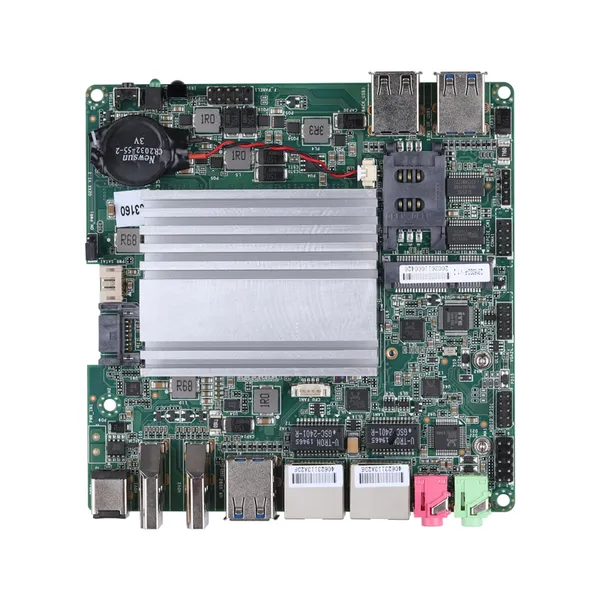

Placa base serie MB2J217-0300

Model: MB2J217-0300

Total LAN2
LAN Speed1G RJ45
Serial Ports1

Key Specs

CPU
Braswell
Memory
DDR3L SO-DIMM · Max 8GB
LAN
2
Storage
mSATA, SATA
Board Size
120x120

Products Using This Board (3)

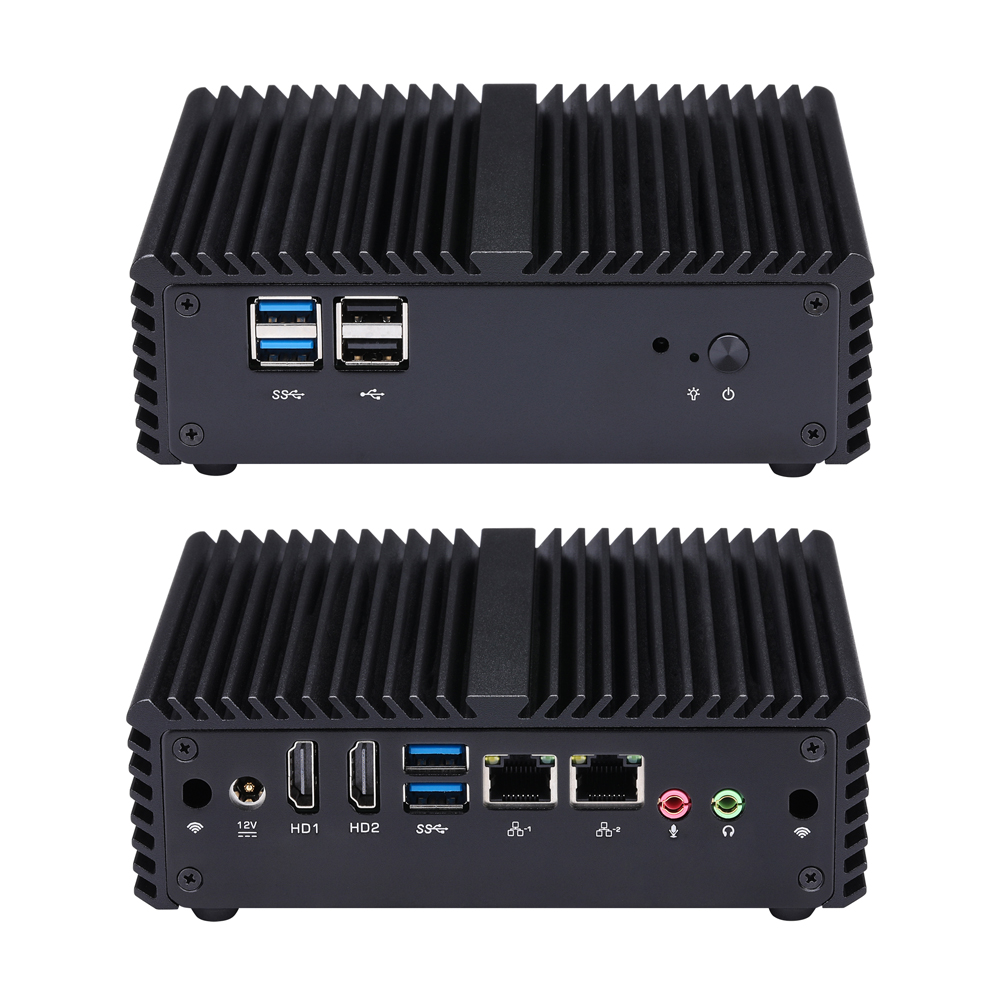

Q10300S-S08

Q10300S-S08

Serie Básica

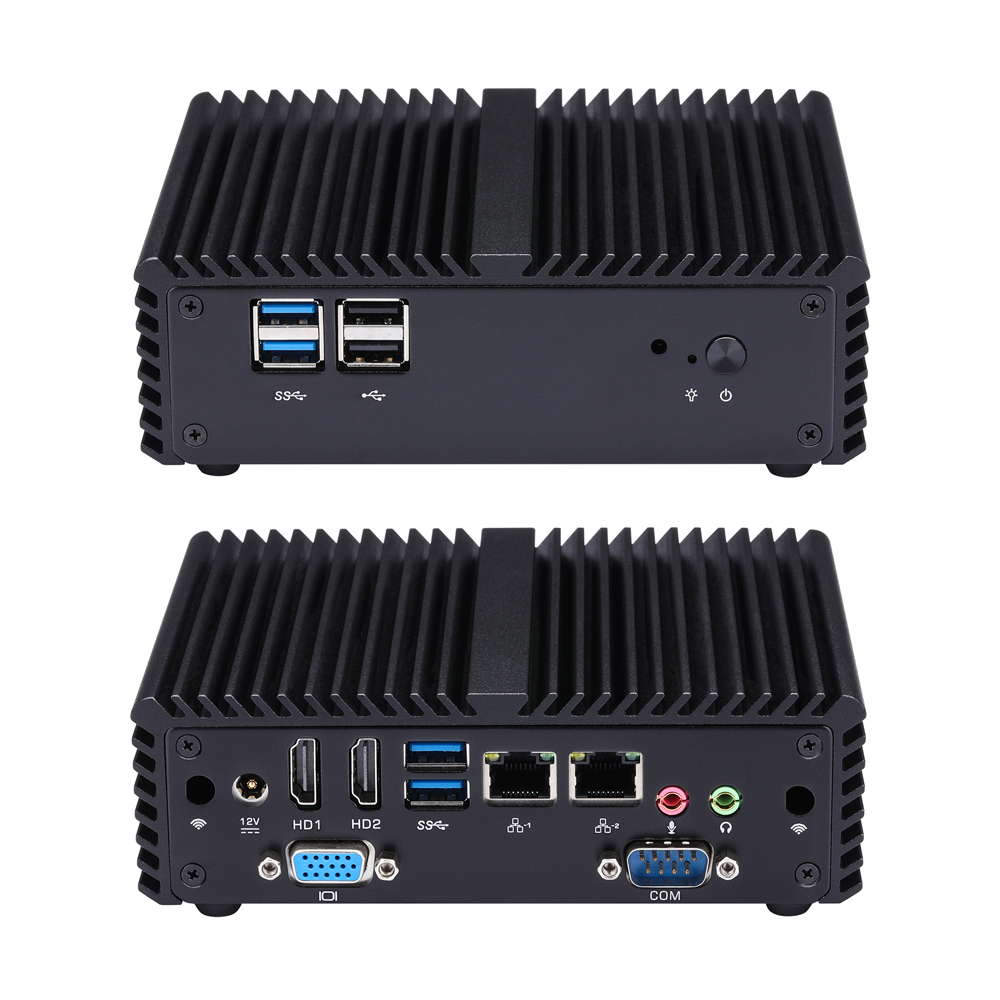

Q10300SV-S08

Q10300SV-S08

Serie Básica

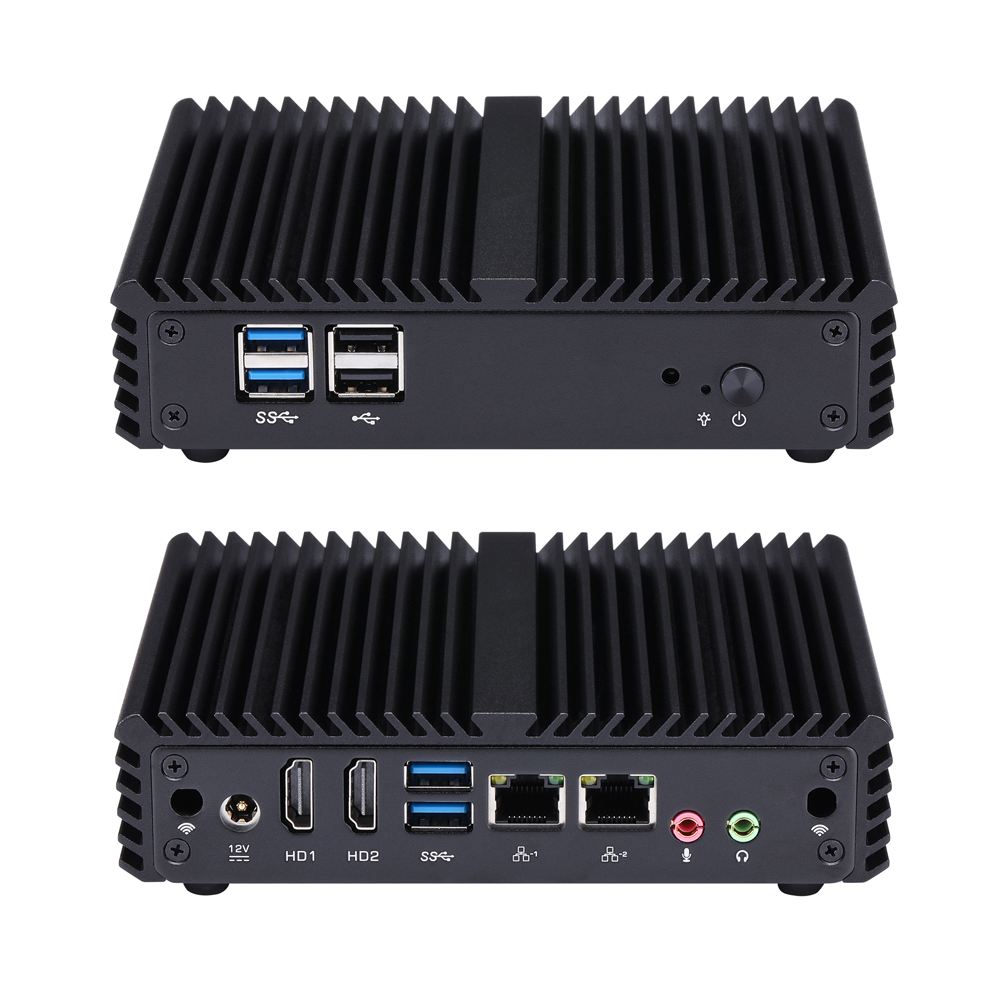

Q10300S-S07

Q10300S-S07

Serie Básica

Q3060G2-PQ3160G2-PQ3710G2-PMB2J217-0311MB2J217-0321MB2J217-0331IntelBraswellPentiumCeleronATOMJ3060N3060J3160N3160J3710N3710

Main Features

  • Intel Braswell Processor
  • 2 × HDMI, 1 × RS-232, 1 × VGA (Header)
  • 4 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
  • 1 × Mini-PCIe, 1 × mSATA
  • 2 × Realtek Gigabit LAN

Sistema de procesador

CPUIntel Braswell Processor
ChipsetBy CPU
Dimensión120 × 120mm
Número de NúcleosBy CPU
Velocidad MáximaBy CPU
Caché L2By CPU
BIOSUEFI

Memoria

TecnologíaDDR3L 1333/1600MHz SDRAM
Máx.8GB
Socket1 × SO-DIMM

Gráficos

ControladorBy CPU
VRAMShared Memory
VGA1 (Header)
HDMI2 (Support HDMI 1.4a)
Pantalla MúltipleYes

Ethernet

Interfaz10/100/1000Mbps
Controlador2 × Realtek Gigabit LAN
Conector2 × RJ-45

Audio

ControladorRealtek HD Audio

E/S Frontal

Botón de encendido1
LED1 × Power LED
USB2 × USB 3.0, 2 × USB 2.0
IR1 (Option)

I/O trasero

USB2 × USB 3.0
Audio2 (Mic-in, Line-out)
Entrada DC1
HDMI2
Ethernet2

Almacenamiento

Tasa de Transferencia MáximaSATA 3.0 (6.0Gb/S)

Expansión

mSATA1 × Full-length Mini PCIe for SSD
Mini-PCIe1 × Mini PCIe, Full-length Mini PCIe for 4G, Half-length Mini PCIe for Wi-Fi by Default

Conector Interno

Header VGA1, 2 × 5Pin, Pitch 2.0mm
Puerto serie1, 2 × 5Pin, Pitch 2.0mm
SATA1, SATA 3.0 (6.0Gb/S)
Conector de alimentación SATA1, 1 × 4Pin, Pitch PH2.0mm
Ranura SIM1
Puente de Arranque AutomáticoYes, 1 × 3Pin, Pitch 2.54mm
Conector GPIO1, 2 × 5Pin, Pitch 2.0mm
Header USB 2.01, 1 × 4Pin, Pitch 2.54mm
Conector del Panel Frontal1, 2 × 5Pin, Pitch 2.54mm
Header de altavoces1, 2 × 5Pin, Pitch 2.54mm
Header de alimentación1, 1 × 2Pin, Pitch 4.2mm (Option)
Entrada de Alimentación12V DC in, 5.5mm/2.5mm

Ambientales

Temperatura de funcionamiento0-50℃

Accesorios

AccesoriosCable for HDD, Cable for Serial Port

Soporte de SO

SOWindows 7 x64, Windows 10, Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1
  • COM Extension Cable × 1
  • VGA Extension Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB2J217-0311 Q3060G2-P Braswell Celeron N3060 2 / 2 1.6Ghz ~ 2.48Ghz 2M Intel HD Graphics 6W
MB2J217-0321 Q3160G2-P Braswell Celeron N3160 4 / 4 1.6Ghz ~ 2.24Ghz 2M Intel HD Graphics 6W
MB2J217-0331 Q3710G2-P Braswell Pentium J3710 4 / 4 1.6Ghz ~ 2.64Ghz 2M Intel HD Graphics 6.5W
