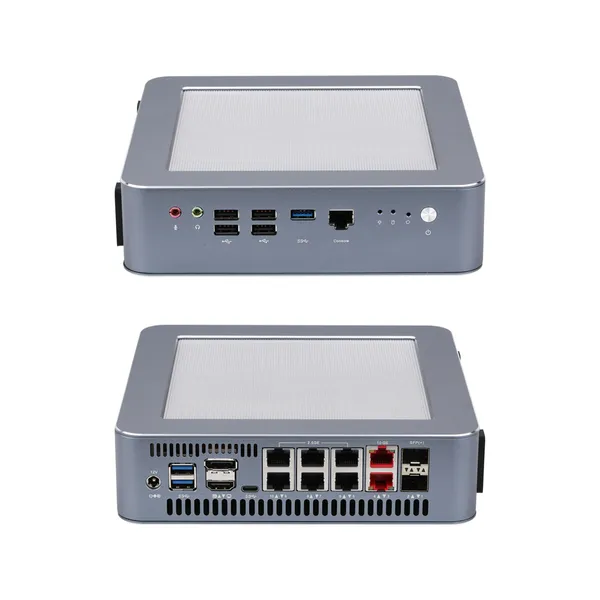

Q31500VT-S18 image 11 / 10

Mini-PC Q31500VT S18 Serie

Model: Q31500VT-S18

Total LAN10
LAN Speed2.5G RJ45 / 10G RJ45 / 10G SFP+
Serial Ports1

Key Specs

CPU
Meteor Lake / Arrow Lake
Memory
DDR5 SO-DIMM · Max 96GB
LAN
10
Storage
M.2 Mkey, SATA

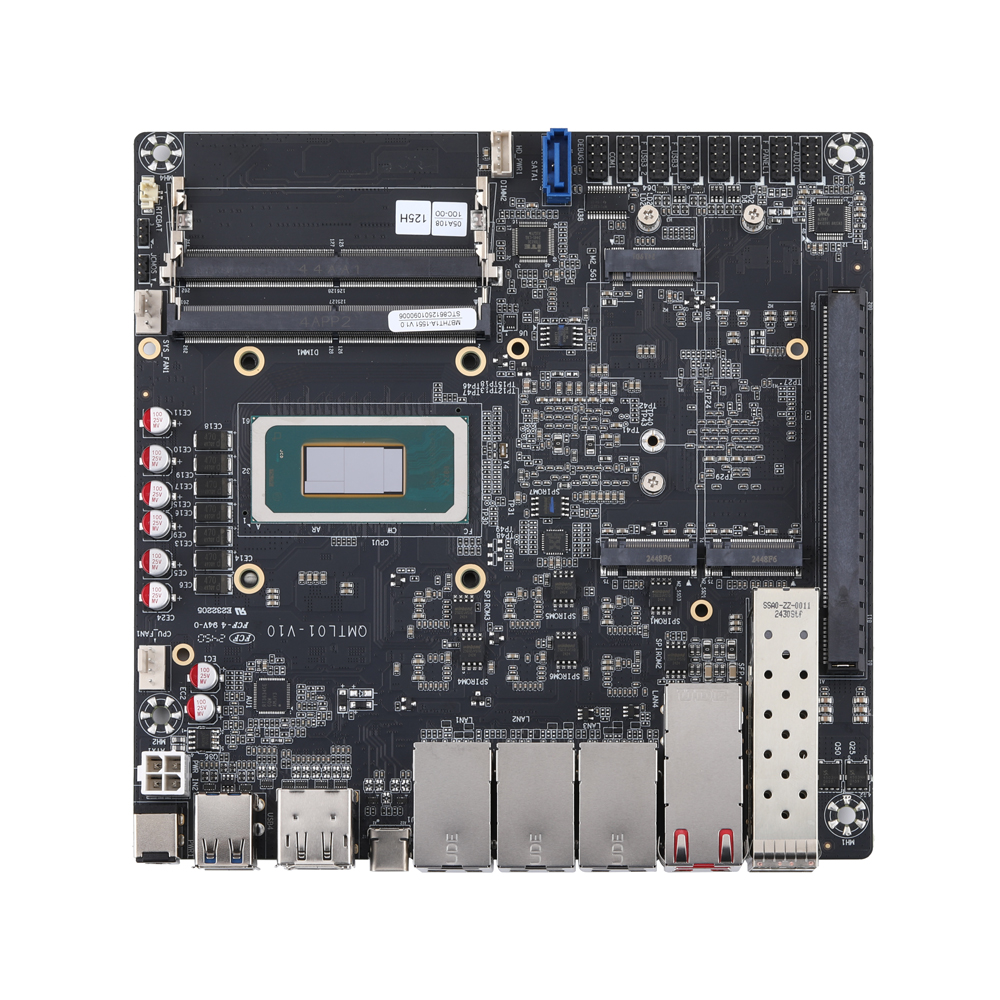

Based on Motherboard

MB7UT1X-150U

MB7UT1X-150U

View motherboard →

Q31551VTQ31571VTQ51551VTQ51571VTIntelMeteor LakeArrow LakeUltra 3Ultra 5Ultra 7Ultra 9125U134U135U155U164U165U125H135H155H165H185H

Main Features

  • Intel Meteor Lake U/H Ultra Processor(Series 1)
  • Intel Arrow Lake U/H Ultra Processor(Series 2)
  • 1 × Display Port, 1 × HDMI
  • 3 × USB 3.0, 4 × USB 2.0, 1 ×Type C（USB 3.0）
  • 2 × M.2, 1 × SATA 3.0
  • 1 × RS-232 (RJ-45)
  • 6 × Intel I226-V 2.5G LAN
  • 2, Intel X550 10G LAN
  • 2, Intel X710-BM2 10G SFP+

Prozessorsystem

CPU• Intel Meteor Lake U/H Ultra Processor(Series 1) • Intel Arrow Lake U/H Ultra Processor(Series 2)
CPU-TDPBy CPU
Speicher2 × DDR5 SO-DIMM Socket (Up to 96G)
ChipsatzBy CPU
GrafikBy CPU
LAN-Chipsatz6 × Intel I226-V 2.5G LAN 2, Intel X550 10G LAN (10GbE/5GbE/2.5GbE/1GbE) 2, Intel X710-BM2 10G SFP+ (10GbE/1GbE)
AudioRealtek HD Audio
WatchdogYes
NPUBy CPU

Front-I/O

Ein-/Ausschalter1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB1 × USB 3.0,4× USB 2.0
Schnittstelle1 × RS-232 Port (RJ-45)
SIM-Kartensteckplatz1
Audio1 × Mic-in, 1 × Line-out

Rückseitige E/A

Stromversorgung1 × DC Jack
Videoausgang1 × Display Port,1 × HDMI
LAN6 × 2.5G LAN 2 × 10G LAN Both interfaces support up to 12Gbps
USB2 × USB 3.0, 1 × Type C (USB 3.0)
SFP+2 × 10G SFP+

Speicher

Typ1 × 2.5-inch HDD/SSD 2 × M.2 for SSD (M key, Type: 2280)

Erweiterung

M.21 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4) 1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 1) 1 × M.2 for 4G/5G (B key, Type: 3042/3052)
AutoStart-JumperYes,1 × 3Pin, Pitch 2.0mm
PCIe1, PCIe slot (Type:X16, PCIe 5.0 × 8)
CMOS-LöschjumperYes,1 × 3Pin, Pitch 2.0mm

Stromversorgung

Netzteil19V4.74A
Gleichspannungsbuchse5.5mm, 2.5mm

Umgebungsbedingungen

Betriebstemperatur0°C~50°C
Nichtbetriebstemperatur-20°C~80°C
Luftfeuchtigkeit10%~90%

Mechanik

MaterialAluminium Alloy
Abmessungen200 × 200 × 53mm
Gewicht1.75kg
MontageVESA Mounting Bracket
Verpackungsmaße285 × 260 × 120mm
Kensington-SchlossYes
KühlungsartFan

OS-Unterstützung

BetriebssystemUEFI Windows 10, UEFI Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPP-CoresE-CoresDatasheet
Q31551VT-S18 Meteor Lake Core Ultra 5 125U 12 / 14 1.30 GHz ~ 4.30 GHz 12M Intel Graphics 15-57W 2 8
Q31571VT-S18 Meteor Lake Core Ultra 7 155U 12 / 14 1.70 GHz ~ 4.80 GHz 12M Intel Graphics 15-57W 2 8
Q51551VT-S18 Meteor Lake Core Ultra 5 125H 14 / 18 1.20 GHz ~ 4.50 GHz 18M I ntel Arc graphics 28-115W 4 8
Q51571VT-S18 Meteor Lake Core Ultra 7 155H 16 / 22 1.40 GHz ~ 4.80 GHz 24M Intel Arc graphics 28-115W 6 8
