Qotom

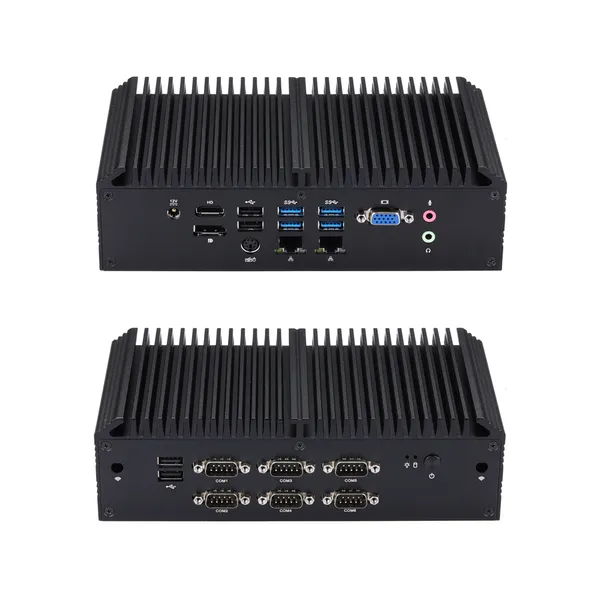

Q30900X-S10 image 11 / 8

Mini-PC Q30900X S10 Serie

Model: Q30900X-S10

Total LAN2
LAN Speed2.5G RJ45
Serial Ports6

Key Specs

CPU
Whiskey Lake / Coffee Lake / Comet lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
2
Storage
M.2 Mkey, SATA

Based on Motherboard

MB4U260-0900

MB4U260-0900

View motherboard →

Q30912XQ30921XQ30931XQ30951XQ30971XQ30952XQ31011XQ31012XQ31021XQ31031XQ31051XQ31071XQ31072XQ31073XIntelWhiskey LakeCoffee LakeComet lakeCeleronPentiumCore i3Core i5Core i74205U4305U5405U8145U8265U8365U8565U8665U8140U8260U5205U5305U6405U10110U10210U10310U10510U10610U10710U10810U

Main Features

  • Intel 8 th Whiskey Lake-U Processor
  • Intel 8 th Coffee Lake-U Processor
  • Intel 10 th Comet lake-U Processor
  • 1 × Display Port, 1 × HDMI, 1 × VGA
  • 4 × USB 3.0, 4 × USB 2.0
  • 2 × M.2, 1 × Mini PCIe, 1 × SATA 3.0
  • 6 × RS-232, 1 × PS/2
  • 2 × Intel I225-V/I226-V 2.5G LAN

Prozessorsystem

CPU• Intel 8 th Whiskey Lake-U Processor • Intel 8 th Coffee Lake-U Processor • Intel 10 th Comet lake-U Processor
CPU-TDPBy CPU
Speicher1 × DDR 4 SO-DIMM Socket (Up to 32 G,21 33/24 00MHz)
ChipsatzBy CPU
GrafikBy CPU
LAN-Chipsatz2 × Intel I225-V/I226-V 2.5G LAN
AudioRealtek HD Audio
WatchdogYes

Front-I/O

Ein-/Ausschalter1
LED1 × Power LED,1 × HDD LED
USB2 × USB 2.0 (Not for 5405U)
Schnittstelle6 × RS-232 (COM1/2 can be set up as RS-485,Support 5V/12V)

Rückseitige E/A

Stromversorgung1 × DC Jack
Videoausgang1 × Display Port,1 × HDMI,1 × VGA
LAN2 × Intel I225-V/I226-V 2.5G LAN
USB4 × USB 3.0,2 × USB 2.0
Audio1 × Mic-in,1 × Line-out
PS/21 × PS/2 (Mouse or Keyboard)

Speicher

Typ1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280)

Erweiterung

Mini-PCIe1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi
M.21 × M.2 for SSD (M key,Type: 2280) 1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM-Kartensteckplatz1
AutoStart-JumperYes,1 × 3Pin, Pitch 2.0mm
DC-EingangNo
CMOS-LöschjumperYes,1 × 3Pin, Pitch 2.0mm
GPIO1,2 × 5Pin, Pitch 2.0mm
RS-4852

Stromversorgung

Netzteil12V3A
Gleichspannungsbuchse5.5mm, 2.5mm

Umgebungsbedingungen

Betriebstemperatur0°C~50°C
Nichtbetriebstemperatur-20°C~80°C
Luftfeuchtigkeit10%~90%

Mechanik

MaterialAluminium Alloy
Abmessungen217 × 122 × 62mm
Gewicht1.44kg
MontageVESA Mounting Bracket
Verpackungsmaße285 × 260 × 93mm
Kensington-SchlossNo
KühlungsartFanless Design

OS-Unterstützung

BetriebssystemWindows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q30912X-S10 Q1012X Whiskey Lake Celeron 4305U 2 / 2 2.2GHz 2M Intel UHD Graphics 15W
Q30921X-S10 Q1020X Whiskey Lake Pentium 5405U 2 / 4 2.3GHz 2M Intel UHD Graphics 15W
Q30931X-S10 Q1030X Whiskey Lake Core i3 8145U 2 / 4 2.1GHz ~ 3.9GHz 4M Intel UHD Graphics 15W
Q30951X-S10 Q1051X Whiskey Lake Core i5 8265U 4 / 8 1.6GHz ~ 3.9GHz 6M Intel UHD Graphics 15W
Q30971X-S10 Q1070X Whiskey Lake Core i7 8565U 4 / 8 1.8GHz ~ 4.6GHz 8M Intel UHD Graphics 15W
Q30952X-S10 Q1052X Coffee Lake Core i5 8260U 4 / 8 1.6GHz ~ 3.9GHz 6M Intel UHD Graphics 620 15W
Q31011X-S10 Q1015X Comet Lake Celeron 5205U 2 / 2 1.9GHz 2M Intel UHD Graphics 15W
Q31012X-S10 Q1016X Comet Lake Celeron 5305U 2 / 2 2.3GHz 2M Intel UHD Graphics 15W
Q31021X-S10 Q1025X Comet Lake Pentium 6405U 2 / 4 2.4GHz 2M Intel UHD Graphics 15W
Q31031X-S10 Q1035X Comet Lake Core i3 10110U 2 / 4 2.1GHz ~ 4.1GHz 4M Intel UHD Graphics 15W
Q31051X-S10 Q1055X Comet Lake Core i5 10210U 4 / 8 1.6GHz ~ 4.2GHz 6M Intel UHD Graphics 15W
Q31071X-S10 Q1075X Comet Lake Core i7 10610U 4 / 8 1.8GHz ~ 4.9GHz 8M Intel UHD Graphics 15W
Q31072X-S10 Q1076X Comet Lake Core i7 10810U 6 / 12 1.1GHz ~ 4.9GHz 12M Intel UHD Graphics 15W
Q31073X-S10 Q1077X Comet Lake Core i7 10710U 6 / 12 1.1GHz ~ 4.7GHz 12M Intel UHD Graphics 15W
Q31074X-S10 Q1078X Comet Lake Core i7 10510U 4 / 8 1.8GHz ~ 4.9GHz 8M Intel UHD Graphics 15W
