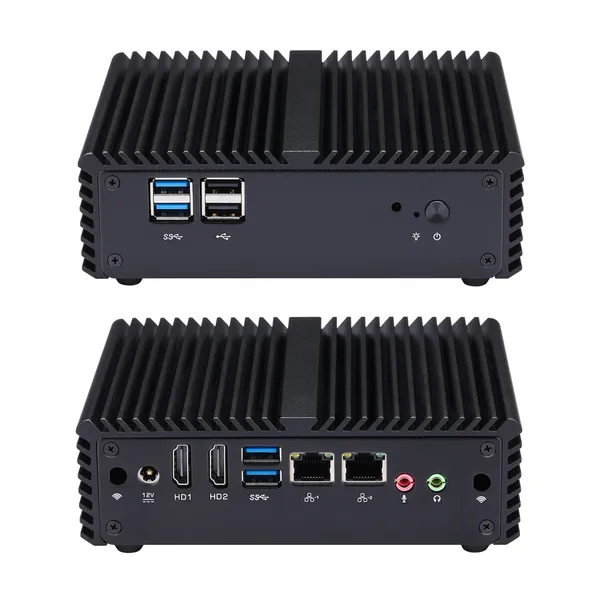

Q10300S-S08 image 11 / 7

Mini-PC Q10300S S08 Serie

Model: Q10300S-S08

Total LAN2
LAN Speed1G RJ45

Key Specs

CPU
Braswell
Memory
DDR3L SO-DIMM · Max 8GB
LAN
2
Storage
mSATA, SATA

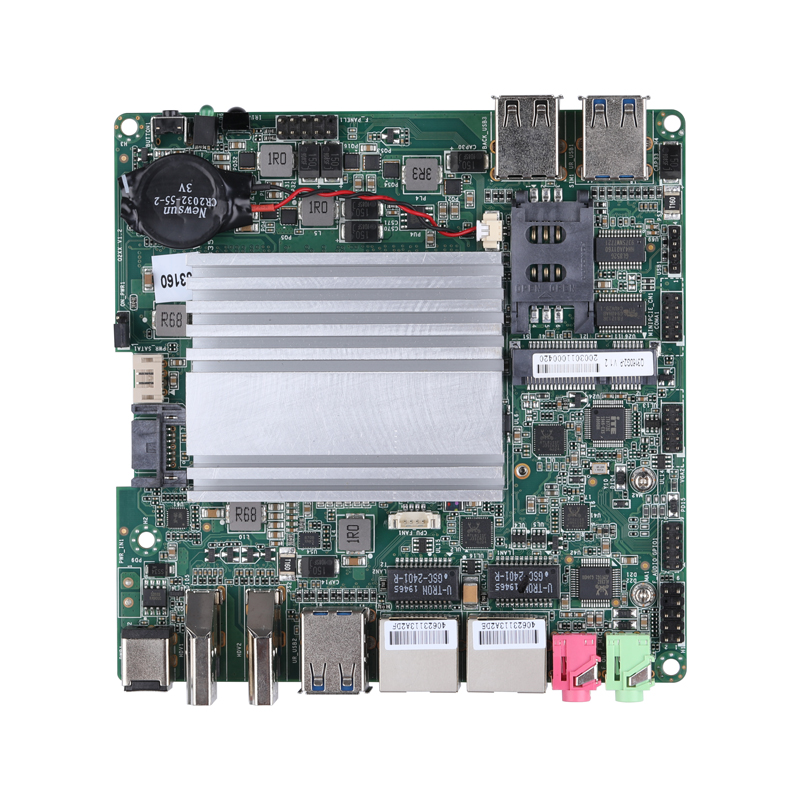

Based on Motherboard

MB2J217-0300

MB2J217-0300

View motherboard →

Q106SQ150SQ170SQ10311SQ10321SQ10331SIntelBraswellPentiumCeleronATOMJ3060N3060J3160N3160J3710N3710

Main Features

  • Intel Braswell Processor
  • 2 × HDMI
  • 4 × USB 3.0,2 × USB 2.0,1 × SATA 3.0
  • 1 × Mini PCIe,1 × mSATA
  • 2 × Realtek Gigabit LAN

Prozessorsystem

CPUIntel Braswell Processor
CPU-TDPBy CPU
Speicher1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
ChipsatzBy CPU
GrafikBy CPU
LAN-Chipsatz2 × Realtek Gigabit LAN
AudioRealtek HD Audio
WatchdogNo

Front-I/O

Ein-/Ausschalter1
LED1 × Power LED
USB2 × USB 3.0,2 × USB 2.0
IR0

Rückseitige E/A

Stromversorgung1 × DC Jack
Videoausgang2 × HDMI
LAN2 × Realtek Gigabit LAN
USB2 × USB 3.0
Audio1 × Mic-in,1 × Line-out
VGA0
Schnittstelle0

Speicher

Typ1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD

Erweiterung

mSATA1 × Full-length Mini PCIe for SSD
Mini-PCIe1 × Mini PCIe Full-length for 4G Half-length for Wi-Fi
SIM-Kartensteckplatz1
AutoStart-JumperYes,1 × 3Pin, Pitch 2.54mm
DC-EingangNo
VGA1,2 × 5Pin, Pitch 2.0mm
GPIO1,2 × 5Pin, Pitch 2.0mm
RS-4850

Stromversorgung

Netzteil12V3A
Gleichspannungsbuchse5.5mm, 2.5mm

Umgebungsbedingungen

Betriebstemperatur0°C~50°C
Nichtbetriebstemperatur-20°C~80°C
Luftfeuchtigkeit10%~90%

Mechanik

MaterialAluminium Alloy
Abmessungen155 × 127 × 48mm
Gewicht0.88kg
MontageVESA Mounting Bracket
Verpackungsmaße261 × 218 × 75mm
Kensington-SchlossNo
KühlungsartFanless Design

OS-Unterstützung

BetriebssystemWindows 7, Windows 8, Windows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q10311S-S08 Q106S Braswell Celeron N3060 2 / 2 1.6Ghz ~ 2.48Ghz 2M Intel HD Graphics 6W
Q10321S-S08 Q150S Braswell Celeron N3160 4 / 4 1.6Ghz ~ 2.24Ghz 2M Intel HD Graphics 6W
Q10331S-S08 Q170S Braswell Pentium J3710 4 / 4 1.6Ghz ~ 2.64Ghz 2M Intel HD Graphics 6.5W
