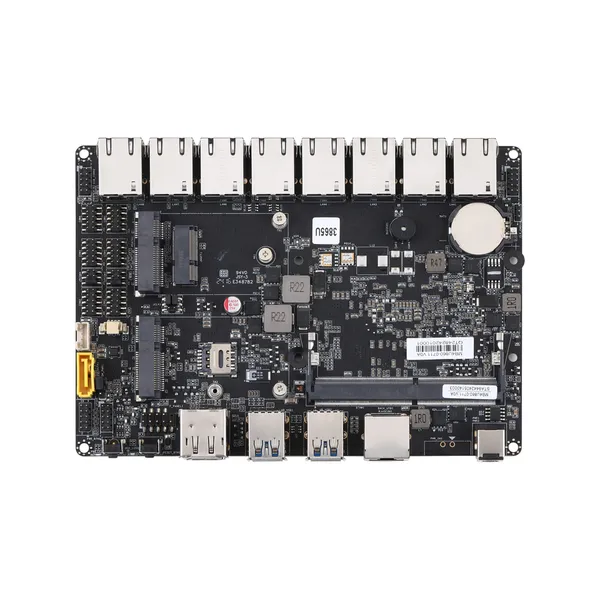

Mainboard MB4U86R-0600 Serie

Name: Mainboard MB4U86R-0600 Serie
Brand: Qotom
SKU: MB4U86R-0600

Model: MB4U86R-0600

Total LAN8

LAN Speed1G RJ45

Serial Ports1

Key Specs

CPU: Skylake / Kaby Lake / Kaby Lake-R
Memory: DDR4 SO-DIMM · Max 32GB
LAN: 8
Storage: mSATA, SATA
Board Size: 165x115

Products Using This Board (9)

Q30600GPR-S20

Multi-LAN-Serie

Q30600GPR-S10

Multi-LAN-Serie

Q30600GER-S23

Multi-LAN-Serie

Q30600GER-S20

Multi-LAN-Serie

Q30600GERX-S10

Multi-LAN-Serie

Q30600GER-S13

Multi-LAN-Serie

Q30600GERX-S20

Multi-LAN-Serie

Q30600GER-1U07

Multi-LAN-Serie

Q30600GER-S10

Multi-LAN-Serie

Main Features

Intel 6 th Skylake-U Processor
Intel 7 th Kabylake-U Processor
Intel 8 th Kabylake-R-U Processor
1 × Display Port, 1 × HDMI, 1 × VGA (Option)
4 × USB 3.0, 1 × SATA 3.0, 6 × RS-232
1 × M.2, 1 × mSATA,1 × Mini-PCIe
8 × Realtek Gigabit LAN

CPU	• Intel 6 th Skylake-U Processor • Intel 7 th Kabylake-U Processor • Intel 8 th Kabylake-R-U Processor
Chipsatz	By CPU
Abmessungen	165 × 115mm
Kernanzahl	By CPU
Max. Geschwindigkeit	By CPU
L2-Cache	By CPU
BIOS	UEFI

Technologie	DDR4 2133MHz SDRAM
Max.	32GB
Sockel	1 × SO-DIMM

Controller	By CPU
VRAM	Shared Memory
Display	1 × Display Port 1 × HDMI 1 × VGA (Header)
Mehrfachanzeige	Yes

Schnittstelle	10/100/1000Mbps
Controller	8 × Realtek Gigabit LAN
Anschluss	8 × RJ-45

Ein-/Ausschalter	1 × Power Button, 1 × Reset Button
LED	1 × Power LED, 1 × HDD LED
USB	4 × USB 3.0,2 × USB 2.0 (Option)
Schnittstelle	1 × RS-232 (RJ-45)
Display	1 × Display Port,1 × HDMI
DC-Eingang	1

Mini-PC-Serie

Motherboard-Serie

NAS-Speicher-Serie

OPS-Serie

Panel-PC-Serie

Zubehör

Mainboard MB4U86R-0600 Serie

Key Specs

Products Using This Board (9)

Main Features

Prozessorsystem

Speicher

Grafik

Ethernet

Audio

Front-I/O

Rückseitige E/A

Speicher

Erweiterung

Interner Anschluss

Watchdog-Timer

Stromversorgung

Umgebungsbedingungen

Zubehör

OS-Unterstützung

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

mSATA	1 × Full-length Mini PCIe for SSD
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)
Mini-PCIe	1 × Mini PCIe, Full-length Mini PCIe for 4G by Default Half-length Mini PCIe for Wi-Fi (Only for USB Device,Option)

VGA-Stiftleiste	1, 2 × 5Pin, Pitch 2.0mm (Option)
Schnittstelle	6, 2 × 5Pin, Pitch 2.0mm, COM3/4 Support 5V/12V (Option)
RS-485	COM3/4 can be set up as RS-485 (Option)
SATA	1, SATA 3.0 (6.0Gb/S)
SATA-Stromanschluss	1, 1 × 4Pin, Pitch PH2.0mm
SIM-Steckplatz	1
AutoStart-Jumper	Yes, 1 × 3Pin, Pitch 2.54mm
CMOS-Löschjumper	Yes, 1 × 3Pin, Pitch 2.0mm
GPIO-Header	1, 2 × 5Pin, Pitch 2.0mm
USB 2.0-Stiftleiste	2, 2 × 5Pin, Pitch 2.0mm
Frontblenden-Header	1, 2 × 5Pin, Pitch 2.54mm
Stromstecker	1, Phoenix 1 × 2Pin, Pitch 3.5mm (Option)

Ausgang	From Super I/O to Drag RESETCON#
Intervall	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
MB4U86R-0611	Skylake	Celeron	3855U	2 / 2	1.6GHz	2M	Intel HD 510	15W
MB4U86R-0612	Skylake	Celeron	3955U	2 / 2	2.0GHz	2M	Intel HD 510	15W
MB4U86R-0631	Skylake	Core i3	6100U	2 / 4	2.3GHz	3M	Intel HD 520	15W
MB4U86R-0651	Skylake	Core i5	6200U	2 / 4	2.3GHz ~ 2.8GHz	3M	Intel HD 520	15W
MB4U86R-0671	Skylake	Core i7	6500U	2 / 4	2.5GHz ~ 3.1GHz	4M	Intel HD 520	15W
MB4U86R-0711	Kaby Lake	Celeron	3865U	2 / 2	1.8GHz	2M	Intel HD 610	15W
MB4U86R-0712	Kaby Lake	Celeron	3965U	2 / 2	2.2GHz	2M	Intel HD 610	15W
MB4U86R-0731	Kaby Lake	Core i3	7100U	2 / 4	2.4GHz	3M	Intel HD 620	15W
MB4U86R-0751	Kaby Lake	Core i5	7200U	2 / 4	2.5GHz ~ 3.1GHz	3M	Intel HD 620	15W
MB4U86R-0771	Kaby Lake	Core i7	7500U	2 / 4	2.7GHz ~ 3.5GHz	4M	Intel HD 620	15W
MB4U86R-0811	Kaby Lake R	Celeron	3867U	2 / 2	1.8GHz	2M	Intel HD 610	15W
MB4U86R-0821	Kaby Lake R	Pentium	4417U	2 / 2	2.3GHz	2M	Intel HD 610	15W
MB4U86R-0831	Kaby Lake R	Core i3	8130U	2 / 4	2.0GHz ~ 3.40GHz	4M	Intel UHD 620	15W
MB4U86R-0851	Kaby Lake R	Core i5	8250U	4 / 8	1.6GHz ~ 3.4GHz	6M	Intel UHD 620	15W
MB4U86R-0871	Kaby Lake R	Core i7	8550U	4 / 8	1.8GHz ~ 4.0GHz	8M	Intel UHD 620	15W
