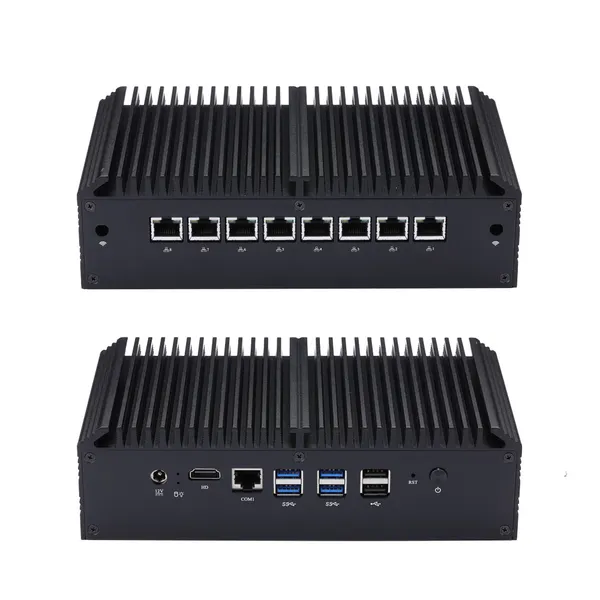

Q30600GE-S10 image 11 / 9

Mini PC Q30600GE S10 Series

Model: Q30600GE-S10

Total LAN8
LAN Speed1G RJ45
Serial Ports1

Key Specs

CPU
Skylake / Kaby Lake / Kaby Lake-R
Memory
DDR4 SO-DIMM · Max 32GB
LAN
8
Storage
mSATA, SATA

Based on Motherboard

MB4U863-0600

MB4U863-0600

View motherboard →

Q816GEQ826GEQ836GEQ856GEQ876GEQ817GEQ827GEQ837GEQ857GEQ877GEQ818GEQ828GEQ838GEQ858GEQ878GEQ30611GEQ30612GEQ30631GEQ30651GEQ30671GEQ30711GEQ30712GEQ30731GEQ30751GEQ30771GEQ30811GEQ30821GEQ30831GEQ30851GEQ30871GEIntelSkylakeKaby LakeKaby Lake-RCeleronPentiumCore i3Core i5Core i73855U3955U4405U6006U6100U6200U6300U6500U6600U3865U3965U4415U7020U7100U7130U7200U7500U7560U7660U7600U3867U4417U8130U8250U8350U8550U8650U

Main Features

  • Intel 6 th Skylake-U Processor
  • Intel 7 th Kabylake-U Processor
  • Intel 8 th Kabylake-R-U Processor
  • 1 × HDMI
  • 4 × USB 3.0,2 × USB 2.0
  • 1 × mSATA,1 × Mini PCIe,1 × M.2,1 × SATA 3.0
  • 1 × RS-232 (RJ-45)
  • 8 × Intel I211-AT/I210-AT Gigabit LAN

Processorsystem

CPU• Intel 6 th Skylake-U Processor • Intel 7 th Kabylake-U Processor • Intel 8 th Kabylake-R-U Processor
CPU-TDPBy CPU
Hukommelse1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
ChipsætBy CPU
GrafikBy CPU
LAN-chipsæt8 × Intel I211-AT/I210-AT Gigabit LAN
WatchdogYes

Front I/O

Tænd/sluk-knap1
LED1 × Power LED,1 × HDD LED
USB4 × USB 3.0,2× USB 2.0
Serieport1 × RS-232 Port (RJ-45)
Nulstil-knap1
Strøm1 × DC Jack
Videooutput1 × HDMI

Bag I/O

LAN8 × Intel I211-AT/I210-AT Gigabit LAN

Lagring

Type1 × 2.5-inch HDD/SSD
Type1 × Mini PCIe for mSATA SSD

Udvidelse

Mini PCIe1 × Mini PCIe (Only Support USB Device) Full-length for 4G Half-length for Wi-Fi
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
SIM-kortslot1
AutoStart-jumperYes,1 × 3Pin, Pitch 2.54mm
DC-indgangNo
CMOS-nulstillingsjumperYes,1 × 3Pin, Pitch 2.0mm
GPIO1,2 × 5Pin, Pitch 2.0mm
RS-4850

Strøm

Strømadapter12V4A
DC-stik5.5mm, 2.5mm

Miljømæssigt

Driftstemperatur0°C~50°C
Ikke-driftstemperatur-20°C~80°C
Fugtighed10%~90%

Mekanisk

MaterialeAluminium Alloy
Dimension217 × 122 × 62mm
Vægt1.36kg
MonteringVESA Mounting Bracket
Emballagemål285 × 260 × 93mm
Kensington-låsNo
KølemetodeFanless Design

OS-support

OSWindows 10, Linux Windows 7 (only for 6 th Gen Skylake)

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q30611GE-S10 Skylake Celeron 3855U 2 / 2 1.6GHz 2M Intel HD 510 15W
Q30612GE-S10 Skylake Celeron 3955U 2 / 2 2.0GHz 2M Intel HD 510 15W
Q30631GE-S10 Skylake Core i3 6100U 2 / 4 2.3GHz 3M Intel HD 520 15W
Q30651GE-S10 Skylake Core i5 6200U 2 / 4 2.3GHz ~ 2.8GHz 3M Intel HD 520 15W
Q30671GE-S10 Skylake Core i7 6500U 2 / 4 2.5GHz ~ 3.1GHz 4M Intel HD 520 15W
Q30711GE-S10 Kaby Lake Celeron 3865U 2 / 2 1.8GHz 2M Intel HD 610 15W
Q30712GE-S10 Kaby Lake Celeron 3965U 2 / 2 2.2GHz 2M Intel HD 610 15W
Q30731GE-S10 Kaby Lake Core i3 7100U 2 / 4 2.4GHz 3M Intel HD 620 15W
Q30751GE-S10 Kaby Lake Core i5 7200U 2 / 4 2.5GHz ~ 3.1GHz 3M Intel HD 620 15W
Q30771GE-S10 Kaby Lake Core i7 7500U 2 / 4 2.7GHz ~ 3.5GHz 4M Intel HD 620 15W
Q30811GE-S10 Kaby Lake R Celeron 3867U 2 / 2 1.8GHz 2M Intel HD 610 15W
Q30821GE-S10 Kaby Lake R Pentium 4417U 2 / 2 2.3GHz 2M Intel HD 610 15W
Q30831GE-S10 Kaby Lake R Core i3 8130U 2 / 4 2.0GHz ~ 3.40GHz 4M Intel UHD 620 15W
Q30851GE-S10 Kaby Lake R Core i5 8250U 4 / 8 1.6GHz ~ 3.4GHz 6M Intel UHD 620 15W
Q30871GE-S10 Kaby Lake R Core i7 8550U 4 / 8 1.8GHz ~ 4.0GHz 8M Intel UHD 620 15W
