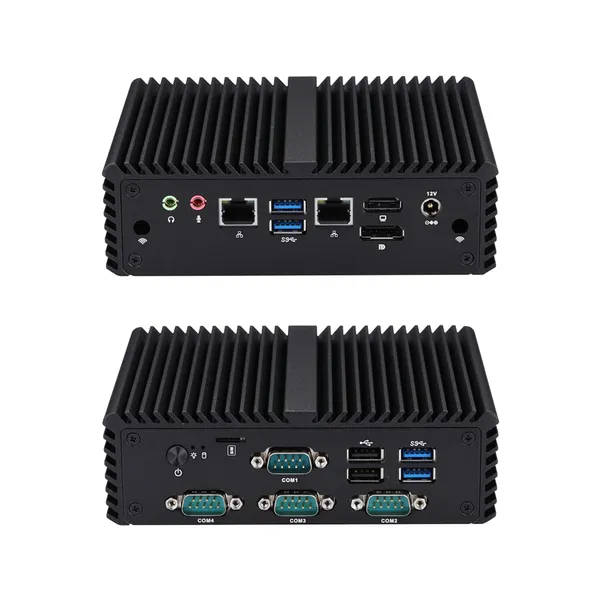

Q30900P-S08 image 11 / 8

Mini PC Q30900P S08 série

Model: Q30900P-S08

Total LAN2
LAN Speed2.5G RJ45
Serial Ports4

Key Specs

CPU
Whiskey Lake / Coffee Lake / Comet lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
2
Storage
M.2 Mkey, SATA

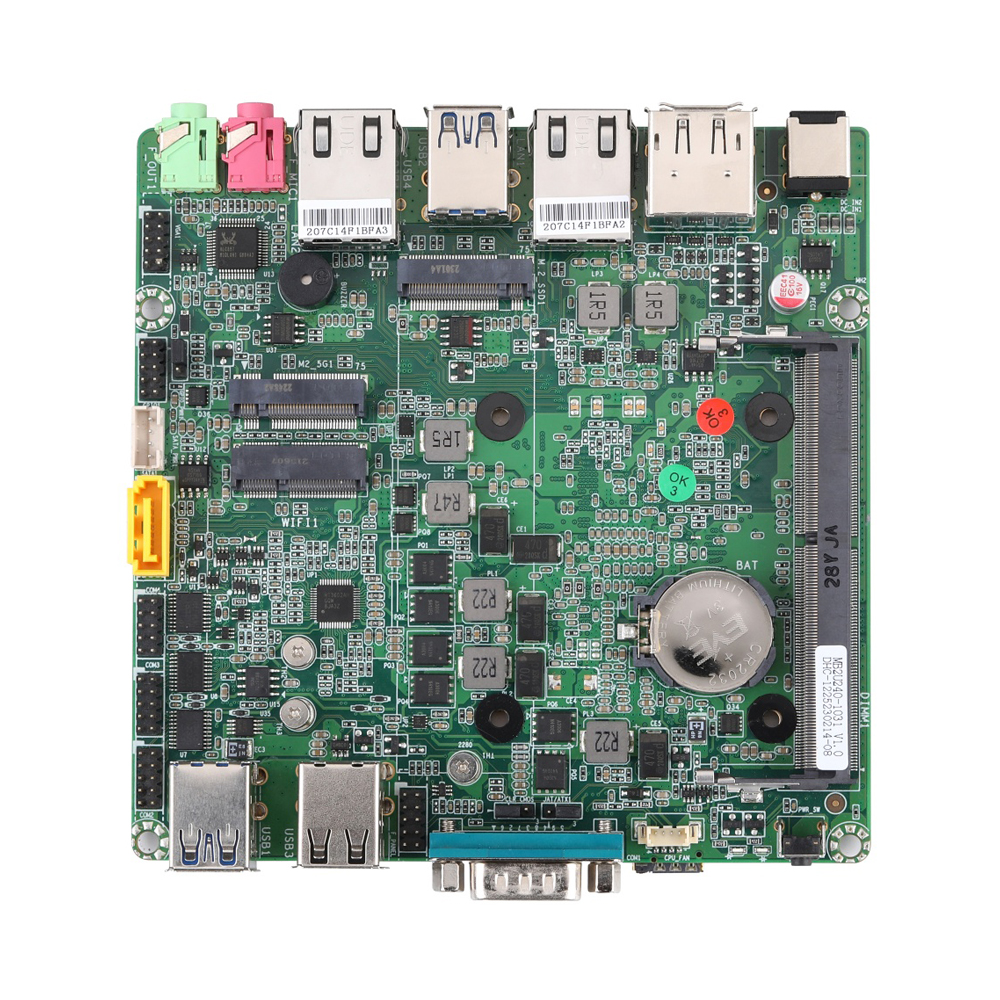

Based on Motherboard

MB2U240-0900

MB2U240-0900

View motherboard →

Q30912PQ30921PQ30931PQ30951PQ30971PQ30952PQ31011PQ31012PQ31021PQ31031PQ31051PQ31071PQ31072PQ31073PIntelWhiskey LakeCoffee LakeComet lakeCeleronPentiumCore i3Core i5Core i74205U4305U5405U8145U8265U8365U8565U8665U8140U8260U5205U5305U6405U10110U10210U10310U10510U10610U10710U10810U

Main Features

  • Intel 8 th Whiskey Lake-U Processor
  • Intel 8 th Coffee Lake-U Processor
  • Intel 10 th Comet lake-U Processor
  • 1 × Display Port, 1 × HDMI
  • 4 × USB 3.0, 2 × USB 2.0
  • 3 × M.2, 1 × SATA 3.0
  • 4 × RS-232
  • 2 × Intel I225-V/I226-V 2.5G LAN

Procesorový systém

CPU• Intel 8 th Whiskey Lake-U Processor • Intel 8 th Coffee Lake-U Processor • Intel 10 th Comet lake-U Processor
TDP CPUBy CPU
Paměť1 × DDR 4 SO-DIMM Socket (Up to 32 G,21 33/24 00MHz)
Čipová sadaBy CPU
GrafikaBy CPU
LAN čipová sada2 × Intel I225-V/I226-V 2.5G LAN
AudioRealtek HD Audio
Watch DogYes

Přední I/O

Tlačítko napájení1
LED1 × Power LED,1 × HDD LED
USB2 × USB 3.0,2 × USB 2.0
Sériový port4 × RS-232
Slot na SIM kartu1

Zadní I/O

Napájení1 × DC Jack
Video výstup1 × Display Port,1 × HDMI
LAN2 × Intel I225-V/I226-V 2.5G LAN
USB2 × USB 3.0
Audio1 × Mic-in, 1 × Line-out

Úložiště

Typ1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280)

Rozšíření

M.21 × M.2 for 4G/5G (B key, Type: 3042/3052) 4205U,5405U,5205U,5305U don't support 5G
M.21 × M.2 for SSD (M key,Type: 2280) 1 × M.2 for Wi-Fi (E key, Type: 2230)
Slot na SIM kartu0
AutoStart propojkaYes,1 × 3Pin, Pitch 2.0mm
DC vstup0
Propojka vymazání CMOSYes,1 × 3Pin, Pitch 2.0mm
GPIO1,2 × 5Pin, Pitch 2.0mm
RS-4850

Napájení

Napájecí adaptér12V3A
DC konektor5.5mm, 2.5mm

Prostředí

Provozní teplota0°C~50°C
Teplota mimo provoz-20°C~80°C
Vlhkost10%~90%

Mechanické

MateriálAluminium Alloy
Rozměry155 × 127 × 48mm
Hmotnost0.86kg
MontážVESA Mounting Bracket
Rozměry balení261 × 218 × 75mm
Kensington zámekNo
Režim chlazeníFanless Design

Podpora OS

OSWindows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q30912P-S08 Whiskey Lake Celeron 4305U 2 / 2 2.2GHz 2M Intel UHD Graphics 15W
Q30921P-S08 Whiskey Lake Pentium 5405U 2 / 4 2.3GHz 2M Intel UHD Graphics 15W
Q30931P-S08 Whiskey Lake Core i3 8145U 2 / 4 2.1GHz ~ 3.9GHz 4M Intel UHD Graphics 15W
Q30951P-S08 Whiskey Lake Core i5 8265U 4 / 8 1.6GHz ~ 3.9GHz 6M Intel UHD Graphics 15W
Q30971P-S08 Whiskey Lake Core i7 8565U 4 / 8 1.8GHz ~ 4.6GHz 8M Intel UHD Graphics 15W
Q30952P-S08 Coffee Lake Core i5 8260U 4 / 8 1.6GHz ~ 3.9GHz 6M Intel UHD Graphics 620 15W
Q31011P-S08 Comet Lake Celeron 5205U 2 / 2 1.9GHz 2M Intel UHD Graphics 15W
Q31012P-S08 Comet Lake Celeron 5305U 2 / 2 2.3GHz 2M Intel UHD Graphics 15W
Q31021P-S08 Comet Lake Pentium 6405U 2 / 4 2.4GHz 2M Intel UHD Graphics 15W
Q31031P-S08 Comet Lake Core i3 10110U 2 / 4 2.1GHz ~ 4.1GHz 4M Intel UHD Graphics 15W
Q31051P-S08 Comet Lake Core i5 10210U 4 / 8 1.6GHz ~ 4.2GHz 6M Intel UHD Graphics 15W
Q31071P-S08 Comet Lake Core i7 10610U 4 / 8 1.8GHz ~ 4.9GHz 8M Intel UHD Graphics 15W
Q31072P-S08 Comet Lake Core i7 10810U 6 / 12 1.1GHz ~ 4.9GHz 12M Intel UHD Graphics 15W
Q31073P-S08 Comet Lake Core i7 10710U 6 / 12 1.1GHz ~ 4.7GHz 12M Intel UHD Graphics 15W
Q31074P-S08 Comet Lake Core i7 10510U 4 / 8 1.8GHz ~ 4.9GHz 8M Intel UHD Graphics 15W
