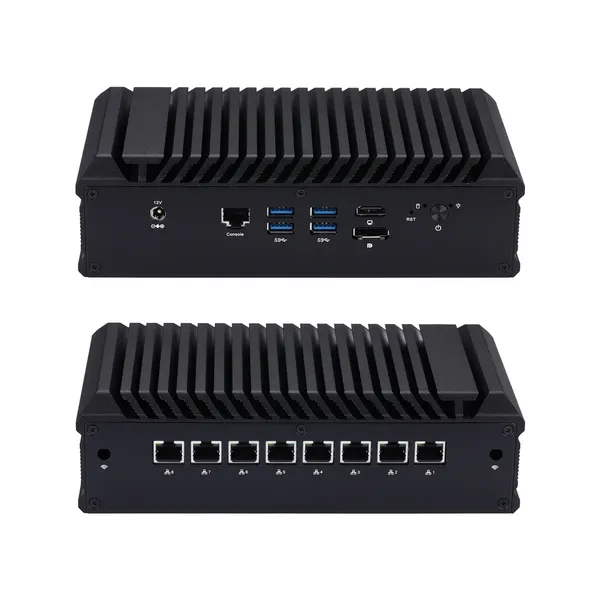

Q30600GER3-S20 image 11 / 8

Mini PC Q30600GER3 S20 řada

Model: Q30600GER3-S20

Total LAN8
LAN Speed1G RJ45
Serial Ports1

Key Specs

CPU
Skylake / Kaby Lake / Kaby Lake-R
Memory
DDR3L SO-DIMM · Max 8GB
LAN
8
Storage
mSATA, SATA

Based on Motherboard

MB4U86R-0600-D3

MB4U86R-0600-D3

View motherboard →

7500U7560U7660U7600U3867U4417U8130U8250U8350U8550U8650UQ30611GER3Q30612GER3Q30631GER3Q30651GER3Q30671GER3Q30711GER3Q30712GER3Q30731GER3Q30751GER3Q30771GER3Q30811GER3Q30821GER3Q30831GER3Q30851GER3Q30871GER3IntelSkylakeKaby LakeKaby Lake-RCeleronPentiumCore i3Core i5Core i73855U3955U4405U6006U6100U6200U6300U6500U6600U3865U3965U4415U7020U7100U7130U7200U

Main Features

  • Intel 6 th Skylake-U Processor
  • Intel 7 th Kabylake-U Processor
  • Intel 8 th Kabylake-R-U Processor
  • 1 × Display Port, 1 × HDMI
  • 4 × USB 3.0
  • 1 × mSATA, 1 × Mini PCIe, 1 × M.2, 1 × SATA 3.0
  • 1 × RS-232 (RJ-45)
  • 8 × Realtek Gigabit LAN

Procesorový systém

CPU• Intel 6 th Skylake-U Processor • Intel 7 th Kabylake-U Processor • Intel 8 th Kabylake-R-U Processor
TDP CPUBy CPU
Paměť1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
Čipová sadaBy CPU
GrafikaBy CPU
LAN čipová sada8 × Realtek Gigabit LAN
Watch DogYes

Přední I/O

Tlačítko napájení1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB4 × USB 3.0
Sériový port1 × RS-232 Port (RJ-45)
Napájení1 × DC Jack
Video výstup1 × HDMI,1 × Display Port

Zadní I/O

LAN8 × Realtek Gigabit LAN

Úložiště

Typ1 × 2.5-inch HDD/SSD
Typ1 × Mini PCIe for mSATA SSD

Rozšíření

Mini PCIe1 × Mini PCIe (Only Support USB Device) Full-length for 4G Half-length for Wi-Fi
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
Slot na SIM kartu1
AutoStart propojkaYes,1 × 3Pin, Pitch 2.54mm
DC vstupNo
Propojka vymazání CMOSYes,1 × 3Pin, Pitch 2.0mm
GPIO1,2 × 5Pin, Pitch 2.0mm
RS-4850

Napájení

Napájecí adaptér12V4A
DC konektor5.5mm, 2.5mm

Prostředí

Provozní teplota0°C~50°C
Teplota mimo provoz-20°C~80°C
Vlhkost10%~90%

Mechanické

MateriálAluminium Alloy
Rozměry221 × 121 × 62mm
Hmotnost1.38kg
MontážVESA Mounting Bracket
Rozměry balení285 × 260 × 93mm
Kensington zámekNo
Režim chlazeníFanless Design

Podpora OS

OSWindows 10, Linux Windows 7 (only for 6 th Gen Skylake)

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q30611GER3-S20 Skylake Celeron 3855U 2 / 2 1.6GHz 2M Intel HD 510 15W
Q30612GER3-S20 Skylake Celeron 3955U 2 / 2 2.0GHz 2M Intel HD 510 15W
Q30631GER3-S20 Skylake Core i3 6100U 2 / 4 2.3GHz 3M Intel HD 520 15W
Q30651GER3-S20 Skylake Core i5 6200U 2 / 4 2.3GHz ~ 2.8GHz 3M Intel HD 520 15W
Q30671GER3-S20 Skylake Core i7 6500U 2 / 4 2.5GHz ~ 3.1GHz 4M Intel HD 520 15W
Q30711GER3-S20 Kaby Lake Celeron 3865U 2 / 2 1.8GHz 2M Intel HD 610 15W
Q30712GER3-S20 Kaby Lake Celeron 3965U 2 / 2 2.2GHz 2M Intel HD 610 15W
Q30731GER3-S20 Kaby Lake Core i3 7100U 2 / 4 2.4GHz 3M Intel HD 620 15W
Q30751GER3-S20 Kaby Lake Core i5 7200U 2 / 4 2.5GHz ~ 3.1GHz 3M Intel HD 620 15W
Q30771GER3-S20 Kaby Lake Core i7 7500U 2 / 4 2.7GHz ~ 3.5GHz 4M Intel HD 620 15W
Q30811GER3-S20 Kaby Lake R Celeron 3867U 2 / 2 1.8GHz 2M Intel HD 610 15W
Q30821GER3-S20 Kaby Lake R Pentium 4417U 2 / 2 2.3GHz 2M Intel HD 610 15W
Q30831GER3-S20 Kaby Lake R Core i3 8130U 2 / 4 2.0GHz ~ 3.40GHz 4M Intel UHD 620 15W
Q30851GER3-S20 Kaby Lake R Core i5 8250U 4 / 8 1.6GHz ~ 3.4GHz 6M Intel UHD 620 15W
Q30871GER3-S20 Kaby Lake R Core i7 8550U 4 / 8 1.8GHz ~ 4.0GHz 8M Intel UHD 620 15W
