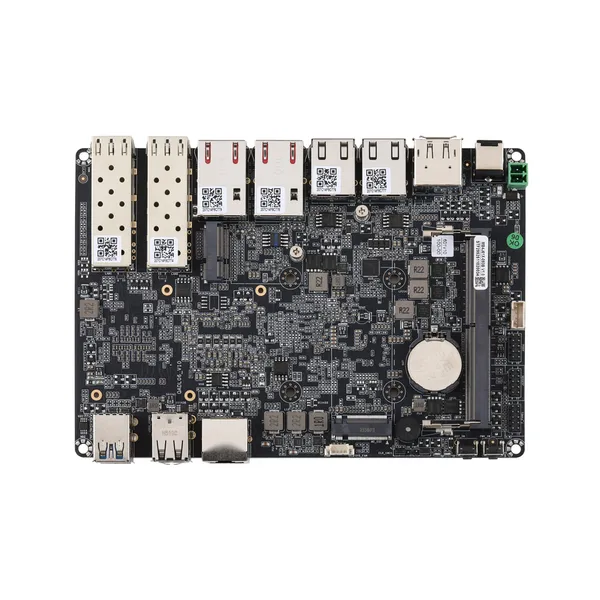

MB4J61X-0900 image 11 / 6

Základní deska MB4J61X-0900 řada

Model: MB4J61X-0900

Total LAN6
LAN Speed2.5G RJ45 / 10G RJ45 / 10G SFP+
Serial Ports1

Key Specs

CPU
Alder lake N / Twin Lake
Memory
DDR5 SO-DIMM · Max 48GB
LAN
6
Storage
M.2 Mkey
Board Size
165x115

Products Using This Board (3)

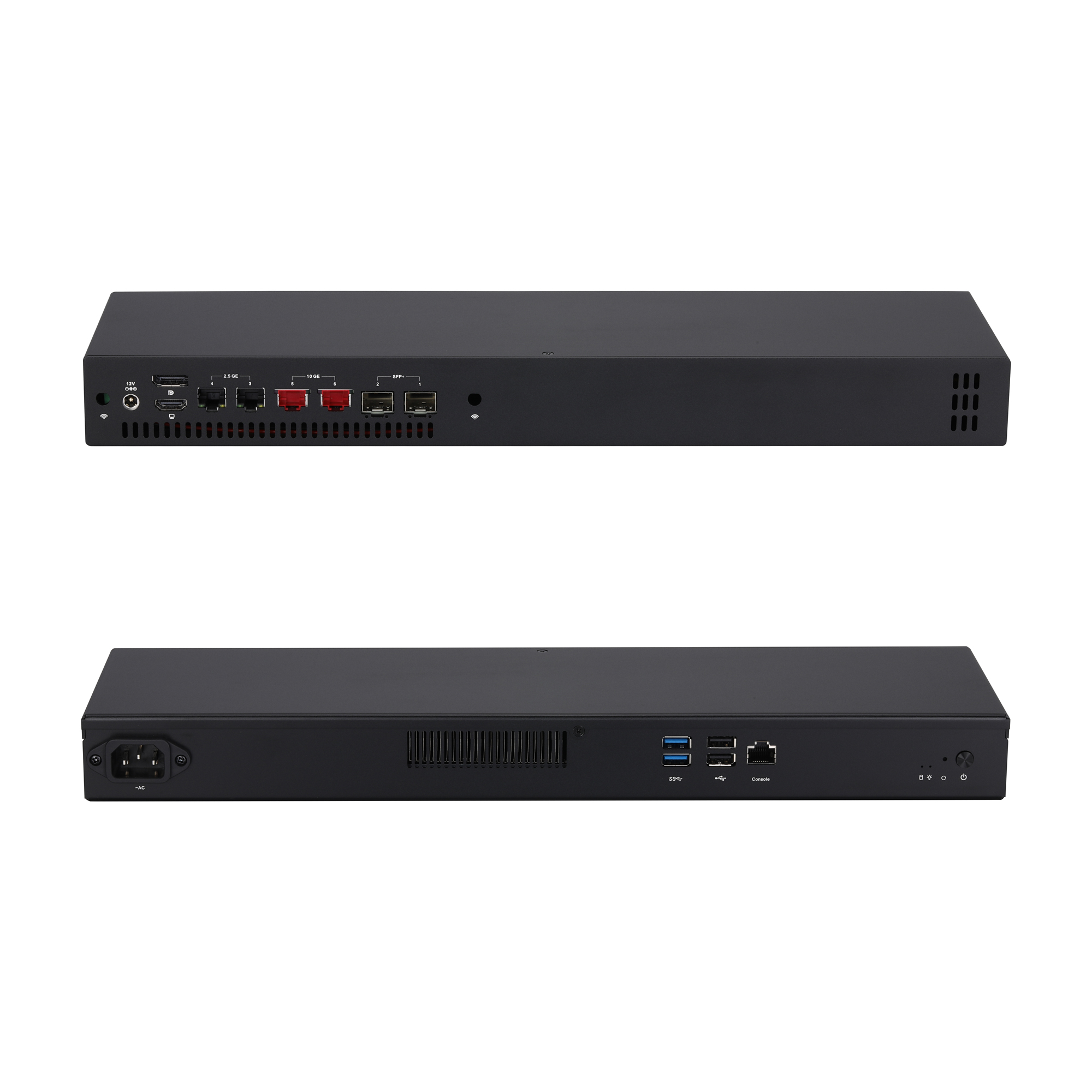

Q10900S6-1U13

Q10900S6-1U13

Série Multi-LAN

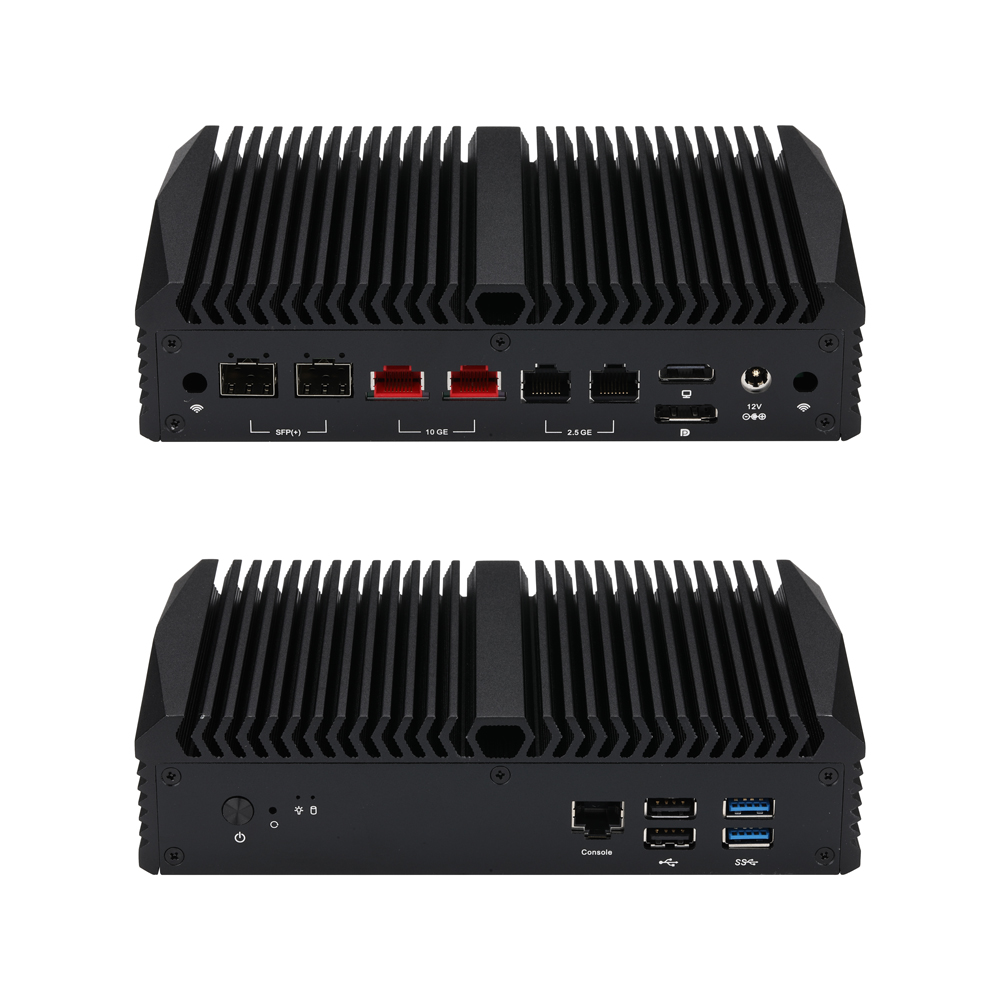

Q10900S6-S13

Q10900S6-S13

Série Multi-LAN

Q10900S6-S23

Q10900S6-S23

Série Multi-LAN

MB4J61X-0911MB4J61X-0921MB4J61X-0922MB4J61X-0923MB4J61X-0924MB4J61X-0931MB4J61X-0932MB4J61X-1022MB4J61X-1023MB4J61X-1031MB4J61X-1032IntelAlder Lake-NTwin LakePentiumCeleronATOMX7425EN50N97N100N200N300N305N150N250N350N355

Main Features

  • Intel Alder Lake-N Processor
  • Intel Twin Lake-N Processor
  • 1 × HDMI, 1 × Display Port
  • 2 × USB 3.0 ,2 × USB 2.0
  • 2 × M.2 ,1 × RS-232 (RJ45)
  • 2× Intel I226-V 2.5G LAN
  • 2, Intel X540 10G LAN
  • 2, Intel 82599ES 10G SFP+

Procesorový systém

CPUIntel Alder Lake-N Processor Intel Twin Lake-N Processor
Čipová sadaBy CPU
Rozměry165 × 115mm
Počet jaderBy CPU
RychlostBy CPU
L2 cacheBy CPU
BIOSUEFI

Paměť

TechnologieDDR5 4800MHz SDRAM
Max.48GB
Socket1 × SO-DIMM

Grafika

ŘadičBy CPU
VRAMShared Memory
HDMI1 (Support HDMI 1.4a)
DisplayPort1
Více displejůYes

Ethernet

RJ45/2.5G2 × Intel I226-V 2.5G LAN
RJ45/10G2, Intel X540 10G LAN (10GbE/1GbE) Both interfaces support up to 12Gbps
SFP+ / 10G2, Intel 82599ES 10G SFP+ (10GbE/1GbE) Both interfaces support up to 12Gbps

Audio

ŘadičNo

Přední I/O

Tlačítko napájení1 × Power Button, 1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB2 × USB 3.0, 2 × USB 2.0
Sériový port1 × Connector, RS-232 (RJ-45)
DC-IN1
Displej1× HDMI,1× Display Port
SFP+2 × 10G SFP+
Ethernet2 × 10G
Ethernet2 × 2.5G

Úložiště

Max. přenosová rychlostNo

Rozšíření

M.21× M.2 for SSD (M key, Type:2280,PCIe 3.0 × 1)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)

Interní konektor

SATASATA support via a Converter Card
SATA napájecí konektor1, 1 × 4Pin, Pitch PH2.0mm
AutoStart propojkaYes, 1 × 3Pin, Pitch 2.0mm
Propojka vymazání CMOSYes, 1 × 3Pin, Pitch 2.0mm
Konektor předního panelu1, 2 × 5Pin, Pitch 2.0mm
USB 2.0 header2, 2 × 5Pin, Pitch 2.0mm
USB 3.0 header1, 2 × 5Pin, Pitch 2.0mm (Option)
Napájecí header1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin

Watchdog timer

VýstupFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min

Napájení

Vstupní napájení12V DC in, 5.5mm/2.5mm

Prostředí

Provozní teplota0-50℃

Příslušenství

PříslušenstvíCable for HDD

Podpora OS

OSUEFI Windows 10, UEFI Linux

Package Contents

  • Motherboard × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB4J61X-0911 A lder lake-N - N50 2 / - 3.4GHz 6M Intel UHD Graphics 6W
MB4J61X-0921 Alder lake-N - N97 4 / - 3.6GHz 6M Intel UHD Graphics 12W
MB4J61X-0922 Alder lake-N - N100 4 / 4 3.4GHz 6M Intel UHD Graphics 6W
MB4J61X-0923 Alder lake-N - N200 4 / 4 3.7GHz 6M Intel UHD Graphics 6W
MB4J61X-0924 Alder lake-N Atom X7425E 4 / 4 3.4GHz 6M Intel UHD Graphics 12W
MB4J61X-0931 Alder lake-N Core i3 N300 8 / 8 3.8GHz 6M Intel UHD Graphics 7W
MB4J61X-0932 Alder lake-N Core i3 N305 8 / 8 3.8GHz 6M Intel UHD Graphics 15W
MB4J61X-1022 Twin Lake-N - N150 4 / 4 3.6GHz 6M Intel Graphics 6W
MB4J61X-1023 Twin Lake-N - N250 4 / 4 3.8GHz 6M Intel Graphics 6W
MB4J61X-1031 Twin Lake-N Core i3 N350 8 / 8 3.9GHz 6M Intel Graphics 7W
MB4J61X-1032 Twin Lake-N Core i3 N355 8 / 8 3.9GHz 6M Intel Graphics 15W
