Матчына плата MB4U86R-0600 Series

Model: MB4U86R-0600

Total LAN8
LAN Speed1G RJ45
Serial Ports1

Key Specs

CPU
Skylake / Kaby Lake / Kaby Lake-R
Memory
DDR4 SO-DIMM · Max 32GB
LAN
8
Storage
mSATA, SATA
Board Size
165x115

Products Using This Board (9)

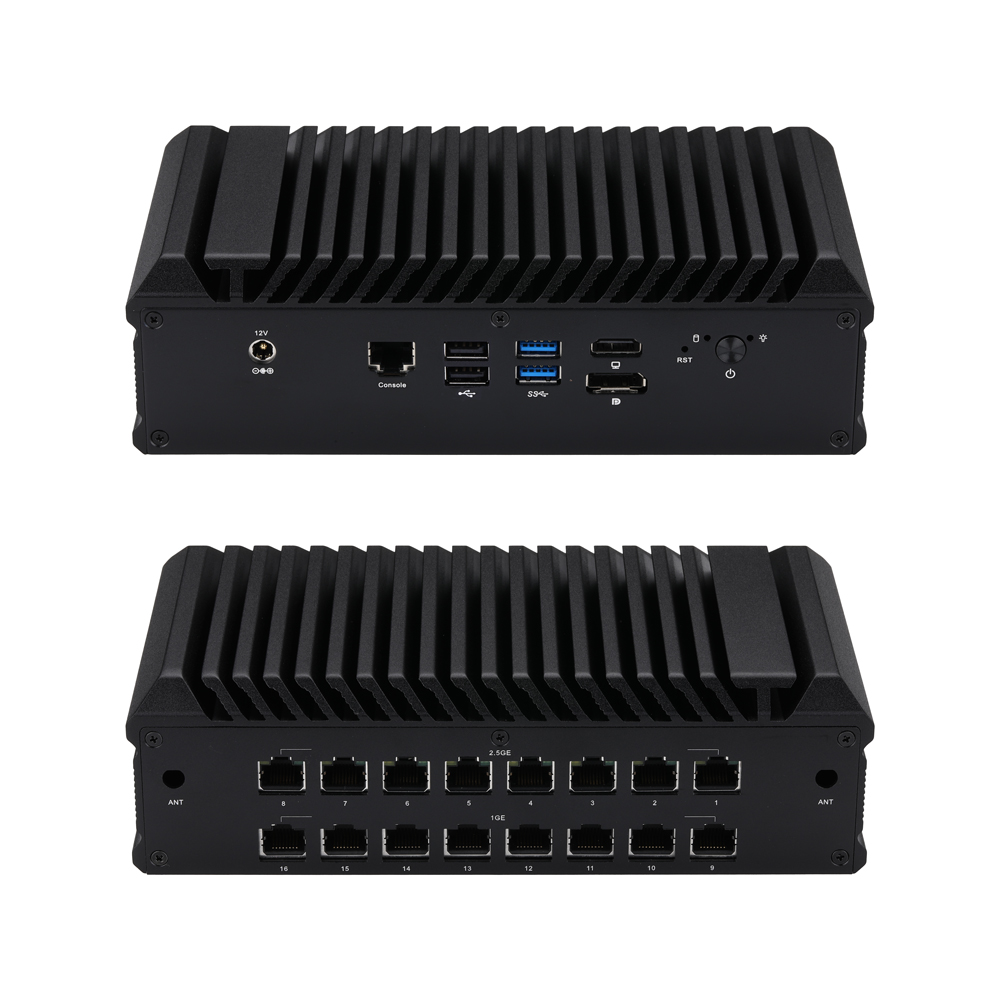

Q30600GPR-S20

Q30600GPR-S20

Серыя Multi-LAN

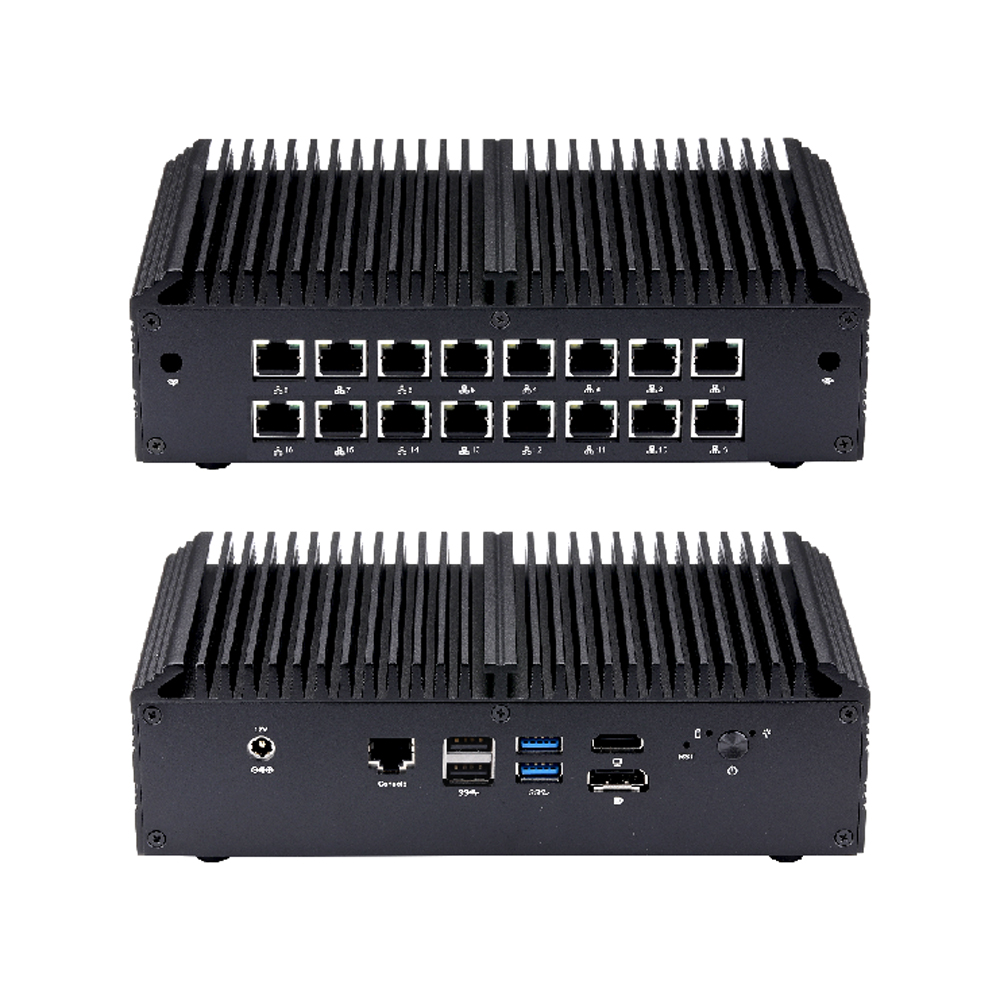

Q30600GPR-S10

Q30600GPR-S10

Серыя Multi-LAN

Q30600GER-S23

Q30600GER-S23

Серыя Multi-LAN

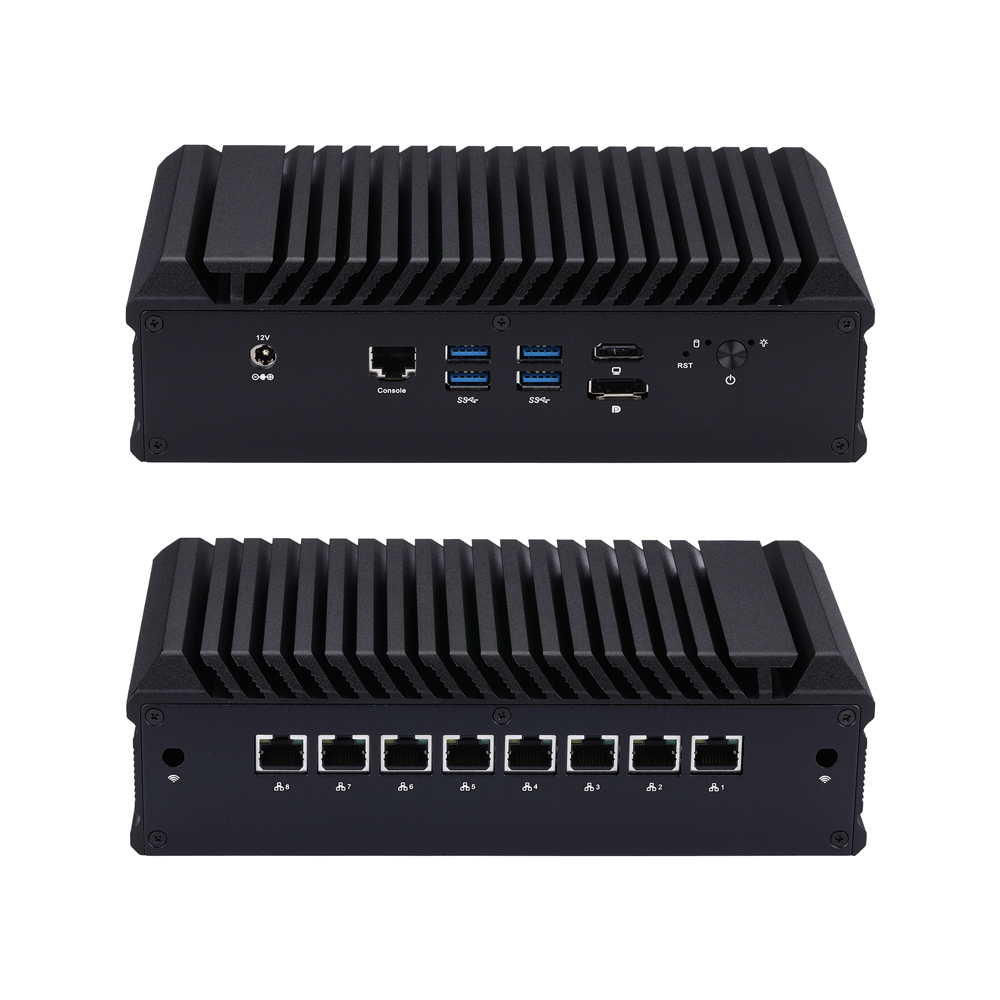

Q30600GER-S20

Q30600GER-S20

Серыя Multi-LAN

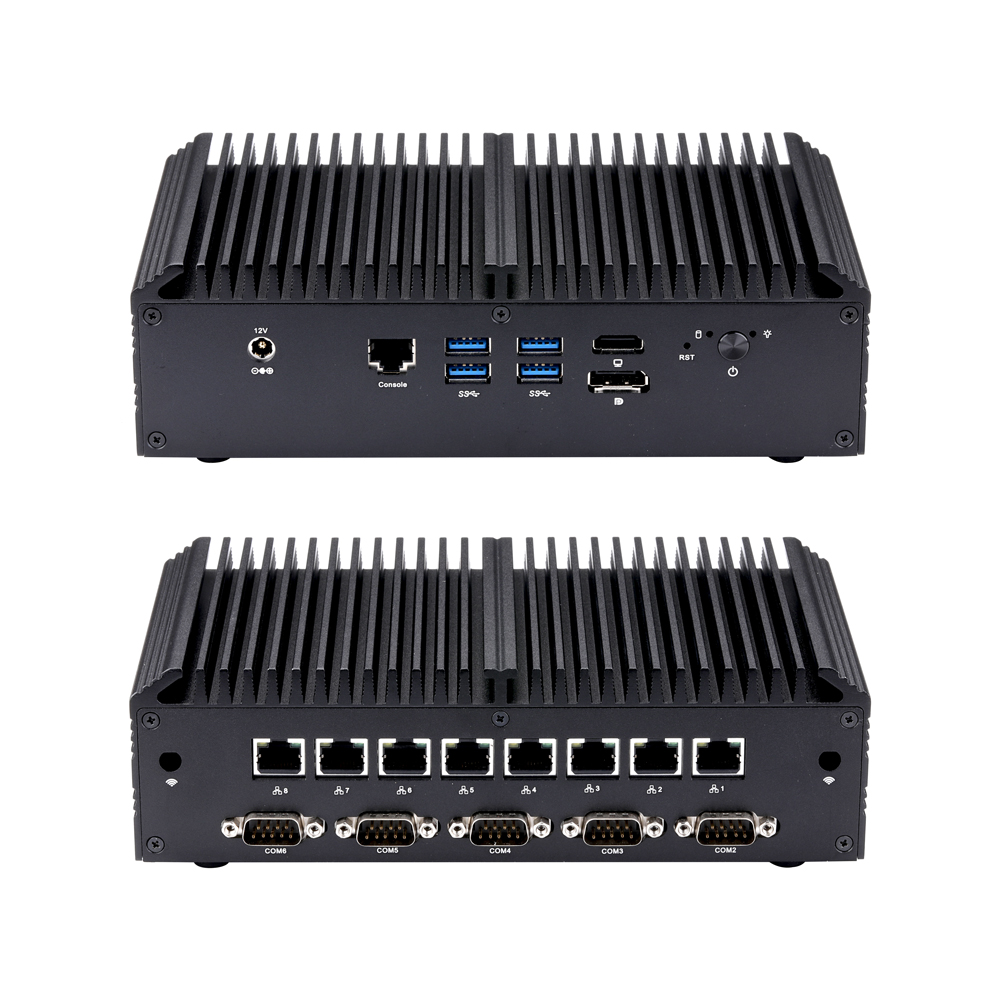

Q30600GERX-S10

Q30600GERX-S10

Серыя Multi-LAN

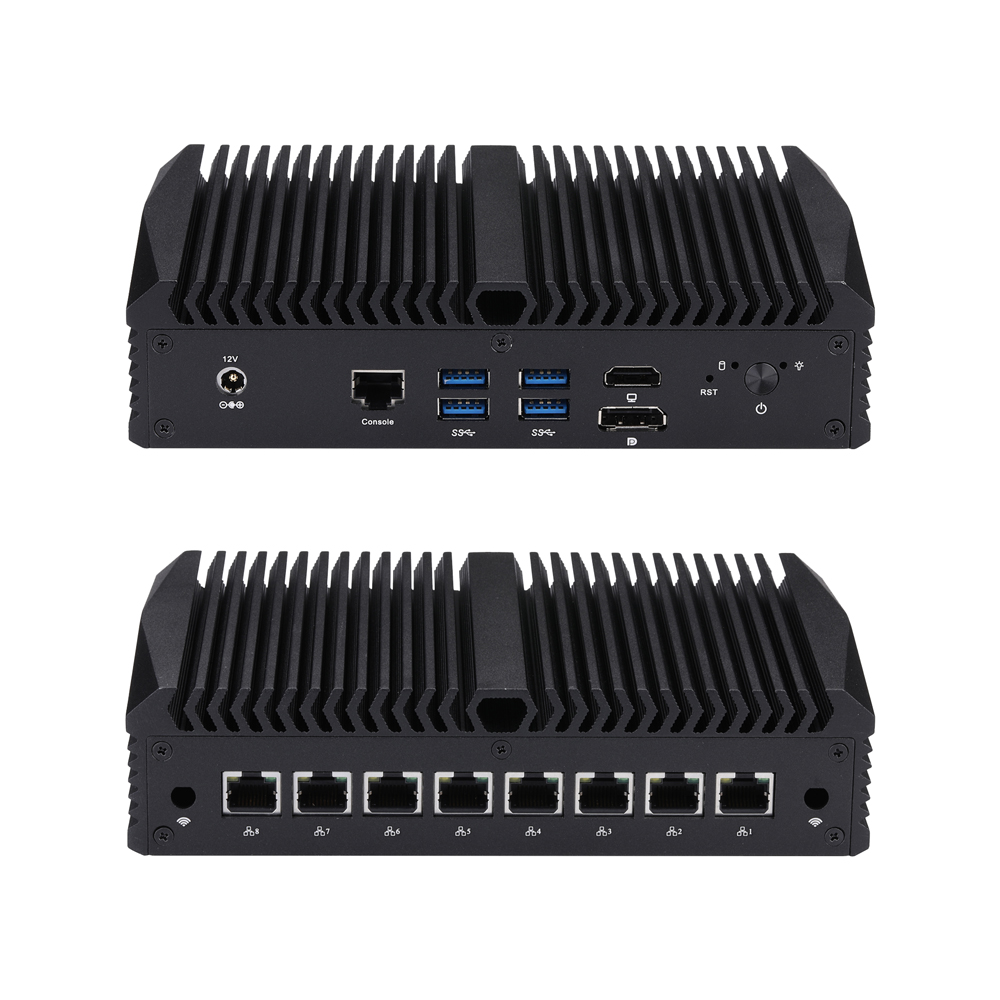

Q30600GER-S13

Q30600GER-S13

Серыя Multi-LAN

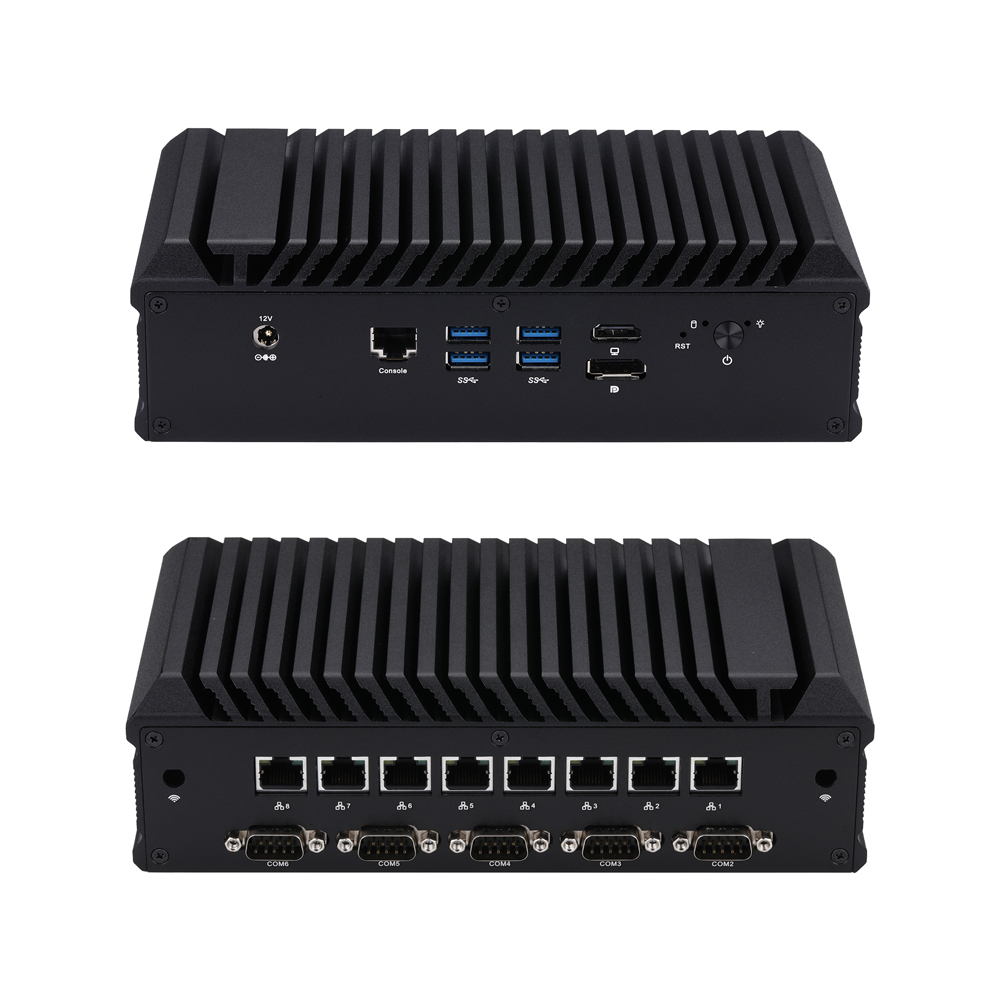

Q30600GERX-S20

Q30600GERX-S20

Серыя Multi-LAN

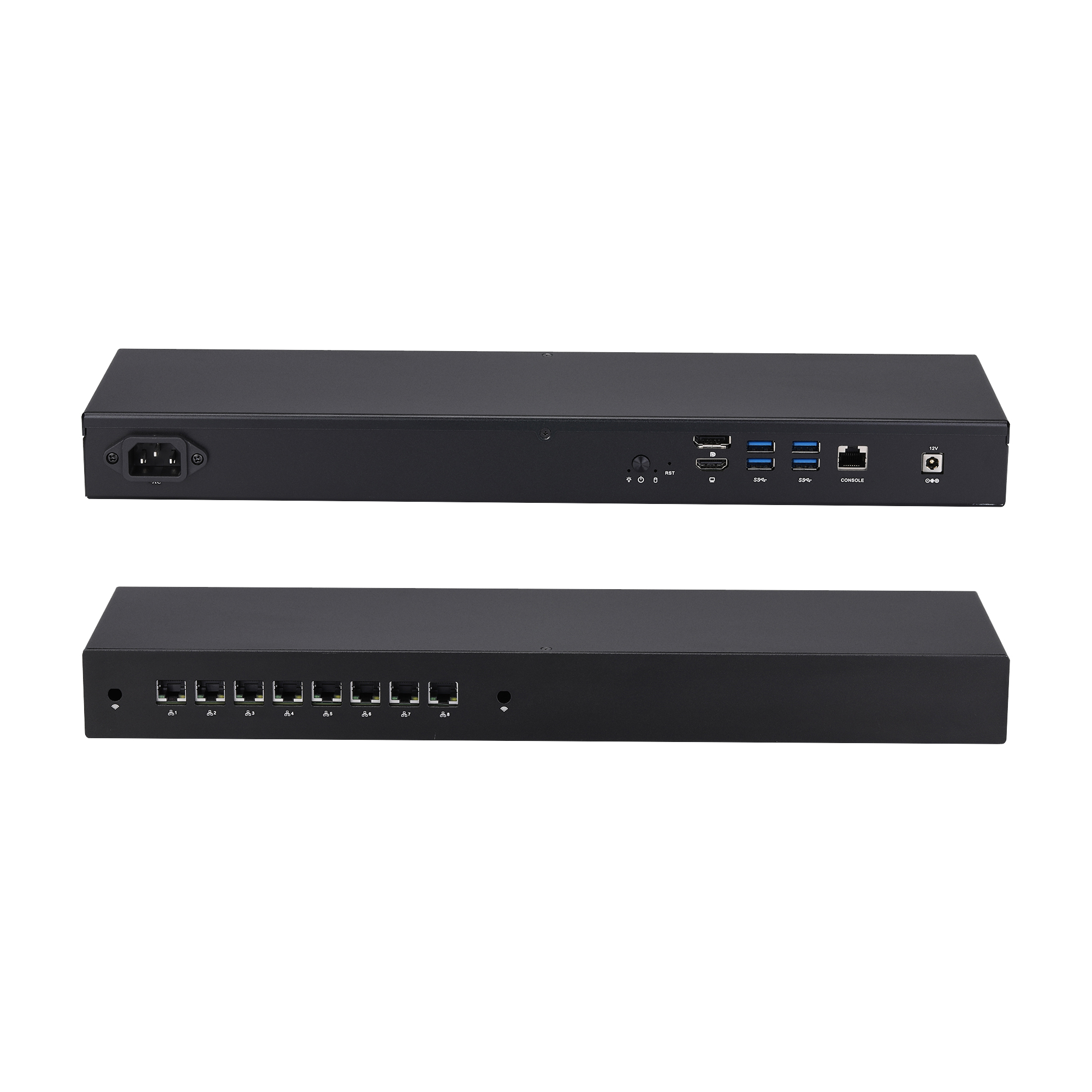

Q30600GER-1U07

Q30600GER-1U07

Серыя Multi-LAN

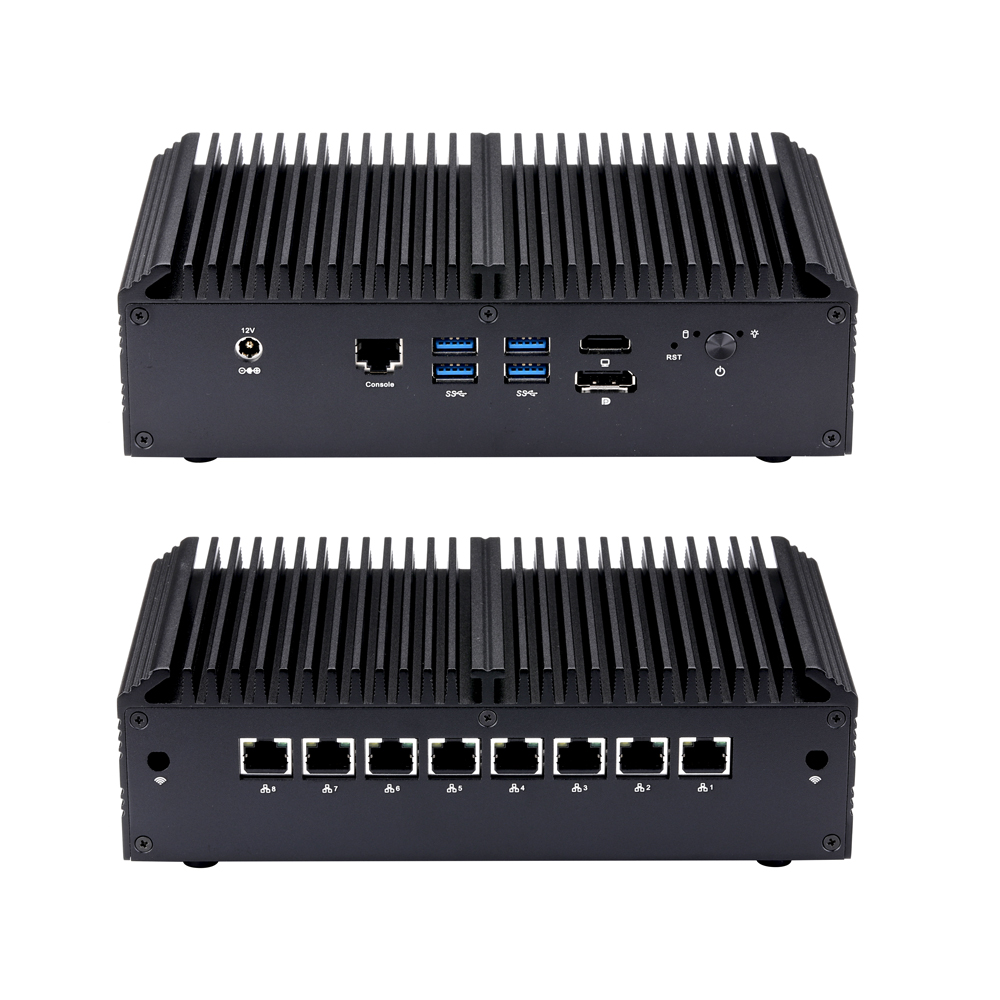

Q30600GER-S10

Q30600GER-S10

Серыя Multi-LAN

7600U3867U4417U8350U8650U8130U8250U8550UMB4U86R-0751MB4U86R-0771MB4U86R-0811MB4U86R-0821MB4U86R-0831MB4U86R-0851MB4U86R-0871Intel6500U3865U3965U4415U6300U6600U6200U7560U7660U7130U7200U7500U7100U4405U6006U7020USkylakeKaby Lake3855U3955U6100UKaby Lake-RCore i3Core i5Core i7PentiumCeleronMB4U86R-0611MB4U86R-0612MB4U86R-0631MB4U86R-0651MB4U86R-0671MB4U86R-0711MB4U86R-0712MB4U86R-0731

Main Features

  • Intel 6 th Skylake-U Processor
  • Intel 7 th Kabylake-U Processor
  • Intel 8 th Kabylake-R-U Processor
  • 1 × Display Port, 1 × HDMI, 1 × VGA (Option)
  • 4 × USB 3.0, 1 × SATA 3.0, 6 × RS-232
  • 1 × M.2, 1 × mSATA,1 × Mini-PCIe
  • 8 × Realtek Gigabit LAN

Працэсарная сістэма

CPU• Intel 6 th Skylake-U Processor • Intel 7 th Kabylake-U Processor • Intel 8 th Kabylake-R-U Processor
ЧыпсэтBy CPU
Памеры165 × 115mm
Колькасць ядраўBy CPU
Макс. хуткасцьBy CPU
Кэш L2By CPU
BIOSUEFI

Памяць

ТэхналогіяDDR4 2133MHz SDRAM
Макс.32GB
Socket1 × SO-DIMM

Графіка

КантролерBy CPU
VRAMShared Memory
Дысплей1 × Display Port 1 × HDMI 1 × VGA (Header)
МультыдысплейYes

Ethernet

Інтэрфейс10/100/1000Mbps
Кантролер8 × Realtek Gigabit LAN
Раз'ём8 × RJ-45

Аўдыё

КантролерNo

Франтальны ўвод/вывад

Кнопка ўключэння1 × Power Button, 1 × Reset Button
LED1 × Power LED, 1 × HDD LED
USB4 × USB 3.0,2 × USB 2.0 (Option)
Паслядоўны порт1 × RS-232 (RJ-45)
Дысплей1 × Display Port,1 × HDMI
DC-IN1

Задні I/O

Ethernet8

Носьбіт дадзеных

Макс. хуткасць перадачы даныхSATA 3.0 (6.0Gb/S)

Пашырэнне

mSATA1 × Full-length Mini PCIe for SSD
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
Mini-PCIe1 × Mini PCIe, Full-length Mini PCIe for 4G by Default Half-length Mini PCIe for Wi-Fi (Only for USB Device,Option)

Унутраны раз'ём

Раздым VGA1, 2 × 5Pin, Pitch 2.0mm (Option)
Паслядоўны порт6, 2 × 5Pin, Pitch 2.0mm, COM3/4 Support 5V/12V (Option)
RS-485COM3/4 can be set up as RS-485 (Option)
SATA1, SATA 3.0 (6.0Gb/S)
Раздым сілкавання SATA1, 1 × 4Pin, Pitch PH2.0mm
Слот SIM1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
Jumper ачысткі CMOSYes, 1 × 3Pin, Pitch 2.0mm
Раз'ём GPIO1, 2 × 5Pin, Pitch 2.0mm
Раздым USB 2.02, 2 × 5Pin, Pitch 2.0mm
Раз'ём франтальнай панэлі1, 2 × 5Pin, Pitch 2.54mm
Раздым сілкавання1, Phoenix 1 × 2Pin, Pitch 3.5mm (Option)

Таймер watchdog

ВыхадFrom Super I/O to Drag RESETCON#
Інтэрвал256 Segments,0,1,2,3,,,255 sec/min

Сілкаванне

Уваходная магутнасць12V DC in, 5.5mm/2.5mm

Умовы эксплуатацыі

Рабочая тэмпература0-50℃

Аксесуары

АксесуарыCable for HDD

Падтрымка АС

АСWindows 10, Linux Windows 7 (Only for 6th Gen Skylake)

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB4U86R-0611 Skylake Celeron 3855U 2 / 2 1.6GHz 2M Intel HD 510 15W
MB4U86R-0612 Skylake Celeron 3955U 2 / 2 2.0GHz 2M Intel HD 510 15W
MB4U86R-0631 Skylake Core i3 6100U 2 / 4 2.3GHz 3M Intel HD 520 15W
MB4U86R-0651 Skylake Core i5 6200U 2 / 4 2.3GHz ~ 2.8GHz 3M Intel HD 520 15W
MB4U86R-0671 Skylake Core i7 6500U 2 / 4 2.5GHz ~ 3.1GHz 4M Intel HD 520 15W
MB4U86R-0711 Kaby Lake Celeron 3865U 2 / 2 1.8GHz 2M Intel HD 610 15W
MB4U86R-0712 Kaby Lake Celeron 3965U 2 / 2 2.2GHz 2M Intel HD 610 15W
MB4U86R-0731 Kaby Lake Core i3 7100U 2 / 4 2.4GHz 3M Intel HD 620 15W
MB4U86R-0751 Kaby Lake Core i5 7200U 2 / 4 2.5GHz ~ 3.1GHz 3M Intel HD 620 15W
MB4U86R-0771 Kaby Lake Core i7 7500U 2 / 4 2.7GHz ~ 3.5GHz 4M Intel HD 620 15W
MB4U86R-0811 Kaby Lake R Celeron 3867U 2 / 2 1.8GHz 2M Intel HD 610 15W
MB4U86R-0821 Kaby Lake R Pentium 4417U 2 / 2 2.3GHz 2M Intel HD 610 15W
MB4U86R-0831 Kaby Lake R Core i3 8130U 2 / 4 2.0GHz ~ 3.40GHz 4M Intel UHD 620 15W
MB4U86R-0851 Kaby Lake R Core i5 8250U 4 / 8 1.6GHz ~ 3.4GHz 6M Intel UHD 620 15W
MB4U86R-0871 Kaby Lake R Core i7 8550U 4 / 8 1.8GHz ~ 4.0GHz 8M Intel UHD 620 15W
