MB4U260-0900 image 11 / 6

Мацярынская плата MB4U260-0900 серыя

Model: MB4U260-0900

Total LAN2
LAN Speed2.5G RJ45
Serial Ports6

Key Specs

CPU
Whiskey Lake / Coffee Lake / Comet lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
2
Storage
M.2 Mkey, SATA
Board Size
165x115

Products Using This Board (2)

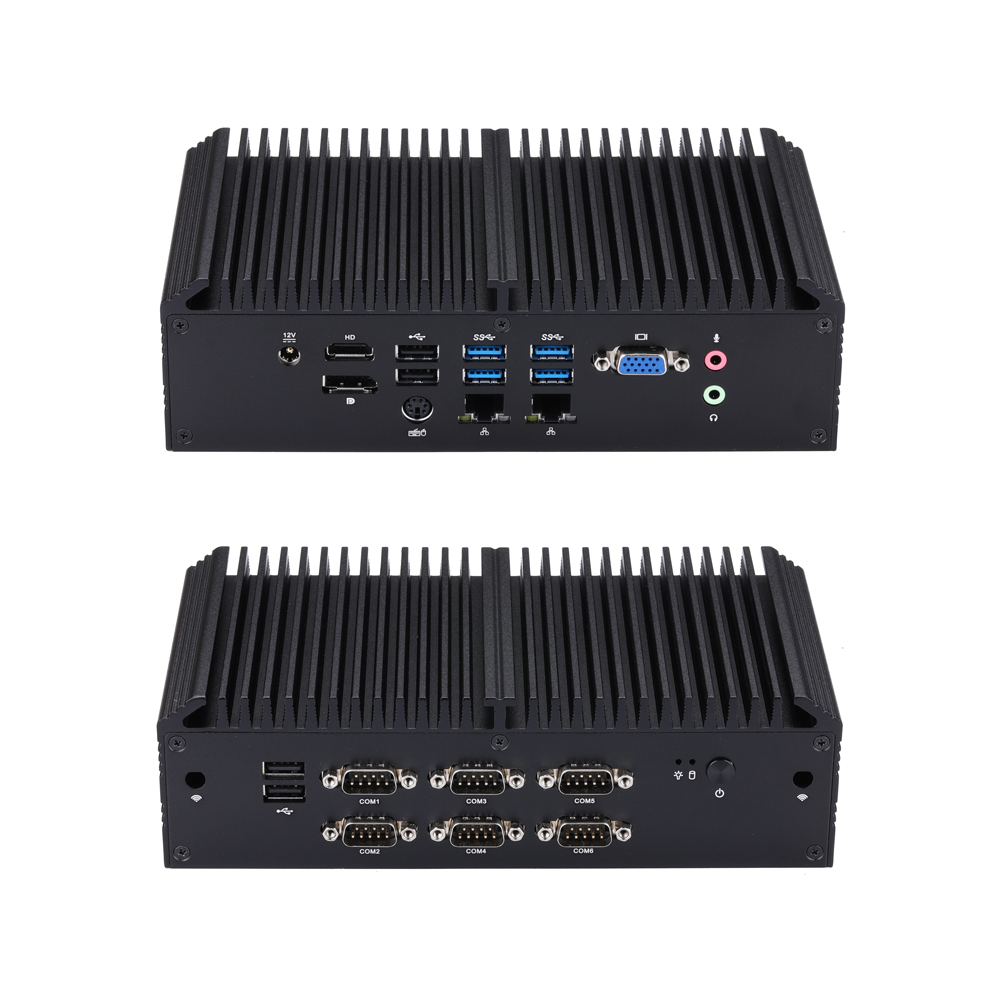

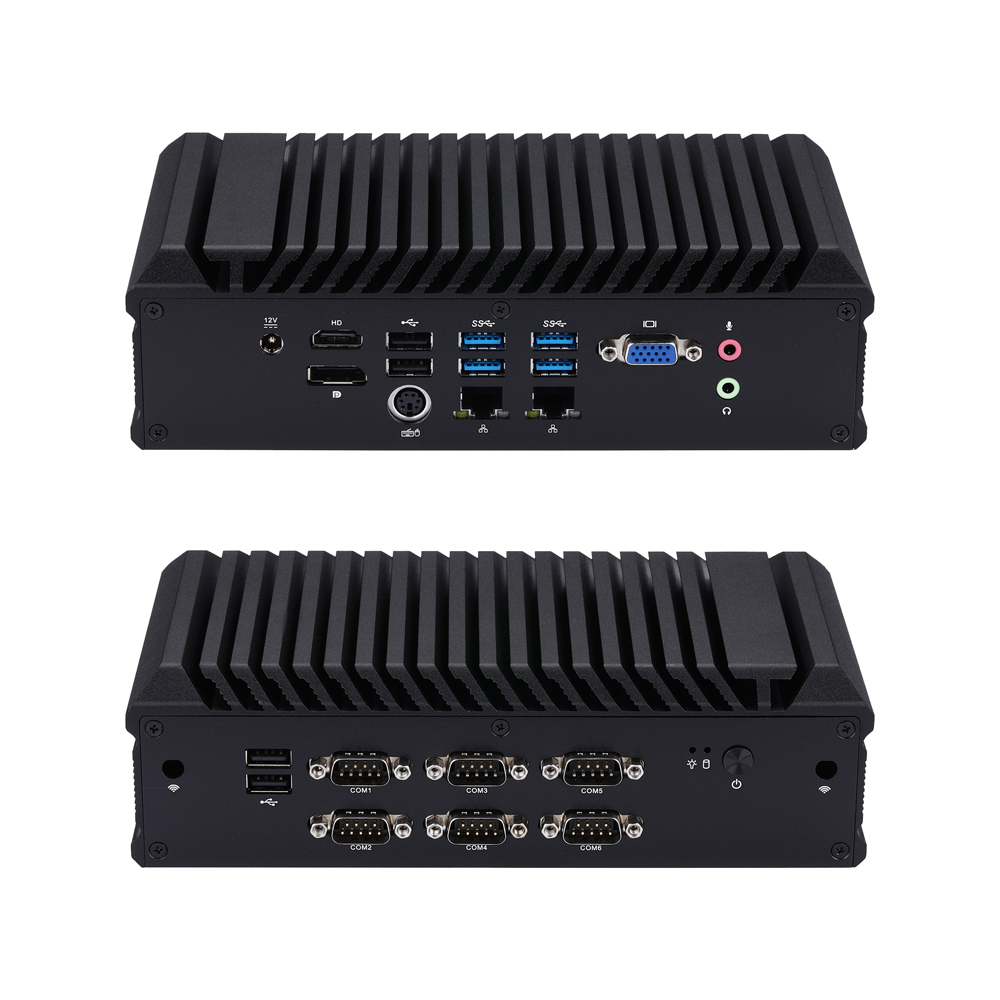

Q30900X-S20

Q30900X-S20

Серыя Multi-COM

Q30900X-S10

Q30900X-S10

Серыя Multi-COM

MB4U260-0912MB4U260-0921MB4U260-0931MB4U260-0951MB4U260-0971MB4U260-0952MB4U260-1011MB4U260-1012MB4U260-1021MB4U260-1031MB4U260-1051MB4U260-1071MB4U260-1072MB4U260-1073IntelWhiskey LakeCoffee LakeComet lakeCeleronPentiumCore i3Core i5Core i74205U4305U5405U8145U8265U8365U8565U8665U8140U8260U5205U5305U6405U10110U10210U10310U10510U10610U10710U10810U

Main Features

  • Intel 8 th Whiskey Lake-U Processor
  • Intel 8 th Coffee Lake-U Processor
  • Intel 10 th Comet lake-U Processor
  • 1 × Display Port, 1 × HDMI, 1 × VGA
  • 4 × USB 3.0, 4 × USB 2.0
  • 2 × M.2, 1 × Mini-PCIe, 1 × SATA 3.0
  • 6 × RS-232, 1 × PS/2
  • 2 × Intel I225-V/I226-V 2.5G LAN

Працэсарная сістэма

CPU• Intel 8 th Whiskey Lake-U Processor • Intel 8 th Coffee Lake-U Processor • Intel 10 th Comet lake-U Processor
ЧыпсэтBy CPU
Памеры165 × 115mm
Колькасць ядраўBy CPU
Макс. хуткасцьBy CPU
Кэш L2By CPU
BIOSUEFI

Памяць

ТэхналогіяDDR4 2133/2400MHz SDRAM
Макс.32GB
Socket1 × SO-DIMM

Графіка

КантролерBy CPU
VRAMShared Memory
VGA1
DisplayPort1
HDMI1 (Support HDMI 1.4a)
МультыдысплейYes

Ethernet

Інтэрфейс100/1000/2500Mbps
Кантролер2 × Intel I225-V/I226-V 2.5G LAN
Раз'ём2 × RJ-45

Аўдыё

КантролерRealtek HD Audio

Франтальны ўвод/вывад

Кнопка ўключэння1
USB4 × USB 3.0, 2 × USB 2.0
USB2 × USB 2.0,Not for 5405U
Паслядоўны порт6 × RS-232
PS/21 (Mouse or Keyboard)
DC-IN1
DisplayPort1
HDMI1
Ethernet2
Аўдыё2 (Mic-in, Line-out)

Носьбіт дадзеных

Макс. хуткасць перадачы даныхSATA 3.0 (6.0Gb/S)

Пашырэнне

M.21× M.2 for SSD (M key, Type: 2280)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
Mini-PCIe1 × Mini PCIe,Half-length Mini PCIe for Wi-Fi, Full-length Mini PCIe for 4G by Default

Унутраны раз'ём

Паслядоўны портCOM1/COM2 support 5V/12V
RS-485COM1/2 can be set up as RS-485
SATA1, SATA 3.0 (6.0Gb/S)
Раздым сілкавання SATA1, 1 × 4Pin, Pitch PH2.0mm
Слот SIM1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.0mm
Jumper ачысткі CMOSYes, 1 × 3Pin, Pitch 2.0mm
Раз'ём GPIO1, 2 × 5Pin, Pitch 2.0mm
Выбар харчавання GPIOYes, 1 × 3Pin, Pitch 2.0mm
Раздым USB 2.01, 1 × 4Pin, Pitch 2.54mm
Раз'ём франтальнай панэлі1, 2 × 5Pin, Pitch 2.54mm
Раздым дынамікаў1, 2 × 5Pin, Pitch 2.54mm
Раздым сілкавання1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option)

Таймер watchdog

ВыхадFrom Super I/O to Drag RESETCON#
Інтэрвал256 Segments,0,1,2,3,,,255 sec/min

Сілкаванне

Уваходная магутнасць12V DC in, 5.5mm/2.5mm

Умовы эксплуатацыі

Рабочая тэмпература0-50℃

Аксесуары

АксесуарыCable for HDD

Падтрымка АС

АСWindows 10, Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1
  • VGA Extension Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB4U260-0912 Whiskey Lake Celeron 4305U 2 / 2 2.2GHz 2M Intel UHD Graphics 15W
MB4U260-0921 Whiskey Lake Pentium 5405U 2 / 4 2.3GHz 2M Intel UHD Graphics 15W
MB4U260-0931 Whiskey Lake Core i3 8145U 2 / 4 2.1GHz ~ 3.9GHz 4M Intel UHD Graphics 15W
MB4U260-0951 Whiskey Lake Core i5 8265U 4 / 8 1.6GHz ~ 3.9GHz 6M Intel UHD Graphics 15W
MB4U260-0971 Whiskey Lake Core i7 8565U 4 / 8 1.8GHz ~ 4.6GHz 8M Intel UHD Graphics 15W
MB4U260-0952 Coffee Lake Core i5 8260U 4 / 8 1.6GHz ~ 3.9GHz 6M Intel UHD Graphics 620 15W
MB4U260-1011 Comet Lake Celeron 5205U 2 / 2 1.9GHz 2M Intel UHD Graphics 15W
MB4U260-1012 Comet Lake Celeron 5305U 2 / 2 2.3GHz 2M Intel UHD Graphics 15W
MB4U260-1021 Comet Lake Pentium 6405U 2 / 4 2.4GHz 2M Intel UHD Graphics 15W
MB4U260-1031 Comet Lake Core i3 10110U 2 / 4 2.1GHz ~ 4.1GHz 4M Intel UHD Graphics 15W
MB4U260-1051 Comet Lake Core i5 10210U 4 / 8 1.6GHz ~ 4.2GHz 6M Intel UHD Graphics 15W
MB4U260-1071 Comet Lake Core i7 10610U 4 / 8 1.8GHz ~ 4.9GHz 8M Intel UHD Graphics 15W
MB4U260-1072 Comet Lake Core i7 10810U 6 / 12 1.1GHz ~ 4.9GHz 12M Intel UHD Graphics 15W
MB4U260-1073 Comet Lake Core i7 10710U 6 / 12 1.1GHz ~ 4.7GHz 12M Intel UHD Graphics 15W
MB4U260-1074 Comet Lake Core i7 10510U 4 / 8 1.8GHz ~ 4.9GHz 8M Intel UHD Graphics 15W
