Qotom
MB3U267-0500 image 11 / 6

Мацярынская плата MB3U267-0500 серыя

Model: MB3U267-0500

Total LAN2
LAN Speed1G RJ45
Serial Ports6

Key Specs

CPU
Haswell / Broadwell
Memory
DDR3L SO-DIMM · Max 8GB
LAN
2
Storage
mSATA, SATA
Board Size
148x104

Products Using This Board (2)

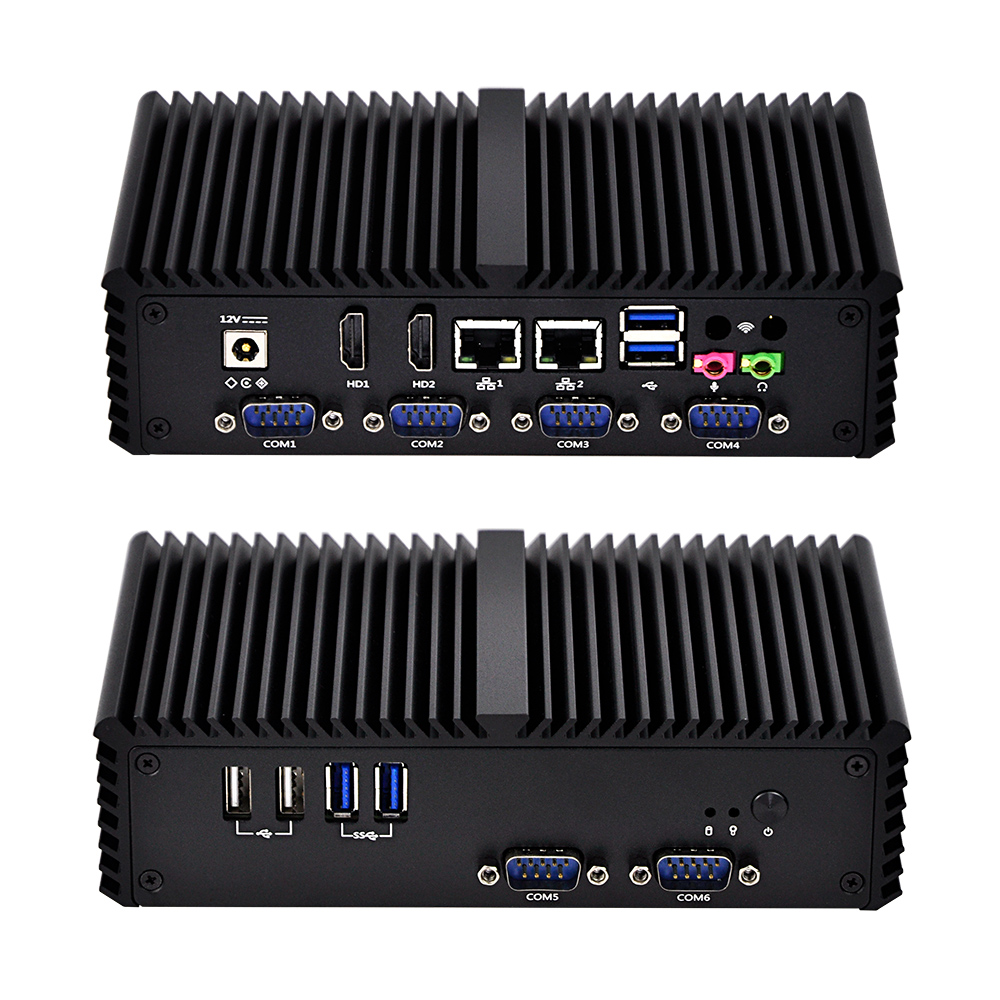

Q30400X-S05

Q30400X-S05

Серыя Multi-COM

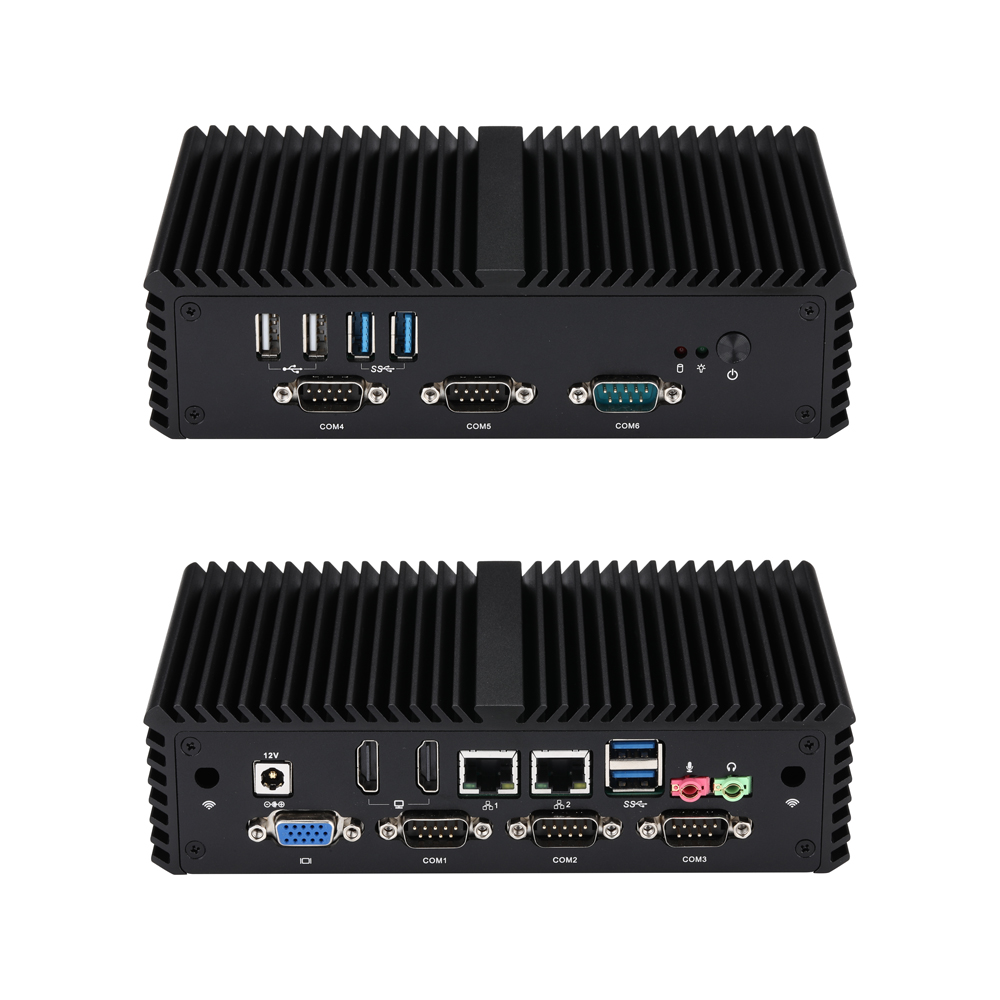

Q30400XV-S05

Q30400XV-S05

Серыя Multi-COM

MB2U267-0411MB2U267-0431MB2U267-0451MB2U267-0471MB2U267-0432MB2U267-0452MB2U267-0511MB2U267-0512MB2U267-0521MB2U267-0531MB2U267-0551MB2U267-0571IntelHaswellBroadwellCeleronPentiumCore i3Core i5Core i72955U2980U3556U3558U4005U4010U4025U4030U4100U4120U4010Y4020Y4030Y4200Y4202Y4210Y4220Y4300Y4302Y4200U4210U4300U4310U4258U4278U4288U4308U4500U4510U4550U4600U4650U4610Y3205U3215U3805U3825U5005U5010U5015U5020U5200U5300U5250U5500U5600U

Main Features

  • Intel 4 th Haswell –U/Y Processor
  • Intel 5 th Broadwell-U Processor
  • 2 × HDMI,1 × VGA (Header)
  • 6 × RS-232, 1 × RS-485
  • 4 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
  • 1 × Mini-PCIe, 1 × mSATA , 1 × M.2
  • 2 × Realtek Gigabit LAN

Працэсарная сістэма

CPU• Intel 4 th Haswell –U/Y Processor • Intel 5 th Broadwell-U Processor
ЧыпсэтBy CPU
Памеры148 × 104mm
Колькасць ядраўBy CPU
Макс. хуткасцьBy CPU
Кэш L2By CPU
BIOSUEFI

Памяць

ТэхналогіяDDR3L 1333/1600MHz SDRAM
Макс.8GB
Socket1 × SO-DIMM

Графіка

КантролерBy CPU
VRAMShared Memory
VGA1 (Header)
HDMI2 (Support HDMI 1.4a)
МультыдысплейYes

Ethernet

Інтэрфейс10/100/1000Mbps
Кантролер2 × Realtek Gigabit LAN
Раз'ём2 × RJ-45

Аўдыё

КантролерRealtek HD Audio

Франтальны ўвод/вывад

Кнопка ўключэння1
LED1 × Power LED, 1 × HDD LED
USB2 × USB 3.0, 2 × USB 2.0

Задні I/O

USB2 × USB 3.0
Аўдыё2 (Mic-in, Line-out)
DC-IN1
HDMI2
Ethernet2

Носьбіт дадзеных

Макс. хуткасць перадачы даныхSATA 3.0 (6.0Gb/S)

Пашырэнне

mSATA1 × Full-length Mini PCIe for SSD
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
Mini-PCIe1 × Mini PCIe,Half-length Mini PCIe for Wi-Fi by Default, Full-length Mini PCIe for 4G

Унутраны раз'ём

Раздым VGA1, 2 × 5Pin, Pitch 2.0mm
Паслядоўны порт6, 2 × 5Pin, Pitch 2.0mm
RS-4851, COM2 Supports RS-485
SATA1 × SATA 3.0 (6.0Gb/S), 1, Only for Core i5/i7 (Option)
Раздым сілкавання SATA1,1 × 4Pin, Pitch PH2.0mm
Слот SIM1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
Раз'ём GPIO1, 2 × 5Pin, Pitch 2.0mm
Раздым USB 2.02, 2 × 5Pin, Pitch 2.54mm
Раз'ём франтальнай панэлі1, 2 × 5Pin, Pitch 2.0mm
Раздым дынамікаў1, 2 × 5Pin, Pitch 2.54mm
Раздым сілкавання1, 1 × 2Pin, Pitch 2.5mm (Option)

Таймер watchdog

ВыхадFrom Super I/O to Drag RESETCON#
Інтэрвал256 egments,0,1,2,3,,,255 sec/min

Сілкаванне

Уваходная магутнасць12V DC in, 5.5mm/2.5mm

Умовы эксплуатацыі

Рабочая тэмпература0-50℃

Аксесуары

АксесуарыCable for HDD, Cable for Serial Port

Падтрымка АС

АСWindows 7, Windows 10, Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1
  • COM Extension Cable × 6
  • VGA Extension Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB3U267-0411 Haswell Celeron 2955U 2 / 2 1.4GHz 2M Intel HD Graphics 15W
MB3U267-0431 Haswell Core i3 4005U 2 / 4 1.7GHz 3M Intel HD 4400 15W
MB3U267-0451 Haswell Core i5 4200U 2 / 4 1.6GHz ~ 2.6GHz 3M Intel HD 4400 15W
MB3U267-0471 Haswell Core i7 4500U 2 / 4 1.8GHz ~ 3.0GHz 4M Intel HD 4400 15W
MB3U267-0432 Haswell Core i3 4010Y 2 / 4 1.3GHz 3M Intel HD 4200 11.5W
MB3U267-0452 Haswell Core i5 4200Y 2 / 4 1.4GHz ~ 1.9GHz 3M Intel HD 4200 11.5W
MB3U267-0511 Broadwell Celeron 3205U 2 / 2 1.5GHz 2M Intel HD Graphics 15W
MB3U267-0512 Broadwell Celeron 3215U 2 / 2 1.7GHz 2M Intel HD Graphics 15W
MB3U267-0521 Broadwell Pentium 3805U 2 / 2 1.9GHz 2M Intel HD Graphics 15W
MB3U267-0531 Broadwell Core i3 5005U 2 / 4 2.0GHz 3M Intel HD 5500 15W
MB3U267-0551 Broadwell Core i5 5200U 2 / 4 2.2GHz ~ 2.7GHz 3M Intel HD 5500 15W
MB3U267-0571 Broadwell Core i7 5500U 2 / 4 2.4GHz ~ 3.0GHz 4M Intel HD 5500 15W
