Mini-rekenaar Q30600PV S02-reeks

Model: Q30600PV-S02

Total LAN2
LAN Speed1G RJ45
Serial Ports3

Key Specs

CPU
Skylake / Kaby Lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
2
Storage
M.2 Mkey, SATA

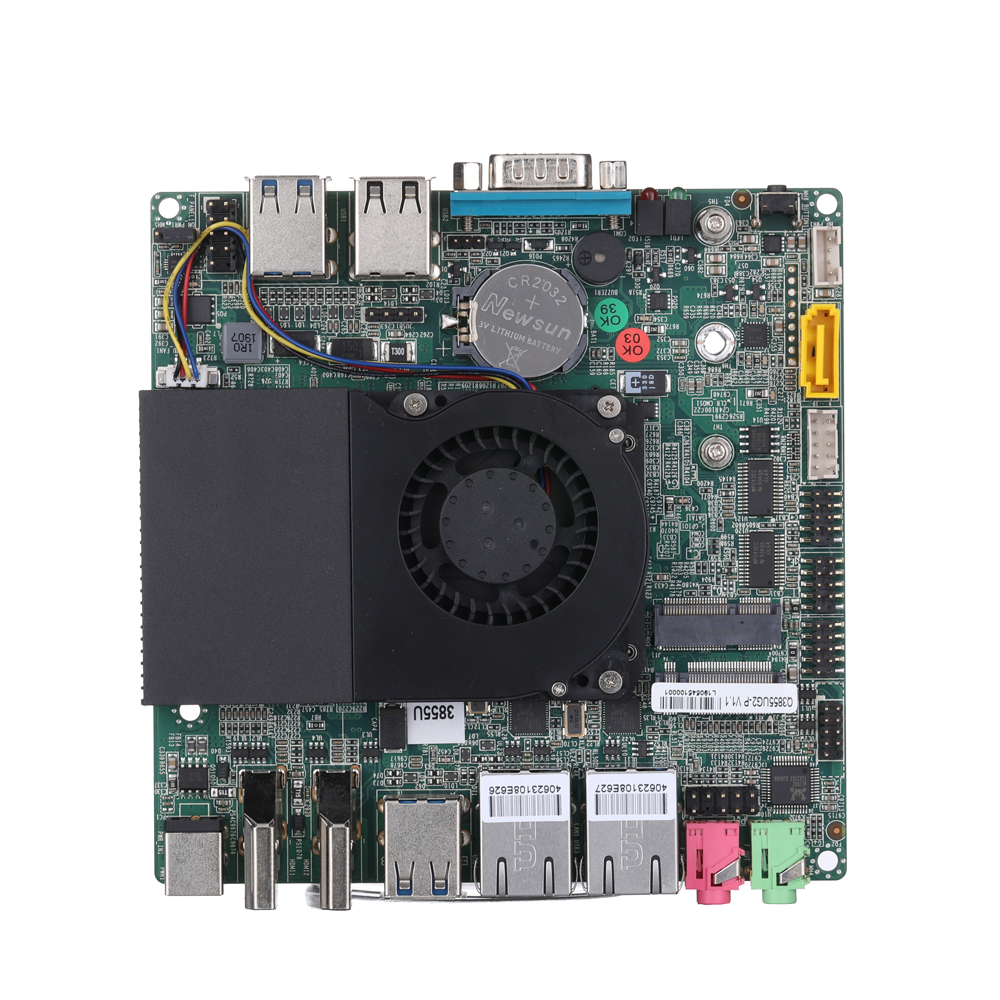

Based on Motherboard

MB2U247-0600

MB2U247-0600

View motherboard →

Q510PVQ520PVQ530PVQ550PVQ570PVQ515PVQ525PVQ535PVQ555PVQ575PVQ30611PVQ30612PVQ30631PVQ30651PVQ30671PVQ30711PVQ30712PVQ30731PVQ30751PVQ30771PVIntelSkylakeKaby LakeKaby Lake-RCeleronPentiumCore i3Core i5Core i73855U3955U4405U6006U6100U6200U6300U6500U6600U3865U3965U4415U7020U7100U7130U7200U7500U7560U7660U7600U

Main Features

  • Intel 6 th Skylake-U Processor
  • Intel 7 th Kabylake-U Processor
  • 2 × HDMI, 1 × VGA, 4 × RS-232
  • 4 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
  • 2 × M.2 Slot
  • 2 × Realtek Gigabit LAN

Verwerkerstelsel

SVE• Intel 6 th Skylake-U Processor • Intel 7 th Kabylake-U Processor
SVE-TDPBy CPU
Geheue1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
Skyfie-stelBy CPU
GrafikaBy CPU
LAN-skyfiestel2 × Realtek Gigabit LAN
KlankRealtek HD Audio
Watch DogYes

Voorste I/O

Kragknoppie1
LED1 × Power LED,1 × HDD LED
USB2 × USB 3.0,2 × USB 2.0
Seriëlepoort1 × RS-232 (COM1)
Klank0

Agterste I/O

Krag1 × DC Jack
Video-uitset2 × HDMI, 1 × VGA
LAN2 × Realtek Gigabit LAN
USB2 × USB 3.0
Klank1 × Mic-in, 1 × Line-out
Seriëlepoort1 × RS-232

Berging

Tipe1 × 2.5-inch HDD/SSD 1 × M.2 S lot for SSD (M key, Type:2280)

Uitbreiding

M.21 × M.2 for SSD (M key, Type:2280)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
SIM-kaartsleuf0
Outostart-jumperYes,1 × 3Pin, Pitch 2.54mm
CMOS-skoonmaakjumperYes,1 × 3Pin, Pitch 2.0mm
VGA0
GPIO1,2 × 5Pin, Pitch 2.0mm
RS-4850

Krag

Kragaansluiting12V4A
GS-aansluiting5.5mm, 2.5mm

Omgewings

Werktemperatuur0°C~50°C
Nie-werkingstemp-20°C~80°C
Humiditeit10%~90%

Megaanies

MateriaalAluminium Alloy
Afmeting134 × 127 × 46mm
Gewig0.72kg
MonteringVESA Mounting Bracket
Verpakkingsafmetings261 × 218 × 75mm
Kensington-sluitingSupport
VerkoelingsmodusWith Fan

OS Ondersteuning

OSWindows 10, Linux Windows 7 (O nly for 6th Gen Skylake)

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q30611PV-S02 Q510PV Skylake Celeron 3855U 2 / 2 1.6GHz 2M Intel HD 510 15W
Q30612PV-S02 Q520PV Skylake Celeron 3955U 2 / 2 2.0GHz 2M Intel HD 510 15W
Q30631PV-S02 Q530PV Skylake Core i3 6100U 2 / 4 2.3GHz 3M Intel HD 520 15W
Q30651PV-S02 Q550PV Skylake Core i5 6200U 2 / 4 2.3GHz ~ 2.8GHz 3M Intel HD 520 15W
Q30671PV-S02 Q570PV Skylake Core i7 6500U 2 / 4 2.5GHz ~ 3.1GHz 4M Intel HD 520 15W
Q30711PV-S02 Q515PV Kaby Lake Celeron 3865U 2 / 2 1.8GHz 2M Intel HD 610 15W
Q30712PV-S02 Q525PV Kaby Lake Celeron 3965U 2 / 2 2.2GHz 2M Intel HD 610 15W
Q30731PV-S02 Q535PV Kaby Lake Core i3 7100U 2 / 4 2.4GHz 3M Intel HD 620 15W
Q30751PV-S02 Q555PV Kaby Lake Core i5 7200U 2 / 4 2.5GHz ~ 3.1GHz 3M Intel HD 620 15W
Q30771PV-S02 Q575PV Kaby Lake Core i7 7500U 2 / 4 2.7GHz ~ 3.5GHz 4M Intel HD 620 15W
