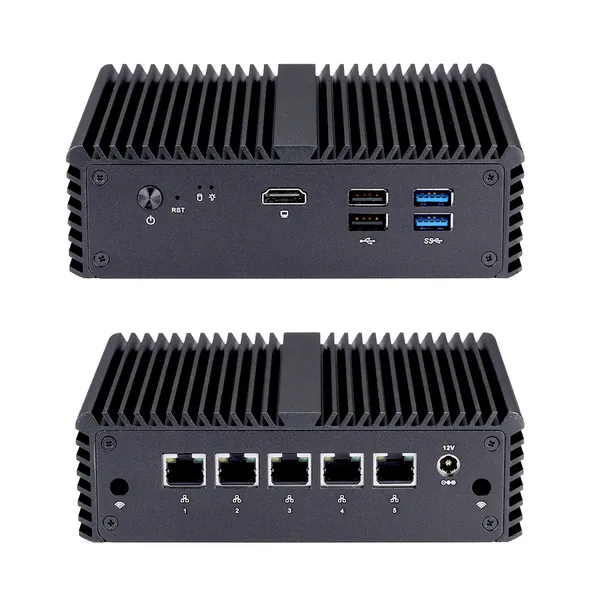

Q10500G5-S08 image 11 / 8

Mini-rekenaar Q10500G5 S08-reeks

Model: Q10500G5-S08

Total LAN5
LAN Speed2.5G RJ45

Key Specs

CPU
Gemini Lake / Gemini Lake-R
Memory
DDR4 SO-DIMM · Max 16GB
LAN
5
Storage
mSATA, SATA

Based on Motherboard

MB2J513-0500

MB2J513-0500

View motherboard →

Q720G5Q730G5Q740G5Q750G5Q10511G5Q10512G5Q10521G5Q10612G5Q10621G5IntelGemini LakeGemini Lake-RPentiumCeleronATOMN4000N4100J4005J4105N5000J5005N4020N4120J4025J4125N5030J5040

Main Features

  • Intel Gemini Lake Processor
  • Intel Gemini Lake-R Processor
  • 1 × HDMI,1 × SATA 3 0
  • 2 × USB 3.0, 2 × USB 2.0
  • 1 × M.2, 1 × mSATA, 1 × Mini PCIe
  • 5 × Intel I225-V/I226-V 2.5G LAN

Verwerkerstelsel

SVE• Intel Gemini Lake Processor • Intel Gemini Lake-R Processor
SVE-TDPBy CPU
Geheue1 × DDR4 SO-DIMM Socket (Up to 16G) Only Supports a Single 1G Memory Chip
Skyfie-stelBy CPU
GrafikaBy CPU
LAN-skyfiestel5 × Intel I225-V/I226-V 2.5G LAN
KlankNo
Watch DogYes

Voorste I/O

Kragknoppie1
LED1 × Power LED,1 × HDD LED
USB2 × USB 2.0,2 × USB 3.0
Herstelknoppie1
Video-uitset1 × HDMI

Agterste I/O

Krag1 × DC Jack
LAN5 × Intel I225-V/I226-V 2.5G LAN
LED1 × Power LED (Optional)

Berging

Tipe1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD

Uitbreiding

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi (Default Only Support USB Device)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
SIM-kaartsleuf1
Outostart-jumperYes,1 × 3Pin, Pitch 2.54mm
GPIO1,2 × 5Pin, Pitch 2.0mm
VGA0
CMOS-skoonmaakjumperYes,1 × 3Pin, Pitch 2.54mm

Krag

Kragaansluiting12V3A
GS-aansluiting5.5mm, 2.5mm

Omgewings

Werktemperatuur0°C~50°C
Nie-werkingstemp-20°C~80°C
Humiditeit10%~90%

Megaanies

MateriaalAluminium Alloy
Afmeting155 × 127 × 48mm
Gewig0.82kg
MonteringVESA Mounting Bracket
Verpakkingsafmetings261 × 218 × 75mm
Kensington-sluitingNo
VerkoelingsmodusFanless Design

OS Ondersteuning

OSWindows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPLegacy ModelDatasheet
Q10511G5-S08 Gemini Lake Celeron J4005 2 / 2 2.0GHz ~ 2.7GHz 4M Intel UHD Graphics 600 10W -
Q10512G5-S08 Gemini Lake Celeron N4000 2 / 2 1.1GHz ~ 2.6GHz 4M Intel UHD Graphics 600 6W -
Q10521G5-S08 Gemini Lake Celeron J4105 4 / 4 1.5GHz ~ 2.5GHz 4M Intel UHD Graphics 600 10W Q730G5
Q10612G5-S08 Gemini Lake Refresh Celeron N4020 2 / 2 1.1GHz ~ 2.8GHz 4M Intel UHD Graphics 600 6W -
Q10621G5-S08 Gemini Lake Refresh Celeron J4125 4 / 4 2.0GHz ~ 2.7GHz 4M Intel UHD Graphics 600 10W Q750G5
