Qotom
MB2U213-0300 image 11 / 8

Moederbord MB2U213-0300-reeks

Model: MB2U213-0300

Total LAN2
LAN Speed1G RJ45
Serial Ports1

Key Specs

CPU
Ivy Bridge
Memory
DDR3L SO-DIMM · Max 8GB
LAN
2
Storage
mSATA, SATA
Board Size
120x120

Products Using This Board (4)

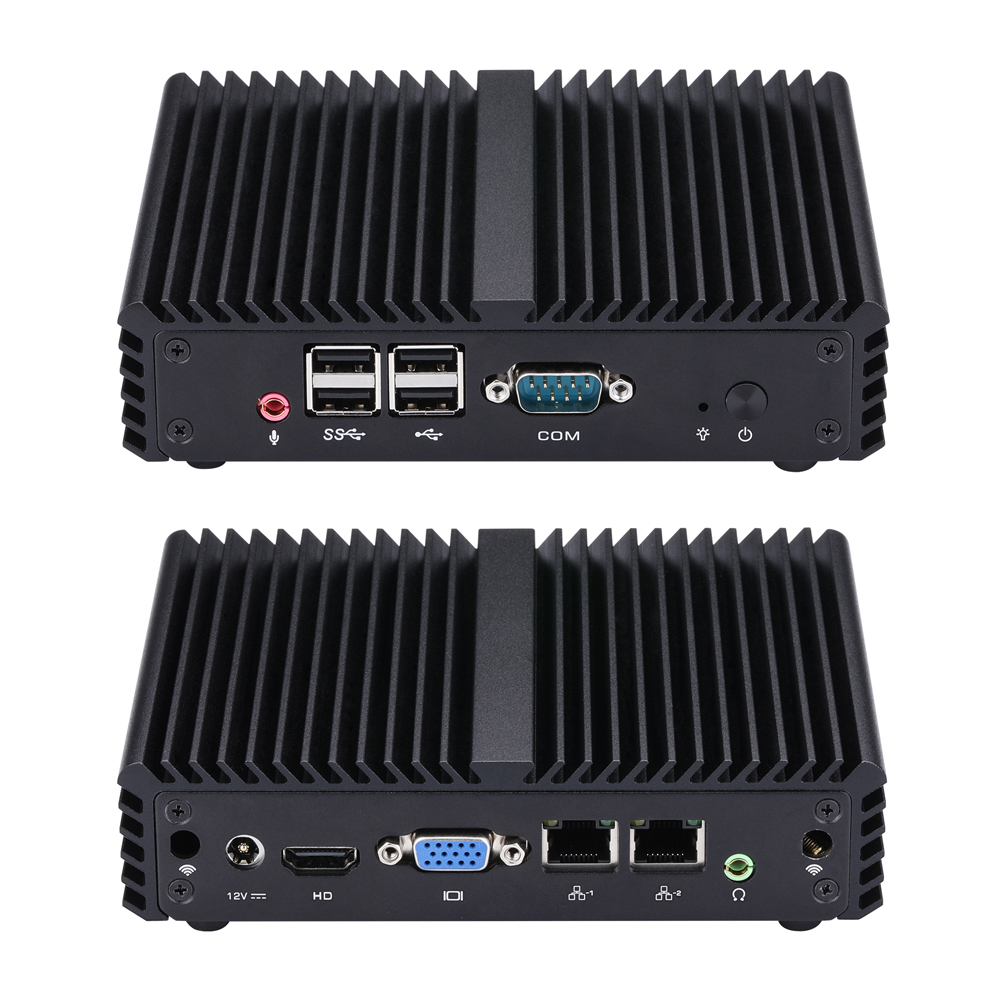

Q30300S-S07

Q30300S-S07

Basiese reeks

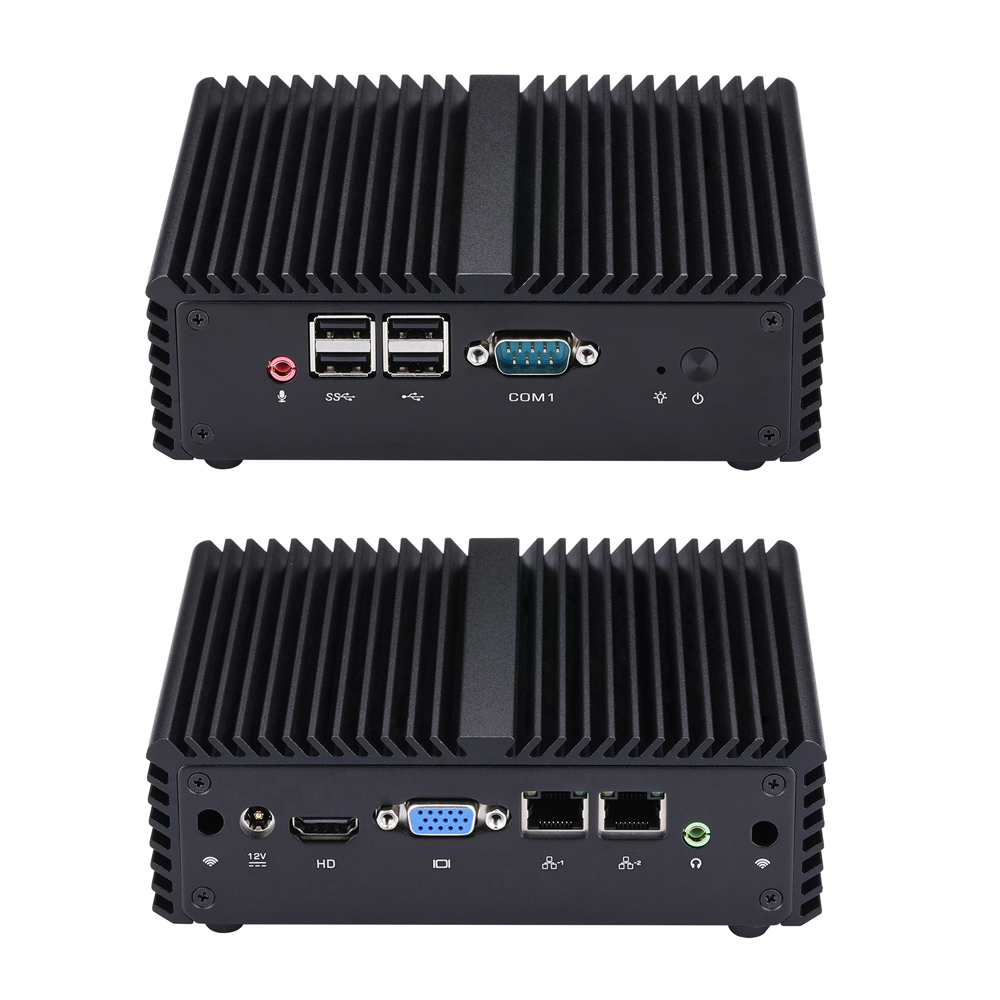

Q30300S-S08

Q30300S-S08

Basiese reeks

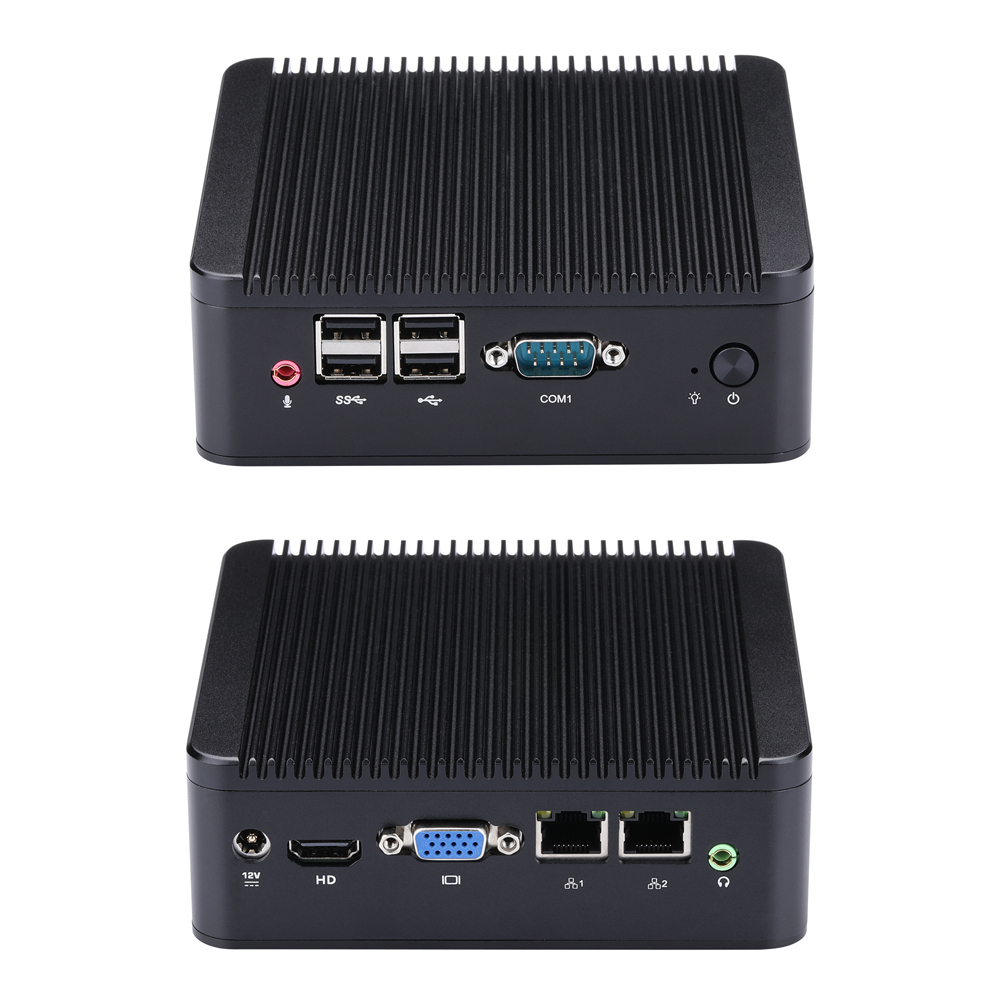

Q30300S-S02

Q30300S-S02

Basiese reeks

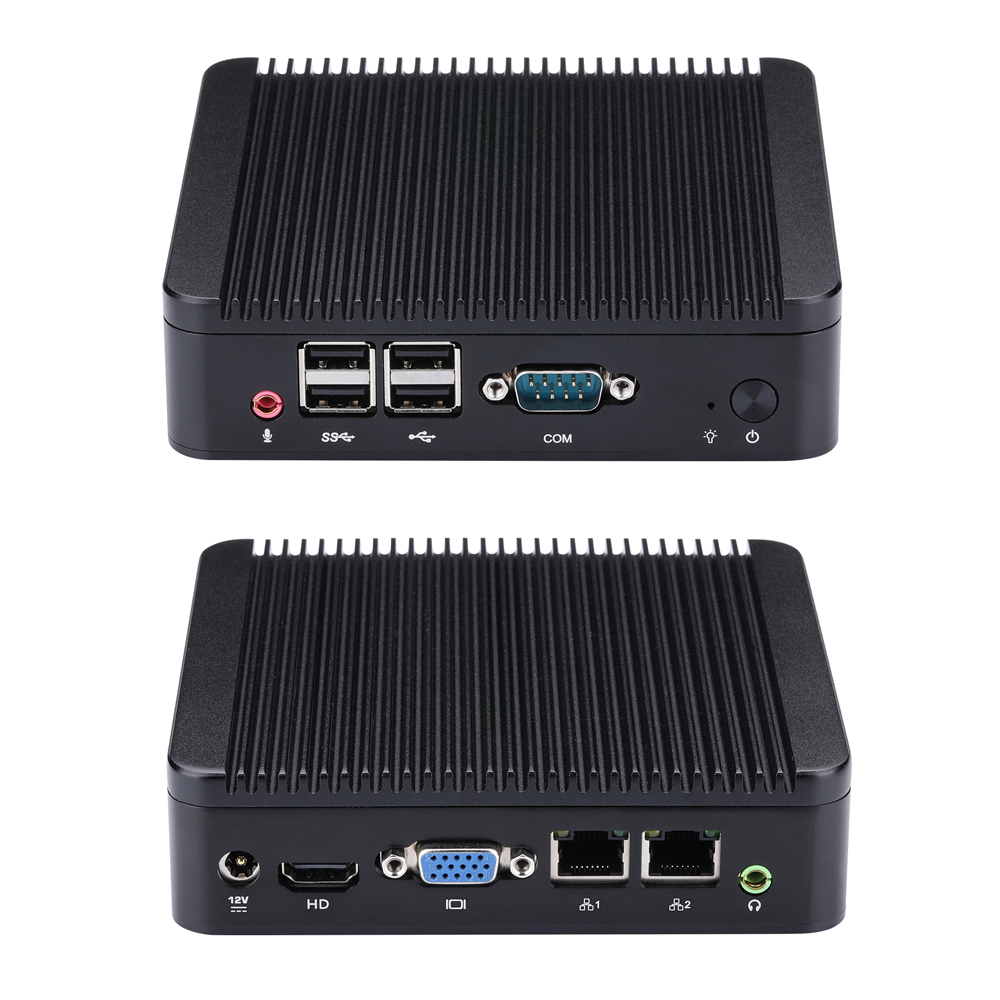

Q30300S-S01

Q30300S-S01

Basiese reeks

Q1007UG2-PQ1037UG2-PQ3217UG2-PQ3317UG2-PMB2U213-0311MB2U213-0312MB2U213-0331MB2U213-0351IntelIvy BridgeCeleronPentiumCore i3Core i5Core i71007U1017U1037U3217U3227U3317U3427U3337U3537U

Main Features

  • Intel 3 rd Ivy Bridge Processor
  • 1 × VGA, 1 × HDMI, 1 × RS-232
  • 4 × USB 2.0, 1 × SATA 3.0
  • 1 × Mini-PCIe, 1 × mSATA
  • 2 × Realtek Gigabit LAN

Verwerkerstelsel

SVEIntel 3 rd Ivy Bridge Processor
Skyfie-stelBy CPU
Afmeting120 × 120mm
Aantal kerneBy CPU
Maks. spoedBy CPU
L2-kasBy CPU
BIOSLegacy

Geheue

TegnologieDDR3 1333/1600MHz SDRAM
Maks.8GB
Sok1 × SO-DIMM

Grafika

BeheerderBy CPU
VRAMShared Memory
VGA1
LVDS1 (Option)
HDMI1
Multi-vertoningYes

Eternet

Koppelvlak10/100/1000Mbps
Beheerder2 × Realtek Gigabit LAN
Aansluiting2 × RJ-45

Klank

BeheerderRealtek HD Audio

Voorste I/O

Kragknoppie1
LED1 × Power LED
USB4 × USB 2.0
Seriëlepoort1 × RS-232
Klank1 (Mic-in)

Agterste I/O

Klank1 (Line-out)
GS-in1
VGA1
HDMI1
Eternet2

Berging

Maks. data-oordragspoedSATA 3.0 (6.0Gb/S)

Uitbreiding

mSATA1 × Full-length Mini PCIe for SSD
Mini-PCIe1 × Half-length Mini PCIe for Wi-Fi

Interne aansluiting

LVDS1, 2 × 15Pin, Pitch 1.0mm (Option)
VGA-penkop1, 2 × 5Pin, Pitch 2.0mm
SATA1, SATA 3.0 (6.0Gb/S)
SATA-kragaansluiting1, 1 × 4Pin, Pitch PH2.0mm
USB 2.0-penkop2, 2 × 5Pin, Pitch 2.54mm
Voorpaneel-koppelaar1, 2 × 5Pin, Pitch 2.54mm
Luidsprekerpenkop1, 2 × 5Pin, Pitch 2.54mm
Kragpenkop1, 1 × 2Pin, Pitch 2.5mm (Option)

Krag

Insetkrag12V DC in, 5.5mm/2.5mm

Omgewings

Werktemperatuur0-50 ℃

Toebehore

ToebehoreCable for HDD

OS Ondersteuning

OSWindows XP, Windows 7,Windows 10, Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB2U213-0311 Q1007UG2-P Ivy Bridge Celeron 1007U 2 / 2 1.5GHz 2M Intel HD Graphics 17W
MB2U213-0312 Q1037UG2-P Ivy Bridge Celeron 1037U 2 / 2 1.8GHz 2M Intel HD Graphics 17W
MB2U213-0331 Q3217UG2-P Ivy Bridge Core i3 3217U 2 / 4 1.8GHz 3M Intel HD Graphics 4000 17W
MB2U213-0351 Q3317UG2-P Ivy Bridge Core i5 3317U 2 / 4 1.7GHz ~ 2.6GHz 3M Intel HD Graphics 4000 17W
